Wenmeice DT-1600 Infrared Thermometer 50:1 optics Dual Laser
You may also like
Whether you are diagnosing electrical panels, monitoring kiln temperatures, or checking automotive exhaust systems, the DT-1600 provides the precision and safety required for high-heat environments up to 750°C (1382°F).
Key Features & Benefits
-

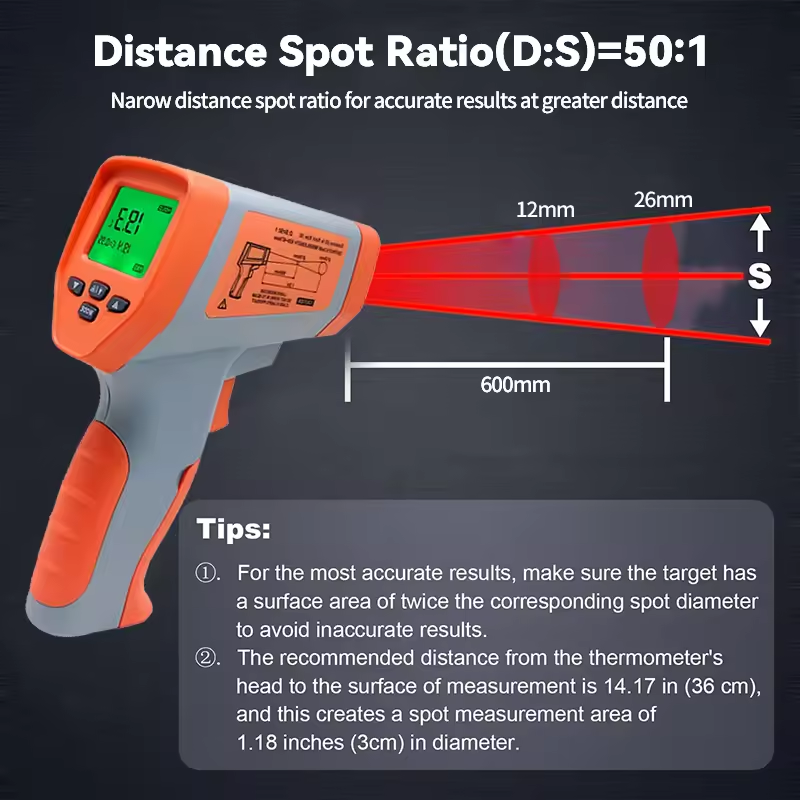

Superior 50:1 Optics: The high-performance lens allows you to measure a 1-inch target from 50 inches away. This ensures safety when measuring extremely hot or moving objects and improves accuracy by avoiding background heat interference.
-
Dual Laser Targeting: Unlike single-laser units that only show the center, our Dual Laser system indicates the outer diameter of the measurement spot, so you know exactly what area you are capturing.
-
Wide Temperature Range: Capable of measuring from -50°C to 750°C (-58°F to 1382°F), making it ideal for automotive, electrical maintenance, and industrial heating applications.
-

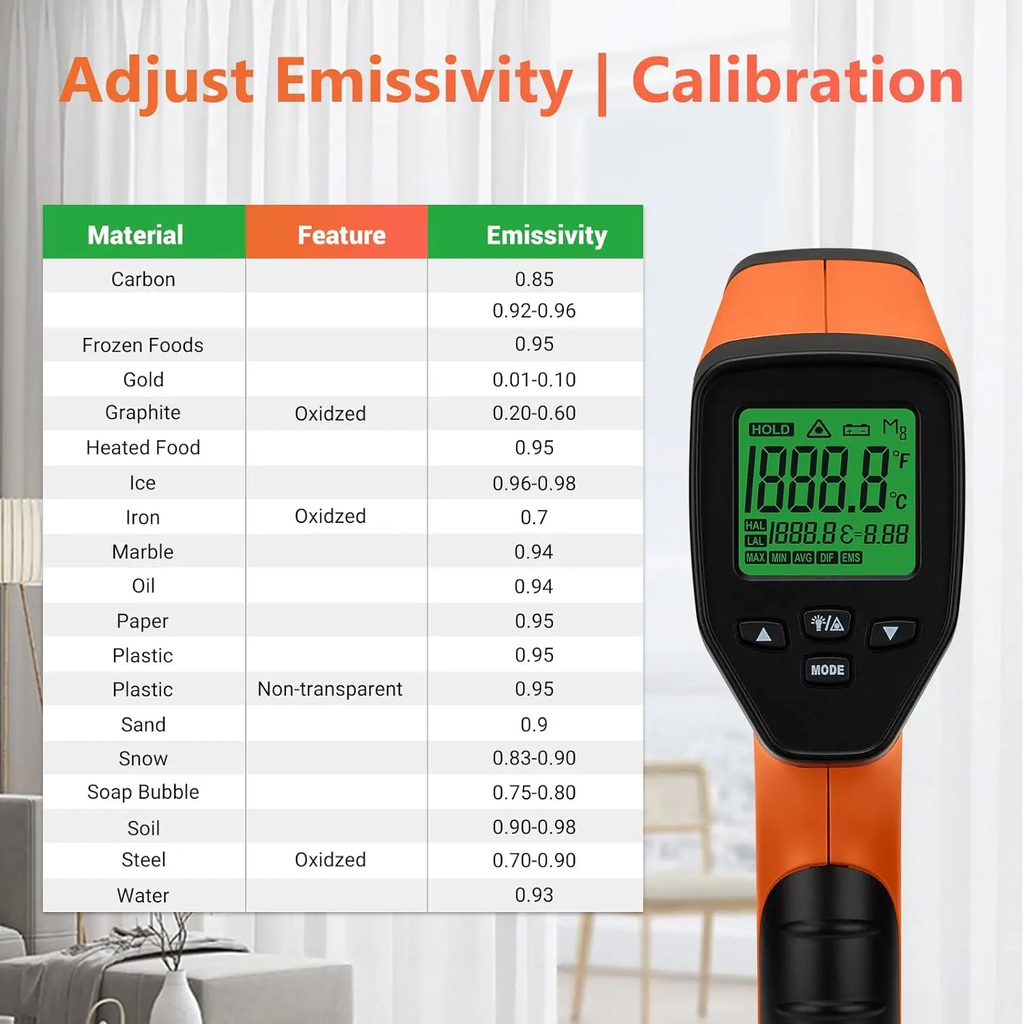

Adjustable Emissivity (0.10 – 1.00): Customize the thermometer to read specific surfaces accurately—from shiny metals to matte surfaces—ensuring precise data regardless of the material.
-

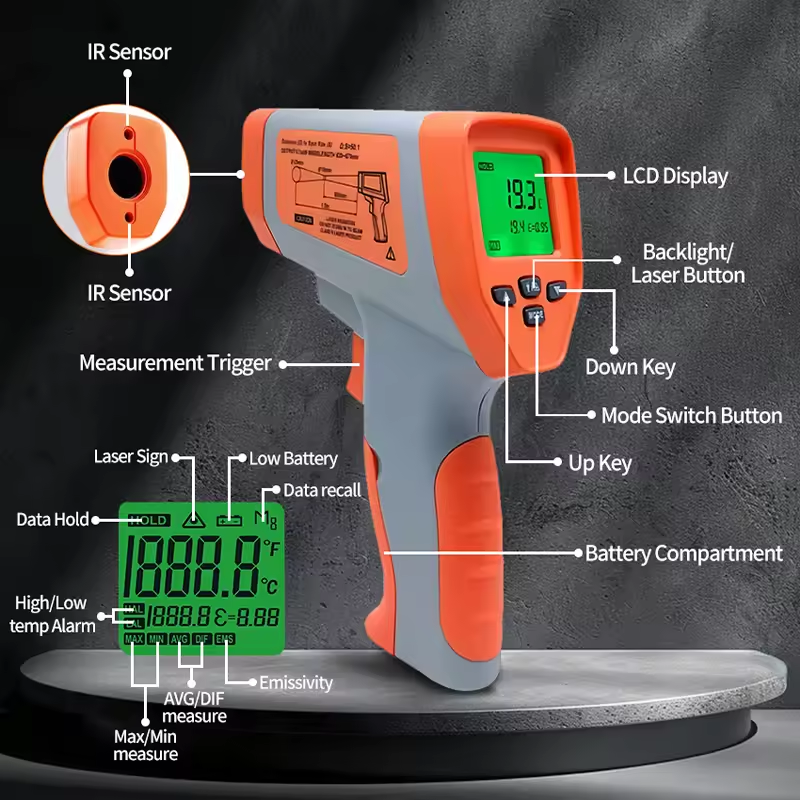

Comprehensive Data Analysis: Packed with professional features including High/Low Alarms, MAX/MIN/AVG/DIF calculations, and Data Hold to simplify reporting and analysis.
Technical Specifications
|
Feature |
Specification |
|---|---|
|
Model |
DT-1600 |
|
Temperature Range |
-50°C to 750°C / -58°F to 1382°F |
|
Distance-to-Spot Ratio |
50:1 |
|
Accuracy |
±1.5 % of reading or ±1.5 °C (whichever is greater) |
|
Resolution |
0.1°C / 0.1°F |
|
Emissivity |
Adjustable 0.10 ~ 1.00 |
|
Response Time |
< 500ms (95% response) |
|
Targeting |
Dual Laser Points (indicates measurement diameter) |
|
Spectral Response |
8 ~ 14 um |
|
Functions |
Max/Min/Avg/Dif, High/Low Alarm, Data Hold, Backlight |
|
Power |
1x 9V Battery (Included) |
Essential for Maintenance & Safety
The DT-1600 is an indispensable tool for preventative maintenance (PM) programs and hazardous environment monitoring.
