Teren SDP Smart Differential Pressure Gauge/Transmitter/Switch

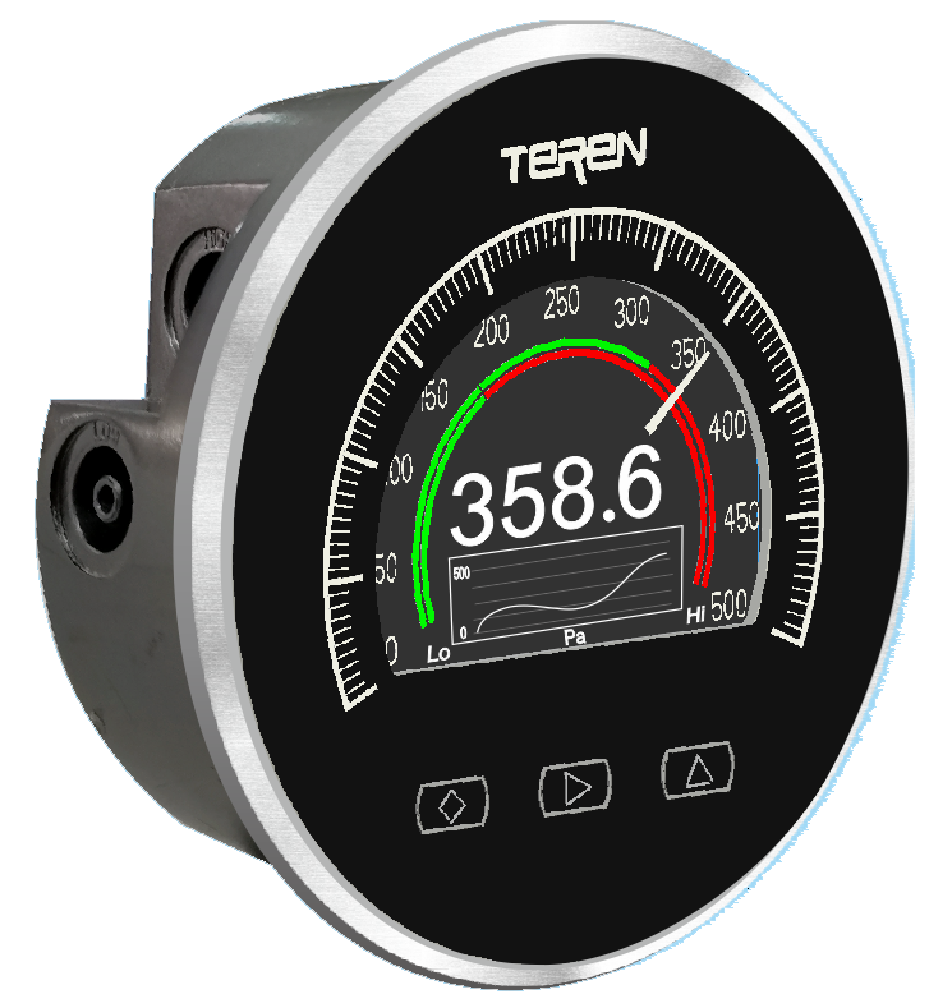

The Teren SDP Smart Differential Pressure Gauge/Transmitter/Switch is a versatile device that combines differential pressure detection, display, output, and alarm control. It features a color TFT-LCD that integrates a traditional pointer with a digital display and add a local historic trend/chart.

This device measures positive, negative, or differential pressure and is suitable for monitoring system pressure in various applications, including fans, blowers, filters, and clean room environments.

It offers optional relays for alarm settings and has a slim design for surface, panel, or flush mounting. The size is a drop-in replacement for traditional analogue gauges. Users can select from multiple ranges, outputs, alarm functions, and engineering units.

Key features include accurate measurement, even at low ranges (as low as 25 Pa), function keys for easy setup, and a color display that shows measured values, alarm status, and trend charts.

Key Features:

• Combines pressure measurement, display, output, and alarm control
• Color TFT-LCD integrates pointer and digital display
• Measures positive, negative, or differential pressure
• Suitable for fans, filters, clean rooms, and more
• Optional relays for alarm settings
• Slim design for flexible mounting
• Selectable ranges, outputs, and units
• Accurate measurement, even at 25 Pa
• Function keys for easy setup
• Color display with various display formats

Technical Specifications:
