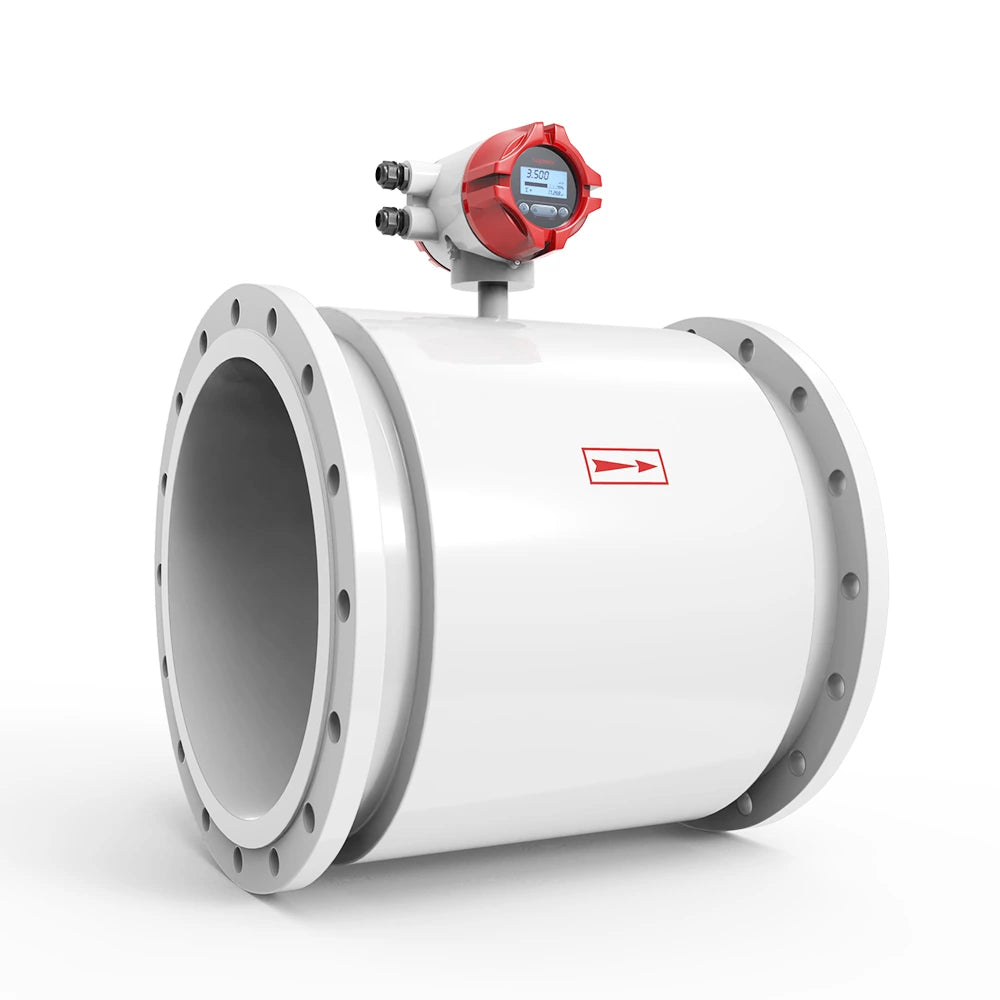

Supmea Magnetic Flowmeter FMC240-M1 (Compact style DN15~DN1000)
Product Resources
SKU:
IFM-EC-181-111
$1,440.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like
The FMC240 Electromagnetic Flow Meter from Supmea is a cutting-edge solution designed to provide accurate and reliable flow measurement across a wide range of industrial applications. With its advanced features, robust construction, and versatile configuration options, the FMC240 is the ideal choice for industries such as sewage treatment, printing and dyeing, chemical processing, environmental protection, metallurgy, medicine, papermaking, and tap water supply.
The most common variants have been listed. Larger sizes (upto DN1000), and special materials of construction (platinum electrodes etc) available on request.
Typical lead time is 3-weeks from time of order.
Key Features and Benefits:
- Unmatched Accuracy: The FMC240 boasts a high accuracy of ±0.5% F.S, ensuring precise flow measurement for critical processes.
- Bi-Directional Measurement: Measure fluid flow in both forward and reverse directions, providing flexibility in various applications.
- RS485 Modbus Communication: Seamlessly integrate the FMC240 into your existing industrial automation systems with RS485 Modbus communication.
- Flexible integration: Standard 4-20mA analog output and quantitative flow or PWM flow rate pulse output (square wave) enables easy integration with various control systems and data acquisition devices.
- No Moving Parts: The FMC240's electromagnetic design eliminates moving parts, ensuring long-term reliability and reducing maintenance requirements.
- Wide Range of Applications: The FMC240 is compatible with a variety of electrically conductive fluids, including aggressive acids, making it suitable for diverse industries.

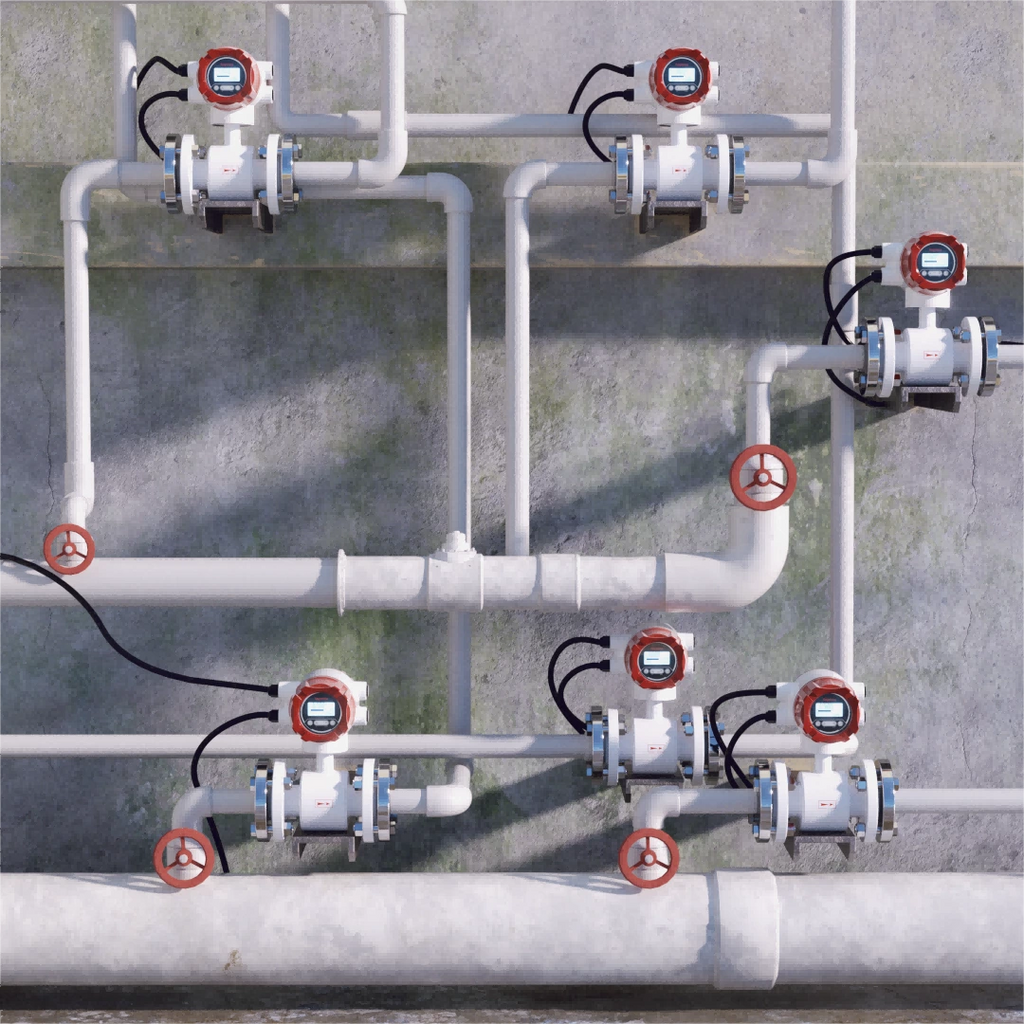

- Compact and Remote Configurations: Choose between compact and remote configurations to suit your specific installation needs.
- Customizable Options: The FMC240 offers a range of customizable options, including flange materials, electrode materials, and lining materials, to meet your specific application requirements.
Technical Specifications:
|
Feature
|
Specification |
| Construction Standard | JB/T9248-2015 |
| Measuring Principle | Faraday's law of electromagnetic induction |
| Nominal Diameter | DN10-DN1000 |
| Flange | In line with JB/T9248-2015 standard carbon steel (Optional stainless steel flanges), other standard flange can be customized |
| Pressure Rating | DN15-DN250, PN≤1.6MPa; DN300, PN≤1.0MPa (High pressure can be customized) |
| Lining Material | Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA |
| Electrode Material | 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt |
| Ingress Protection | IP65 for converter, IP68 for sensor |
| Medium Temperature | Neoprene: -10℃~70℃; Polyurethane: -10℃~60℃; PTFE/FEP: -10℃~120℃; PFA: -10℃~180℃ |
| Serial Communications | Modbus RS-485 |
| Output | Current (4~20 mA), pulse, frequency |
| Display Function | 2 measurement value pictures (measurements, condition, etc) |
| Language | English/Chinese |
| Max Measuring Error | Measurement value ±0.5% (Flow speed >0.5m/s); Measurement value ±0.5% ±2mm/s (Flow speed <0.5m/s) |
| Measurement Repeatability | ≤0.16% |
| Environment Temperature | -20℃ to 60℃ |
| Storage Temperature | -40℃ to 65℃ |
| Sensor Housing | Carbon steel, stainless steel 304, stainless steel 316L |
| Converter | Standard painted die-cast aluminum |
| Power Supply | 220VAC, 24VDC, 12VDC (Low power consumption) |
| Power Consumption | Max 15W, minimum 3W (12VDC power supply, suitable for solar power supply occasions) |
