Sansel HCAL 1104U Humidity and Temperature Calibration Chamber
Product Resources
SKU:
N/A
$25,000.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like

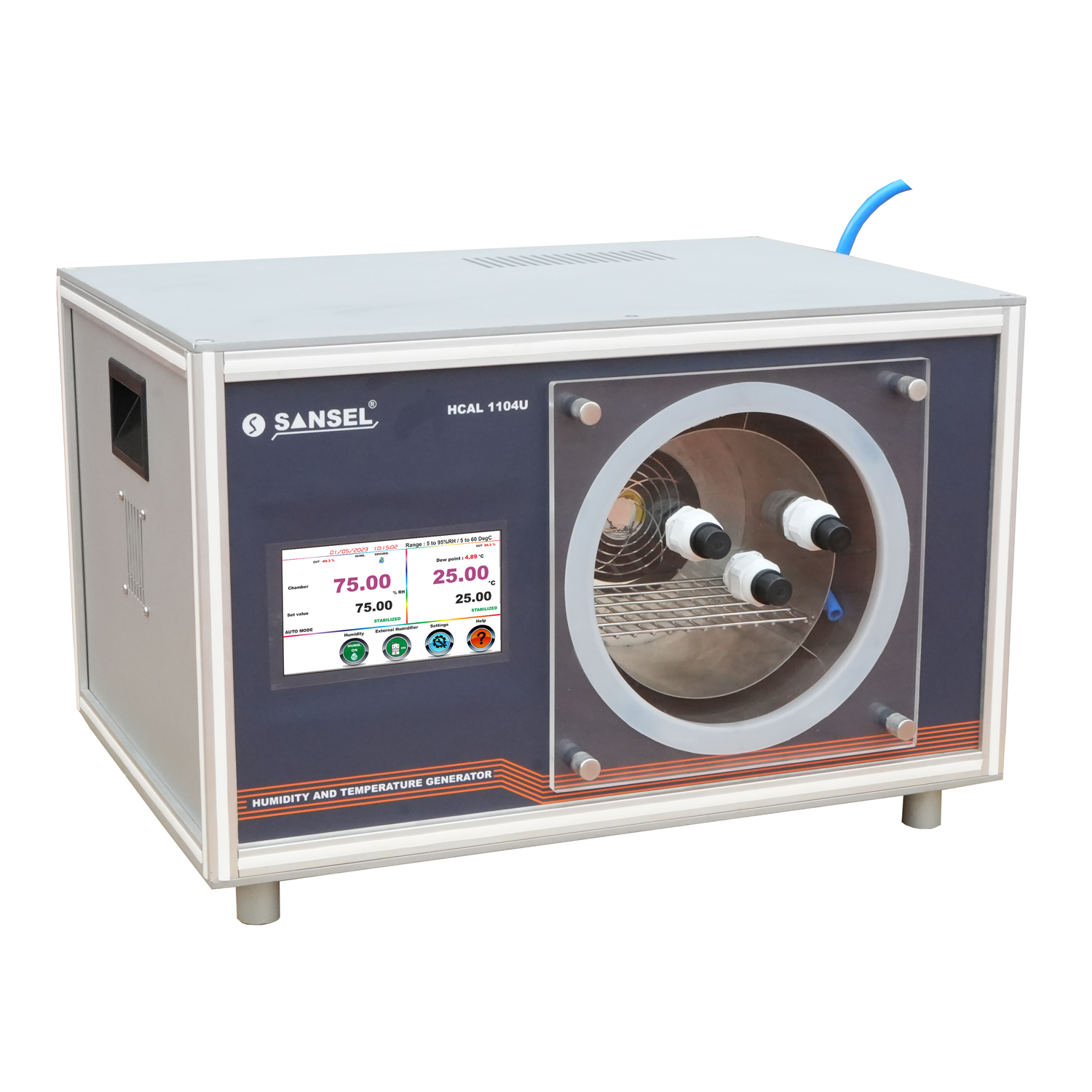

Achieve metrology-level performance and streamline your calibration workflow with the SANSEL HCAL 1104U. This precision generator provides a highly stable and uniform temperature and humidity environment, designed for laboratories and technicians who demand accuracy and efficiency. Its large chamber and flexible design make it the ideal solution for calibrating a wide array of sensors, transmitters, data loggers, and portable indicators.
Whether in the lab or in the field, the HCAL 1104U is a reliable platform for all humidity and air temperature calibration requirements.
Key Features & Benefits
-
Exceptional Control & Stability: Generate a wide range of conditions from 5 to 60°C and 3 to 95% RH. Solid-state Peltier technology and a mixed-flow generation method ensure superior chamber stability (Temp: ±0.1°C, Humidity: ±0.3% RH) and uniformity (Temp: ±0.2°C, Humidity: ±0.5% RH).
-
Intuitive Operation: A large 7" TFT touchscreen display provides clear, at-a-glance readings and easy control over all parameters. The measurement resolution is 0.01°C / 0.01% RH.
-
Increase Your Throughput: The spacious test chamber (230mm DIA x 170mm D) allows for the simultaneous calibration of multiple instruments.
-
Flexible & Adaptable Setup: The interchangeable acrylic front door comes standard with three PG21 gland ports for sensors and cables (13mm to 18mm). Additional doors can be ordered with your choice of hole size.
-

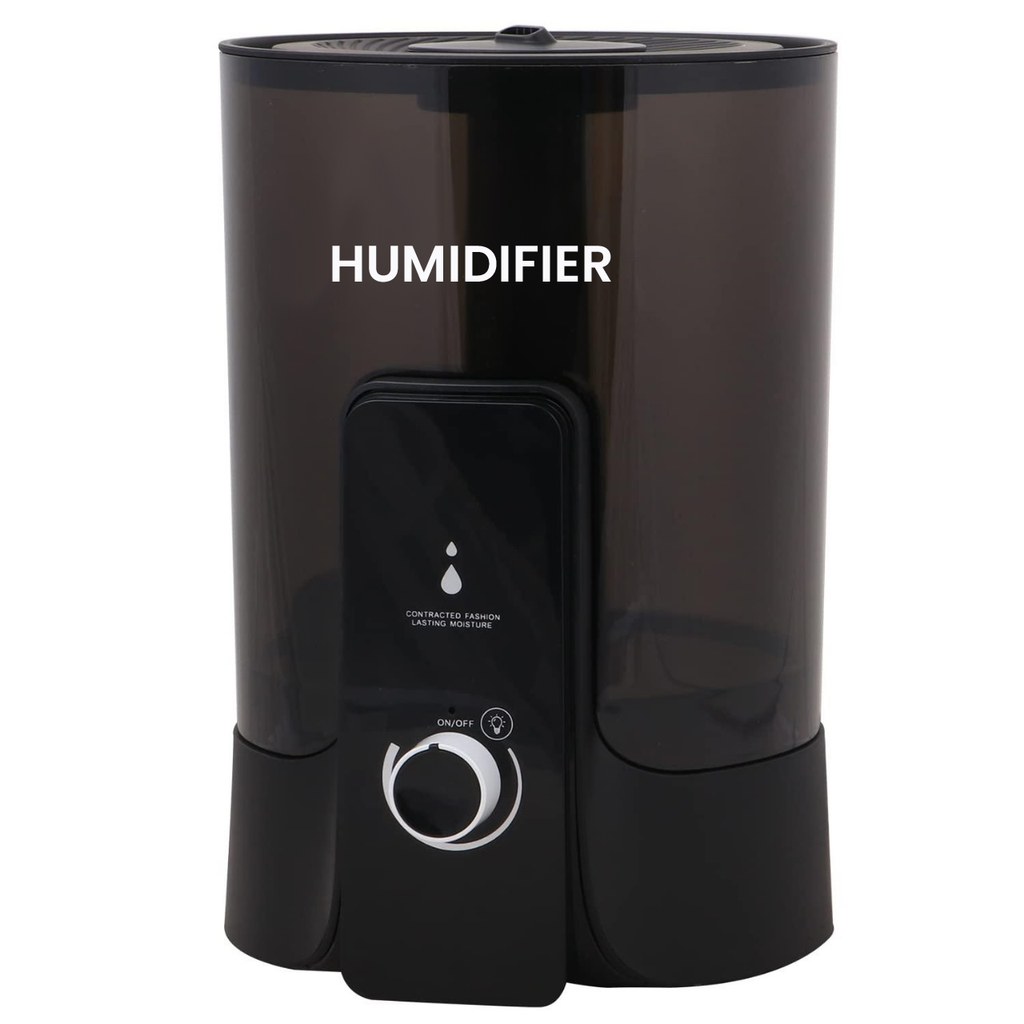

Engineered for Convenience: The external humidifier simplifies water refilling and maintenance, while the semi-portable design makes the unit suitable for both permanent lab installations and on-site calibration tasks.
Applications
The HCAL 1104U is the perfect solution for a variety of industries where precise environmental control is critical:
-
Calibration & Testing Laboratories
-
Pharmaceutical & Life Sciences
-
Industrial Sensor & Transmitter Manufacturing
-
Universities & Research Institutes
Technical Specifications
|
Specification |
Value |
|---|---|
|
Model |
HCAL 1104U |
|
Display |
7" True colour TFT LCD with Touchscreen |
|
Control Range |
5 to 60°C / 3 to 95% RH |
|
Dew Point Range |
-30°C to 45°C (Psychrometric Calculated) |
|
Resolution |
0.01°C / 0.01% RH |
|
Chamber Stability (@25°C) |
Temperature: ±0.1°C Humidity: ±0.3% RH |
|
Chamber Uniformity (@25°C) |
Temperature: ±0.2°C Humidity: ±0.5% RH |
|
Test Chamber Area |
230mm DIA x 170mm D (Approx.) |
|
Humidifier Liquid |
Distilled Water |
|
Power Supply |
230V AC ± 10% / 50Hz |
|
Dimensions (L x W x H) |
436mm x 676mm x 368mm (Approx.) |
|
Weight |
46 kg (without accessories) + 6 kg (standard accessories) |
What's Included (Standard Delivery)
-
HCAL 1104U Basic Instrument
-
External Humidifier System
-

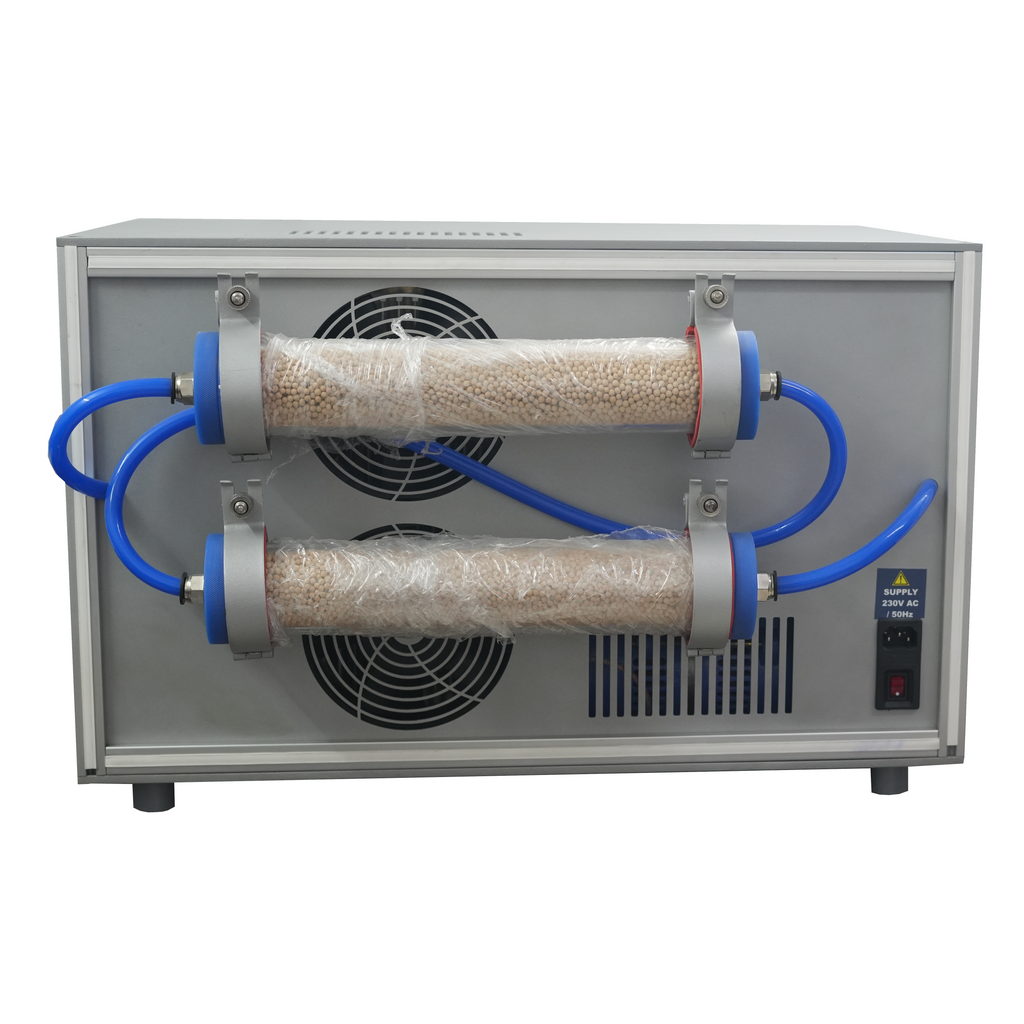

Desiccant Cells
-
Molecular Sieve Desiccant
-
Interchangeable Acrylic Door (Plain door & 3 port door)
-
Spare Fuses
-
Mains Power Cord
-
Instruction Manual
-
Traceable Calibration Certificate
Enhance Your Capabilities (Optional Accessories)
-
PC Interface Software: Automate your calibration process and generate professional reports with SANSELSOFT calibration software.
-
Master Hygrometer with Sensor: For high-accuracy reference measurements.
-
Custom Interchangeable Doors: We can provide doors with custom hole sizes and configurations for your specific needs.
-
Heavy-Duty Carrying Case: Protect your investment during transport for on-site calibrations.
-
Additional Molecular Sieve Desiccant
Let's Find Your Solution
We are committed to providing solutions that meet the evolving needs of your industry. If you have specific requirements or questions about how the HCAL 1104U can fit into your workflow, please contact us. Let's partner together to find the right calibration solution for you.
