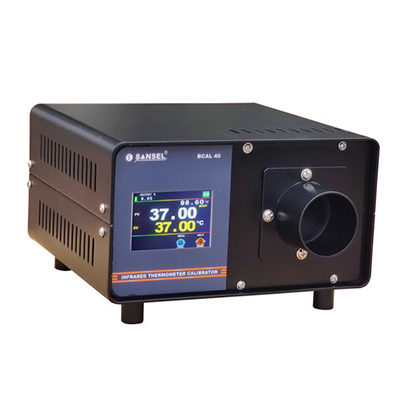

Sansel BCAL 40 Infrared Black Body Temperature Calibrator

Ensure the accuracy and reliability of your non-contact temperature measurement systems with the SANSEL BCAL 40 Black Body Calibrator. Specifically designed for verifying the performance of thermal imagers, infrared thermometers, and fever detection systems, the BCAL 40 provides a highly stable and accurate temperature source. Its dual-mode functionality makes it an essential tool for applications ranging from public health screenings to industrial process control.

This portable and rugged calibrator is a cost-effective solution for ensuring your temperature screening devices are performing to specification, providing confidence in critical measurements.

Key Features & Benefits

• Dual-Mode Calibration: Easily switch between Body Mode (20 to 50°C) for clinical and fever screening applications, and Surface Mode (0 to 100°C) for industrial IR thermometers.

• High Accuracy & Stability: Delivers exceptional stability of ±0.03°C and an accuracy better than ±0.3°C, ensuring reliable calibration results.

• Solid-State Heating & Cooling: Unlike heat-only units, the BCAL 40 utilizes solid-state technology to actively heat and cool the black body source, providing rapid stabilization (10 minutes) and consistent performance across varying ambient temperatures.

• Clear Touchscreen Interface: The 3.5" True Color TFT touchscreen provides a clear view of set and actual temperatures in both °C and °F simultaneously, along with control status and settings.

• Designed for Practical Use: The 25mm aperture and included extension tubes improve uniformity and minimize heat loss, making it easy to calibrate a wide variety of instruments.

• Portable and Rugged: Weighing only 3.7 kg and delivered with a carry bag, the BCAL 40 is built for both laboratory and on-site calibration tasks.

Applications

The BCAL 40 is an indispensable tool for organizations that rely on accurate non-contact temperature measurements:

• Hospitals, Clinics, and Public Health Organizations

• Airports, Transportation Hubs, and Public Venues

• Manufacturing and Industrial Facilities

• Calibration & Service Laboratories

Technical Specifications

What's Included (Standard Delivery)

• BCAL 40 Basic Instrument

• Small Extension Tube

• Large Extension Tube

• Carry Bag

• Mains Power Cord

• Spare Fuses

• Instruction Manual

• Traceable Calibration Certificate

Enhance Your Capabilities (Optional Accessories)

• Heavy-Duty Carrying Case: For added protection during transport and field use.
