PT100 Strap on Temperature Sensor Pair for Calorific Heat Metering

Unlock Heat Energy Measurement

Take your process monitoring to the next level with our PT100 Strap-On Temperature Sensor Pair. Designed as the perfect companion for the TUF-2000 series of ultrasonic flow meters, these sensors unlock the system's full potential by enabling accurate calorific heat metering. By precisely measuring the supply and return liquid temperatures, you can transform your flow meter into a comprehensive energy consumption monitor.

These high-accuracy sensors are engineered for professionals in HVAC, industrial processing, and building management who require reliable, non-invasive temperature data. Their robust design and simple installation provide a direct solution for retrofitting existing systems or integrating into new projects.

Key Features & Benefits

• Enable Heat Metering: The essential accessory to activate the calorific heat measurement function on TUF-2000 series flow meters.

• Non-Invasive Installation: The strap-on design allows for quick and easy mounting directly onto the exterior of your pipes, eliminating the need for system downtime, cutting, or welding.

• High Accuracy: Utilizes a PT100 platinum resistance element for precise and repeatable temperature readings, which is critical for accurate energy calculations.

• Wide Temperature Range: Rated for a temperature range of -30°C to 160°C, making it suitable for a wide variety of chilled water, hot water, and industrial fluid applications.

• Complete Solution: Supplied as a matched pair and includes a complimentary length of durable, 3-core silicone connecting cable to ensure a straightforward and reliable installation.

• Versatile Application: While optimized for the TUF-2000 series, these sensors can also be used as a standalone pair for any application requiring differential pipe temperature measurement with a PT100-compatible instrument.

Typical Applications

• HVAC Systems: Monitor the energy efficiency of heating and cooling circuits.

• Building Energy Management: Accurately bill tenants or allocate costs based on actual energy usage.

• Industrial Process Control: Track energy consumption in process heating and cooling loops.

• Chilled Water Systems: Optimize the performance and efficiency of commercial chillers.

• Solar Thermal Installations: Measure the thermal energy generated and transferred.

Specifications

• Sensor Type: PT100 Platinum Resistance Thermometer

• Operating Temperature Range: -30°C to 160°C

• Mounting Method: Non-invasive Strap-On / Clamp-On

• Compatibility: TUF-2000 Series Ultrasonic Flow Meters and other PT100-compatible devices.

What's Included

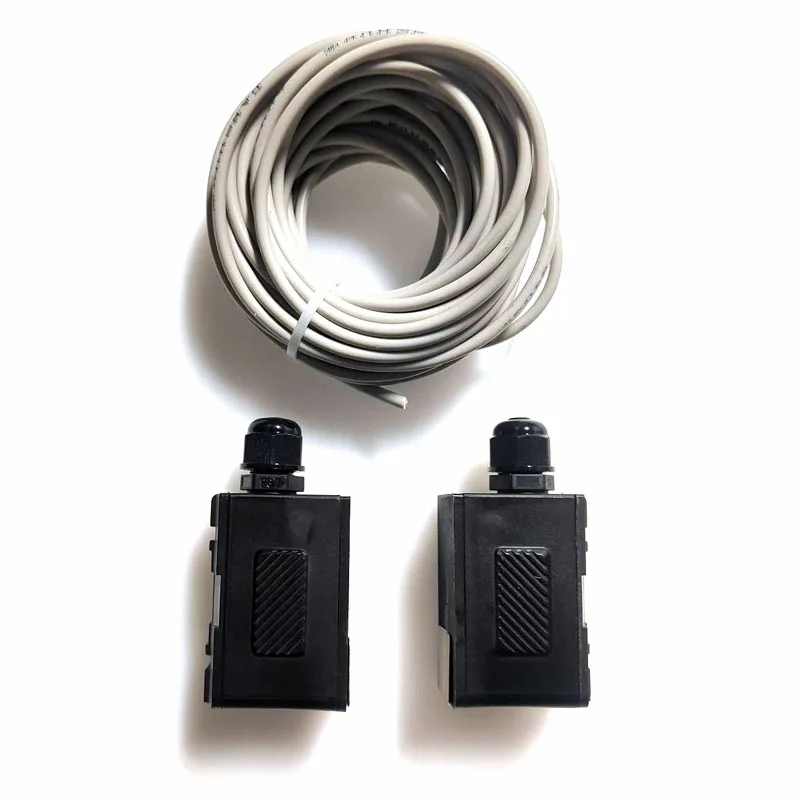

• 2 x PT100 Strap-On Temperature Sensors (1 Pair)

• 1 x Length of 3-Core Silicone Connecting Cable
