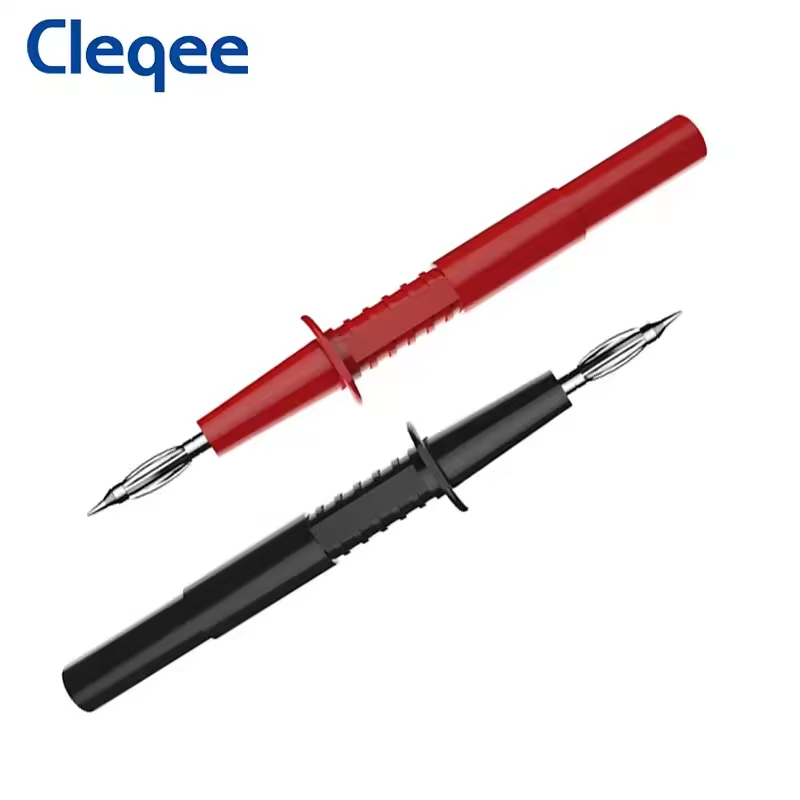

Cleeqe P5011 4mm Sharp Banana Multimeter Test Probe Set

Cleeqe P5011 4mm Sharp Banana Multimeter Test Probe Set

Product Resources

No resources available for this product.

$25.00
Quantity: 3  | Backorders available (ETA 3-weeks)

You may also like

Enhance your diagnostic capabilities with the P5011 Test Probe Adapter Set. Featuring a 4mm banana plug with sharp tipe and a standard safety rear 4mm socket, this product allows for seamless connection between multimeters, safety leads, and industrial testing equipment. Whether for vehicle maintenance or complex industrial electrical testing, these probes provide the secure, low-resistance connections required for accurate measurement.

Key Features & Benefits

  • Versatile Dual-Ended Connectivity: Uniquely designed with a 4mm male banana plug tip and a rear 4mm female socket. This "pass-through" design allows you to easily connect existing safety or bare banana plugs to the tail while inserting the tip into panel sockets or other 4mm compatible test points.

  • Robust Construction: Crafted from high-quality Polyamide (PA) housing and Nickel-plated Brass conductors, ensuring durability, wear resistance, and excellent signal transmission for consistent readings.

  • Universal Compatibility: Engineered to integrate smoothly with standard test probe multimeters and industrial instrumentation, making it an essential addition to any technician's toolkit.

  • Ideal for Harsh Environments: The durable molded shell offers protection and grip, making it suitable for automotive diagnostics, field troubleshooting, and bench testing.

Technical Specifications

Feature

Detail

Model

P5011

Interface Type

4mm Male Banana Plug (Tip) to 4mm Female Socket (Tail)

Conductor Material

Brass, Nickel-Plated

Insulation Material

High-Strength PA (Polyamide)

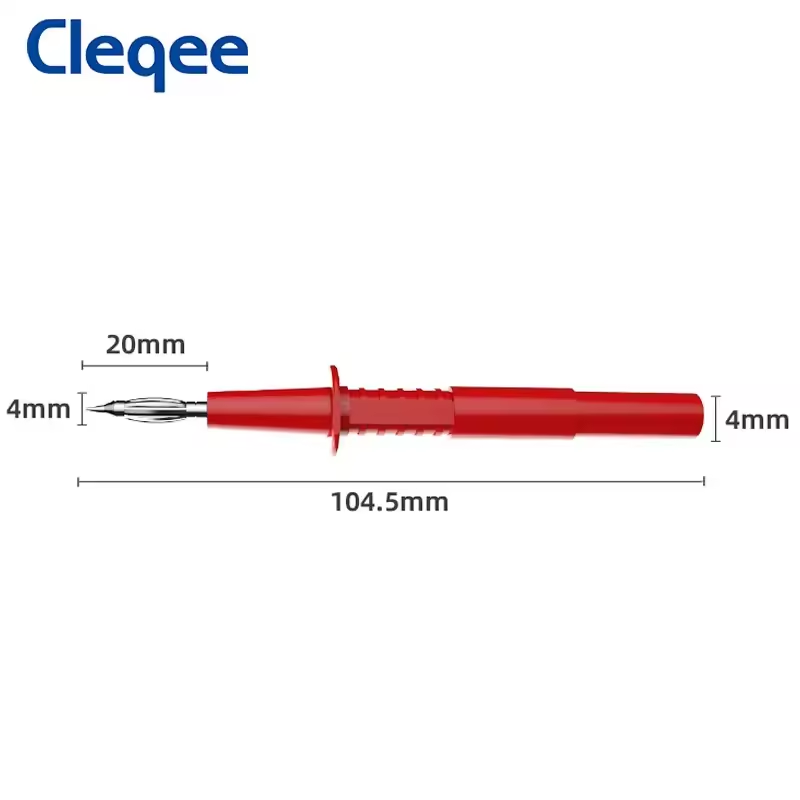

Total Length

Approx. 105mm

Tip Diameter

4mm

Rear Socket Diameter

4mm

Safety Rating

CAT III 1000V / 32A (Max)
