Niimbot C1 Heat-Shrink Tube Wire Marker Label Media

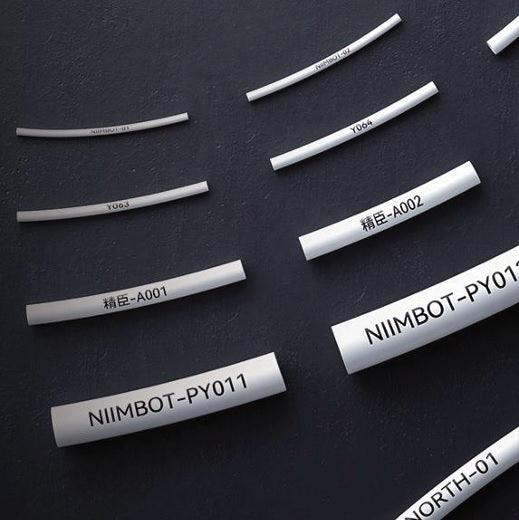

Niimbot C1 Polyolefin Heat-Shrink Tube Labels

A non-adhesive, 2:1 shrink-ratio wire & cable marking solution engineered for permanent, high-integrity physical tracking in industrial switchboards, motor control centers (MCCs), and harsh-environment telemetry panels. Designed for seamless calibration-free feeding through the Niimbot C1 smart wire marker printer.

This polyolefin heat-shrinkable tubing is fed as a continuous profile and cut on-demand to exact dimension by the Niimbot C1’s auto-rotary blade. Once heated with a standard heat gun, the sleeve shrinks tightly around the conductor, securing a permanent, abrasion-resistant, and high-dielectric marker that is physically locked in place for the operational lifespan of the asset.

Operational Consequences of Labeling Failure

1. Code Violations & AS/NZS 3000 Non-Compliance

Under local electrical installation standards, including the parent Australian/New Zealand wiring rules (AS/NZS 3000), clear and durable phase and conductor identification is a safety mandate. Using C1-optimized polyolefin sleeves ensures compliant, non-fading print density that satisfies the most stringent wire marking requirements.

2. Extended Diagnostic Latency & Phase Shifting

When a multi-core cable label falls off inside an active MCC, troubleshooting a phase fault or diagnostic signal requires manually "ringing out" the lines with a multimeter. Tracing a 40-core control cable manually introduces high labor overhead and risk of short circuits. These thermal transfer polyolefin sleeves retain crisp, 300 dpi print density under severe abrasion and solvent exposure, keeping legends fully readable over years of service.

3. Adhesive Migration & Environmental Contamination

In environments like food processing, petrochemical plants, and wastewater facilities, chemical vapors and moisture accelerate adhesive decay. The resulting sticky residue degrades adjacent terminal block plastics and fouls active electrical contacts. These heat-shrink sleeves utilize cross-linked, flame-retardant polyolefin to resist environmental attack, moisture, and chemical exposure without outgassing or weeping.

Materials Science & Geometrical Integrity

1. 2:1 Shrink Ratio Polyolefin

These labels are manufactured from high-grade, irradiation-crosslinked polyolefin. Upon applying heat (recommended shrink temperature of 90°C to 120°C), the tubing reduces uniformly to 50% of its supplied pre-shrunk diameter. This uniform shrink profile allows a single diameter to securely clamp a wide range of common conductor cross-sections, providing neat, low-profile wire tracking that easily fits inside narrow wire ducts and terminal blocks.

2. Optimized Thermal Transfer Print Surface

Direct thermal labels fail when exposed to the ambient heat of enclosed cabinets, turning black and unreadable. The C1 uses a thermal transfer process, melting a specialized carbon-based resin ribbon directly into the porous polyolefin structure. The result is a Grade-A, high-contrast print that resists oil, water, industrial cleaning solvents, alcohol, and constant mechanical rubbing during cable routing.

3. Continuous Roll Efficiency

Pre-cut markers force you to fit long alphanumeric strings onto fixed-width tags. The continuous roll design of these sleeves allows you to dictate exact segment lengths (from 10 mm to 100 mm) on-demand through the mobile or PC app interface. The C1 auto-cutter executes programmatic half-cuts between consecutive serialized numbers, giving you an organized, sequential string of tubes that you can peel off one by one at the terminal strip, preventing loose, disorganized tube piles.

Geometrical Mapping & Conductor Sizing Guide

To prevent sizing mismatching and guarantee tight physical locking, select the nominal pre-shrunk tubing diameter based on your conductor's finished outer diameter (OD) including insulation:

• 2.0 mm Pre-Shrunk Diameter (200-Meter Roll): Specifically sized for fine control wiring, instrumentation signal lines, and telecommunication pairs. Clamps down securely to 1.0 mm post-shrink, preventing slippage on thin wire gauges.
• 4.0 mm Pre-Shrunk Diameter (200-Meter Roll): The industrial switchboard workhorse. Optimized for standard 1.5 mm² and 2.5 mm² power and control conductors. Clamps down securely to 2.0 mm post-shrink.
• 6.0 mm Pre-Shrunk Diameter (100-Meter Roll): Engineered for larger multi-core patch leads, heavier power feeds, pneumatic tubes, and heavy-duty grounding cables. Clamps down securely to 3.0 mm post-shrink.

Technical Specifications

For further system integration metrics and regulatory profiles, please consult the companion documents NIIMBOT-C1_Brochure.pdf and C1 Webpage.pdf.
