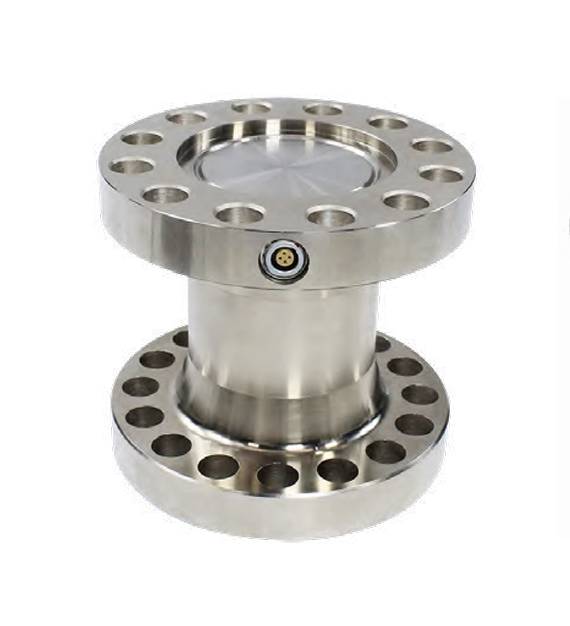

DYZ-015 Large Capacity Column Type Load Cell (30-2500 ton)
Product Resources
SKU:
INL-C-240-01
$1,850.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like
The DYZ-015 Column Type Load Cell is a robust and high-precision force sensor designed for heavy-duty weighing applications in various industrial settings. Its compact structure and high accuracy make it an ideal choice for a wide range of applications, including rail weighbridges, bucket scales, platform scales, and other electronic weighing equipment.
Key Features
- Robust Construction: The upper and lower flanges are fixed, ensuring a compact and stable structure.
- High Accuracy: Provides precise and reliable force measurements with good long-term stability.
- Durable Material: Made of high-quality alloy steel with nickel plating for enhanced durability and corrosion resistance.
- Versatile Applications: Suitable for various industries and applications, including rail weighbridges, bucket scales, and platform scales.
- Easy Installation: Designed for straightforward integration into various systems.
Technical Specifications
| Parameter | Value |
| Range | 0-2500T |
| Material | Alloy Steel |
| Output Sensitivity | 2.0mV/V |
| Impedance | 780Ω |
| Zero point output | 1%FS |
| Non-linearity | 0.2%FS |
| Hysteresis | 0.1%FS |
| Repeatability | 0.1%FS |
| Creep (30 min) | 0.1%FS |
| Temperature sensitivity drift | 0.05%F.S./10°C |
| Zero point Temperature drift | 0.05%F.S./10°C |
| Insulation Resistance | ≥5000MΩ/100VDC |
| Service voltage | 5-15V |
| Operating Temperature Range | -20-80°C |
| Safe overload | 120% |
| Extreme overload | 150% |
| Cable line specifications | Φ5x3m |
| Cable limit tension | 10kg |
| Response frequency | 10kHz |
Dimensions
