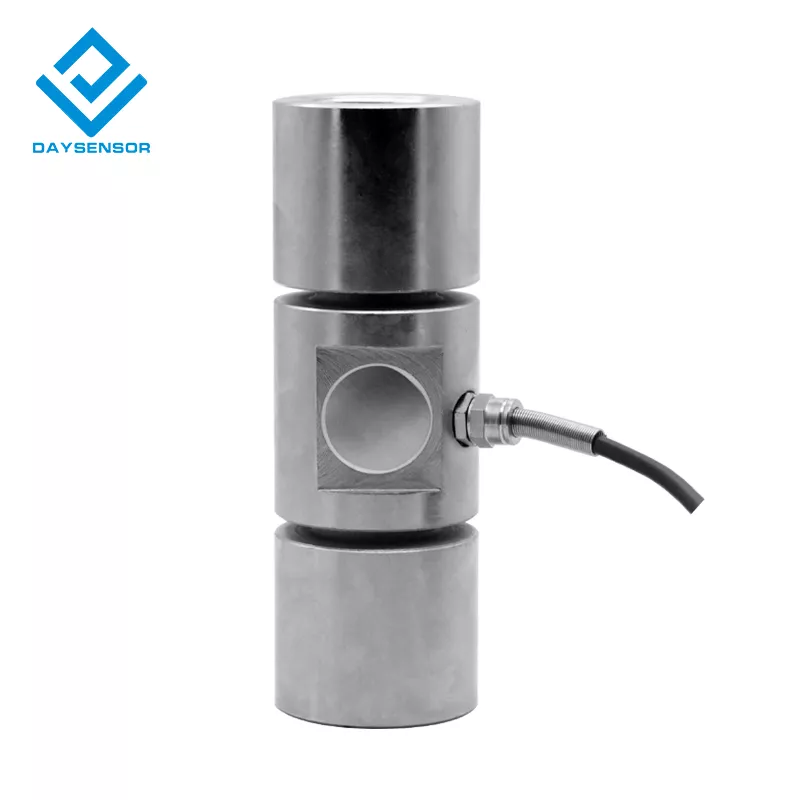

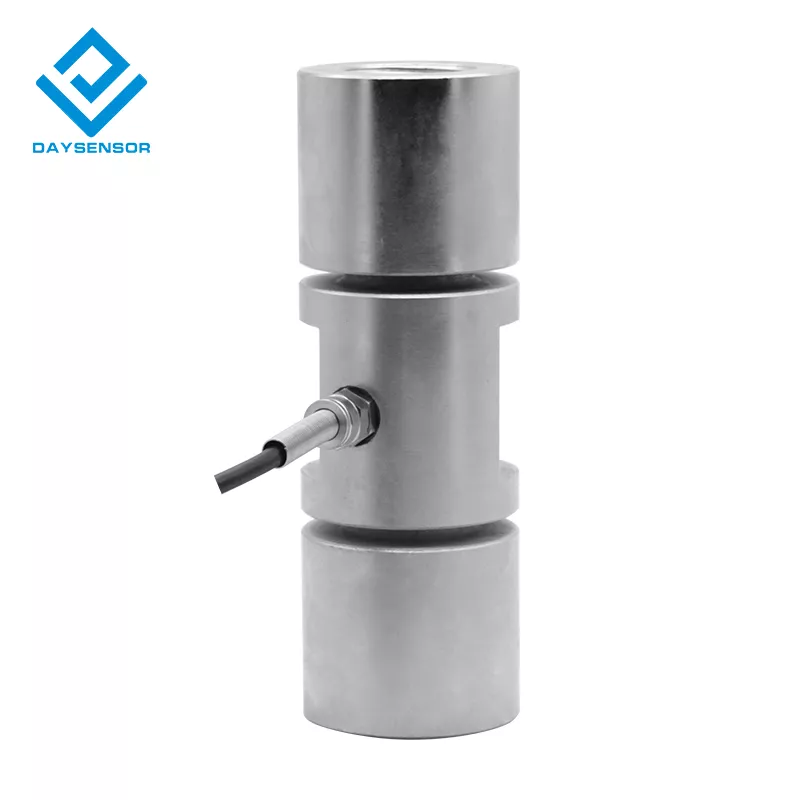

DYZ-014 Large Capacity Column Type Load Cell (20-100 ton)
Product Resources
SKU:
INL-C-239-1
$925.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like
The DYZ-014 Column Type Load Cell is a versatile and robust force sensor designed for various weighing applications in industrial settings. Its simple structure, high accuracy, and reliable performance make it an ideal choice for a wide range of applications, including electronic weighing equipment and pull pressure detection equipment.
Key Features:
- Simple Structure: Cost-effective and easy to integrate.
- High Accuracy: Provides precise and reliable force measurements.
- Durable Construction: Made of stainless steel for reliable performance in various environments.
- Versatile Applications: Suitable for various industries and applications, including pressure equipment, mobile phone assembly, and small pressure platforms.
- Improved Sealing: The sealing diaphragm design enhances sealing performance and prevents damage to the sensor shell.
Technical Specifications:
| Parameter | Value |
| Range | 0-30T |
| Material | Stainless Steel |
| Output Sensitivity | 1.0-2.0 ± 0.05 mV/V |
| Impedance | 350Ω |
| Zero point output | +1%FS |
| Non-linearity | 0.1%FS |
| Hysteresis | 0.1%FS |
| Repeatability | 0.05%FS |
| Creep (30 min) | 0.05%FS |
| Temperature Sensitivity Drift | 0.05%F.S./10°C |
| Zero point Temperature Drift | 0.05%F.S./10°C |
| Insulation Resistance | ≥5000MΩ/100VDC |
| Service voltage | 5-15V |
| Operating Temperature Range | -20-80°C |
| Safe overload | 150% |
| Extreme overload | 200% |

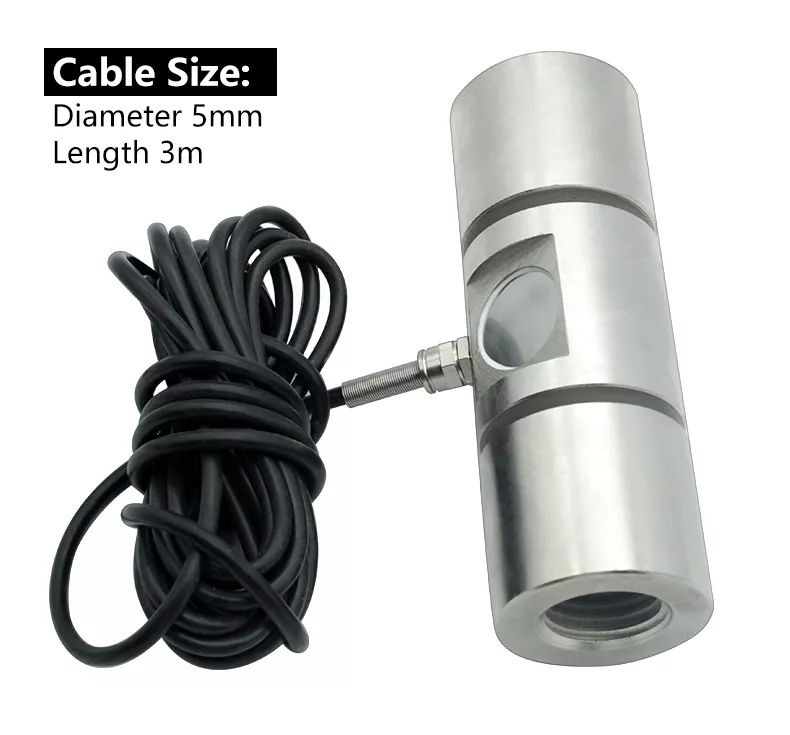

| Cable line specifications | Φ5x3m |
| Cable limit tension | 10kg |
| Response frequency | 10kHz |
Dimensions:
