DYZ-013 Flange Mount Column Type Load Cell (5-30 ton)
Product Resources
SKU:
INL-C-238-1
$1,000.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like

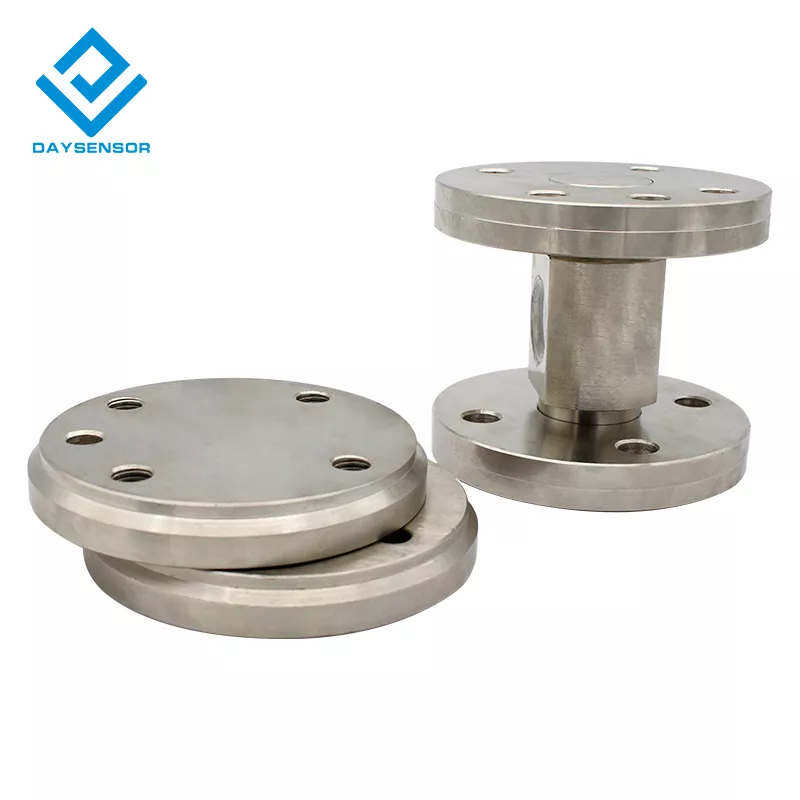

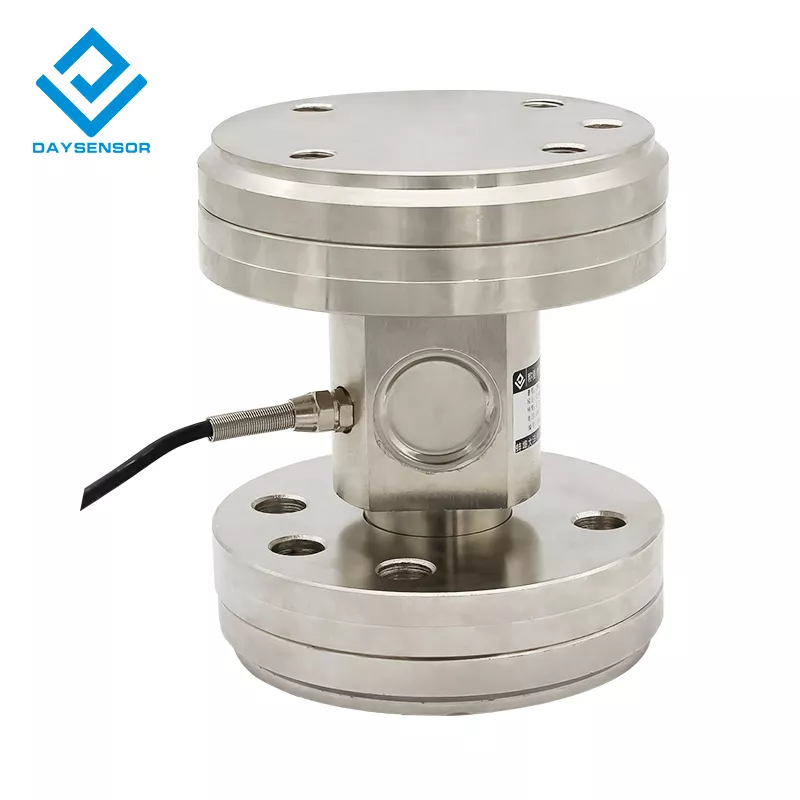

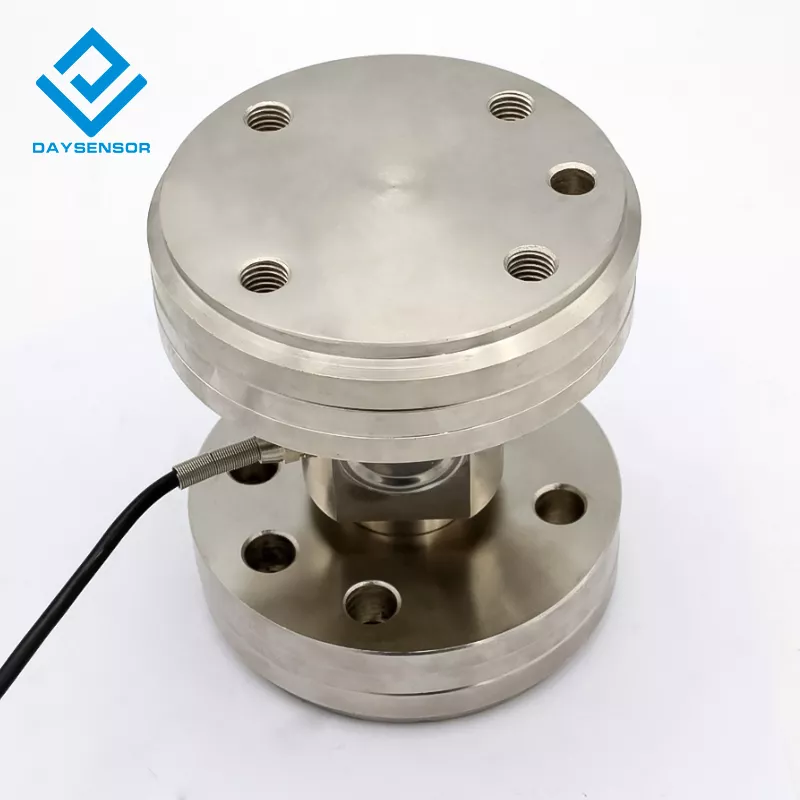

The DYZ-013 Column Type Load Cell is a robust and versatile flange mounted force sensor designed for heavy-duty weighing applications in various industrial settings. Its compact structure and high accuracy make it an ideal choice for a wide range of applications, including rail weighbridges, bucket scales, platform scales, and other electronic weighing equipment.
Key Features:
- Robust Construction: The upper and lower flanges are fixed, ensuring a compact and stable structure.
- High Accuracy: Provides precise and reliable force measurements with good long-term stability.
- Durable Material: Made of high-quality alloy steel with nickel plating for enhanced durability and corrosion resistance.
- Versatile Applications: Suitable for various industries and applications, including rail weighbridges, bucket scales, and platform scales.
- Easy Installation: Designed for straightforward integration into various systems.
Technical Specifications:
| Parameter | Value |
| Range | 0-30T |
| Material | Alloy Steel |
| Output Sensitivity | 1.0-2.0 ± 0.05 mV/V |
| Impedance | 350 Ω |
| Zero point output | + 1 %FS |
| Non-linearity | 0.1 %FS |
| Hysteresis | 0.1 %FS |
| Repeatability | 0.05 %FS |
| Creep (30 min) | 0.05 %FS |
| Temperature Sensitivity Drift | 0.05 %FS / 10 °C |
| Zero point Temperature Drift | 0.05 %FS / 10 °C |
| Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
| Service voltage | 5 - 15 Vdc |
| Operating Temperature Range | -20 - 80 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Cable | 5 core x 3m |
| Cable Limit Tension | 10 kg |
| Response Frequency | 10 kHz |
| TEDS | N/A |
Dimensions:
