DYHX-003 Bolt Tension Sensor (50 kg - 5 ton)
Product Resources
SKU:
N/A
$1,025.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like

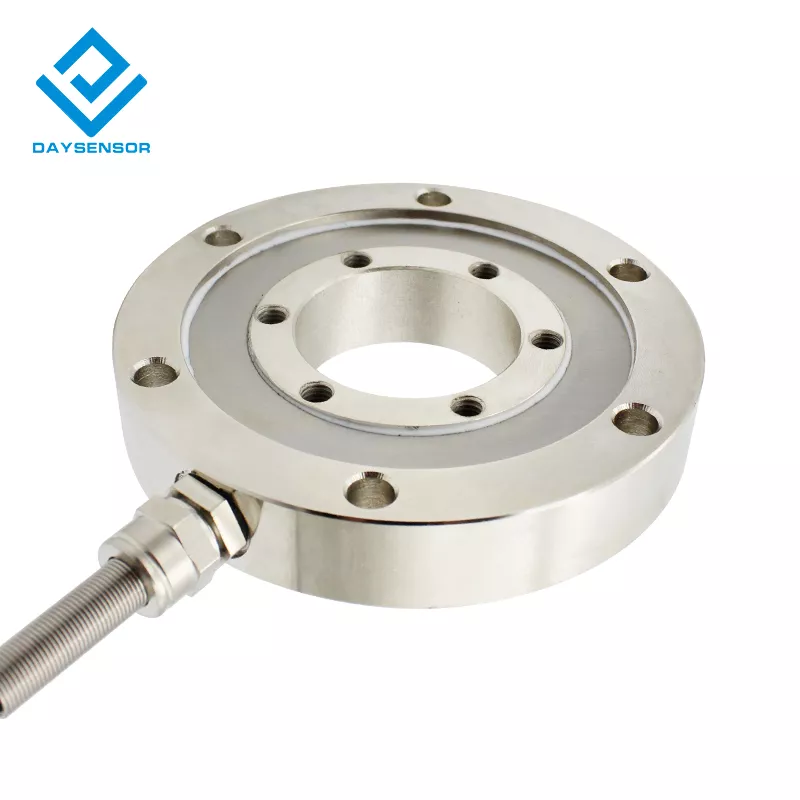

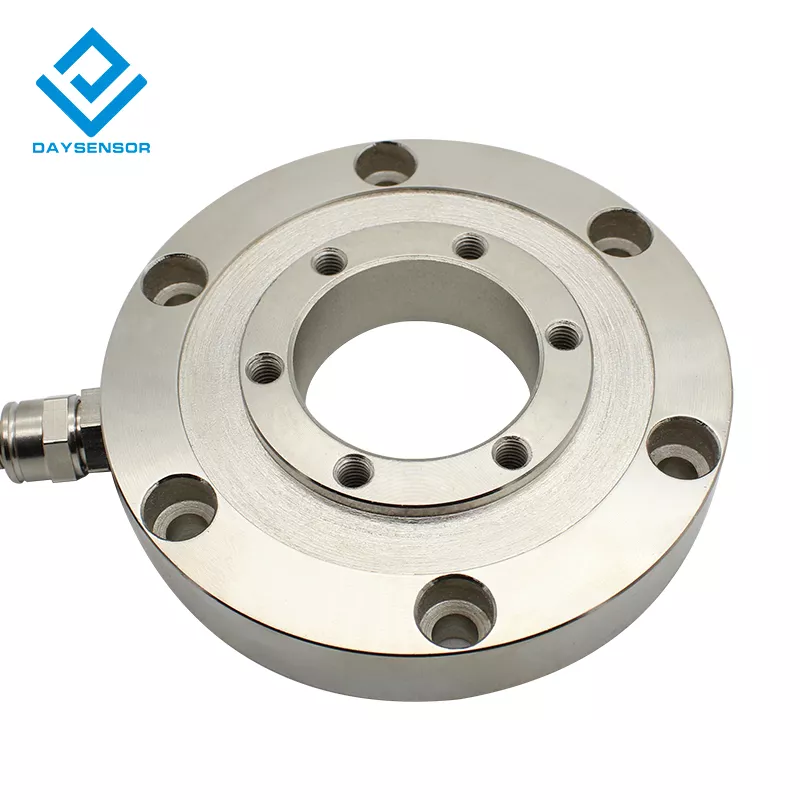

The DYHX-003 Bolt Pre-tension Sensor is a specialized load cell designed for measuring and monitoring the axial pre-tension force of bolt connections in various industrial applications. This sensor helps to ensure the reliability and safety of bolted joints by preventing bolt loosening or overtightening. The DYHX-003 is constructed from high-quality alloy steel and features a compact design, making it suitable for various applications where space is limited.
Key Features
- Measures axial pre-tension force of bolt connections.
- Improves the reliability and safety of bolted joints.
- Prevents bolt loosening or overtightening.
- Compact design for limited space applications.
- High-quality alloy steel construction.
- Suitable for various industrial and testing applications.
Technical Specifications
| Parameter | Value |
| Range | 5000kg |
| Material | Alloy Steel |
| Output Sensitivity | 2.0 ± 10% mV/V |
| Impedance | 1400Ω |
| Zero point output | +2%FS |
| Non-linearity | 0.5%FS |
| Hysteresis | 0.3%FS |
| Repeatability | 0.3%F.S |
| Creep (30 min) | 0.1%FS |
| Temperature Sensitivity Drift | 0.05%F.S./10°C |
| Zero point Temperature Drift | 0.05%F.S./10°C |
| Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
| Service voltage | 5-10v |
| Operating Temperature Range | -20-80°C |
| Safe overload | 120% |
| Extreme overload | 150% |
| Cable | 5 core x 3m |
| Cable Limit Tension | 10kg |
| Response frequency | 10kHz |
Dimensions
