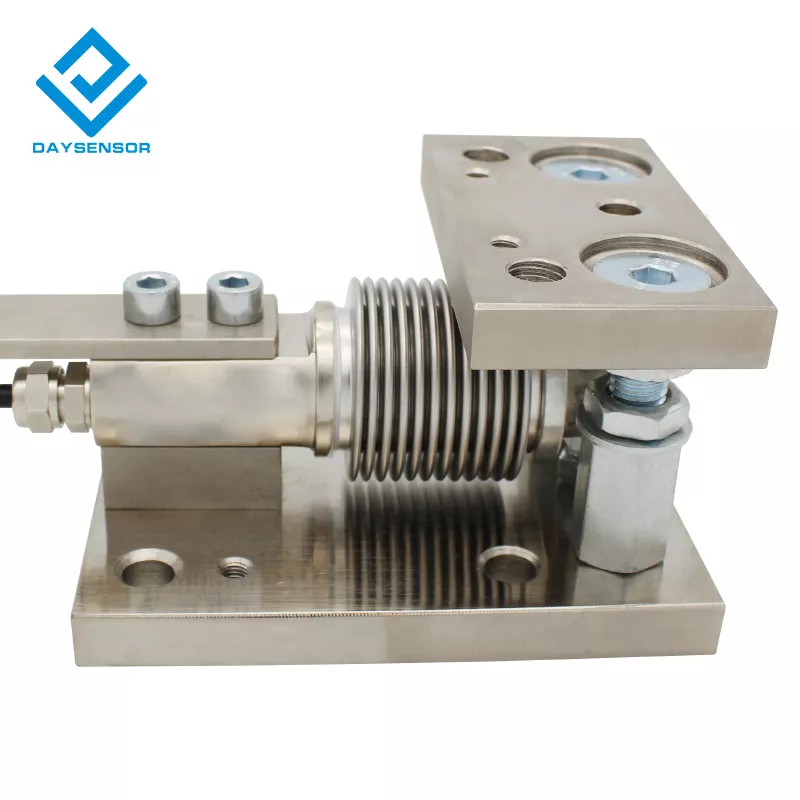

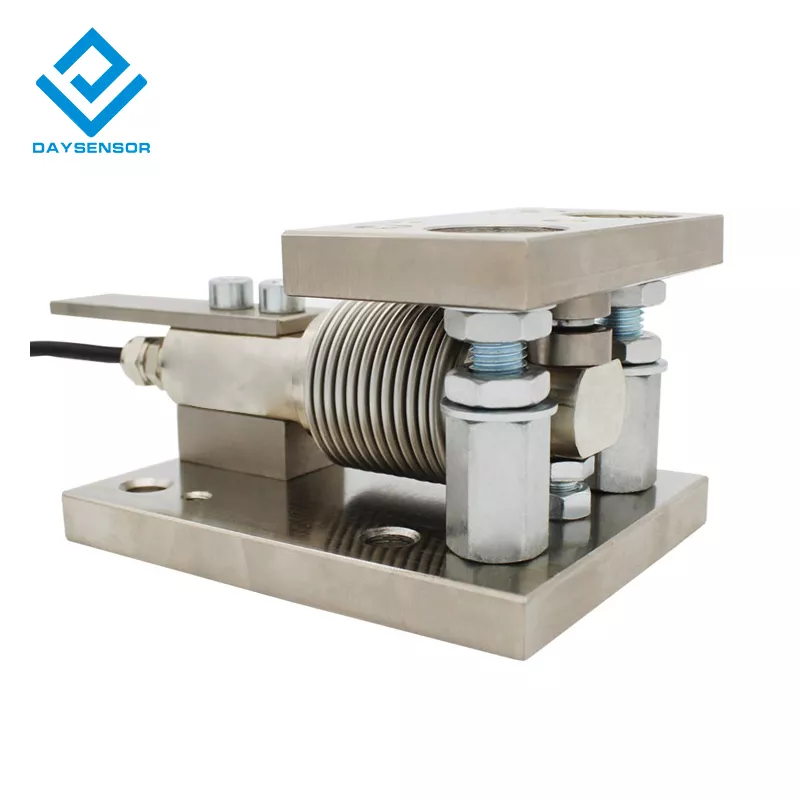

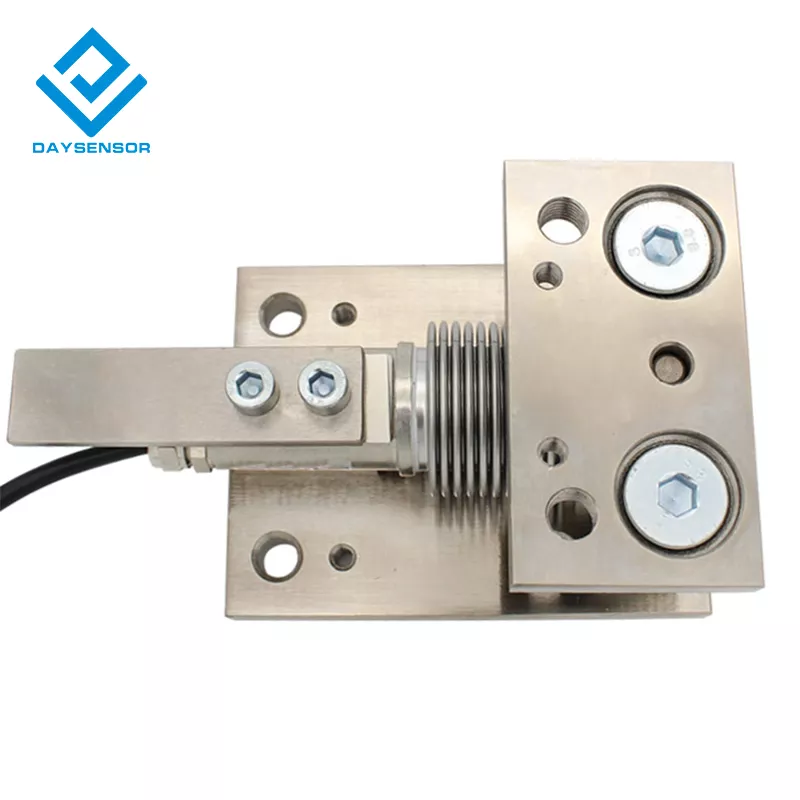

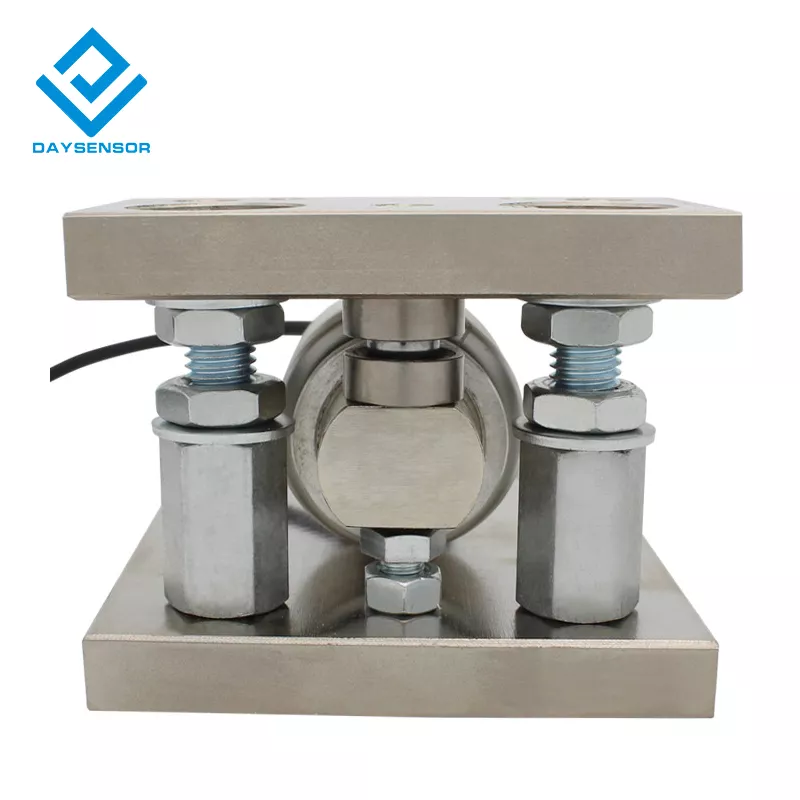

DYMK-006 Bellows Cantilever Precision Weighing Module (10 - 200 KG)
  • DYMK-006 Bellows Cantilever Precision Weighing Module (10 - 200 KG)
  • DYMK-006 Bellows Cantilever Precision Weighing Module (10 - 200 KG)
  • DYMK-006 Bellows Cantilever Precision Weighing Module (10 - 200 KG)
  • DYMK-006 Bellows Cantilever Precision Weighing Module (10 - 200 KG)
DYMK-006 Bellows Cantilever Precision Weighing Module (10 - 200 KG)

DYMK-006 Bellows Cantilever Precision Weighing Module (10 - 200 KG)

Product Resources

Datasheet Wiring Diagram
SKU: N/A
$1,100.00
Out of Stock | Backorders available (ETA 3-weeks)

You may also like

The DYMK-006 Bellows Cantilever Weighing Module is a compact and reliable solution for weighing applications in various industries, including chemical, pharmaceutical, and food processing. This module is designed for small to medium-sized weighing tasks, such as measuring ingredients in reactors and controlling processes in tanks and hoppers.

The DYMK-006 features a bellows cantilever design, providing high accuracy and stability in a compact form factor. It is constructed from stainless steel or alloy steel, ensuring durability and corrosion resistance for long-lasting performance. The module is also designed for easy installation and maintenance, reducing downtime and simplifying integration into existing systems.

Key Features:

  • Compact Design: Ideal for applications with limited space.
  • Accurate and Reliable: Bellows cantilever design ensures precise and consistent measurements.
  • Durable Construction: Stainless steel or alloy steel material provides excellent corrosion resistance and longevity.
  • Easy Installation: Designed for straightforward integration into various weighing systems.
  • Versatile Applications: Suitable for weighing reactors, tanks, hoppers, and other containers in various industries.

Technical Specifications:

Parameter Value
Range 0-500kg
Material Stainless Steel / Alloy Steel
Output Sensitivity 2.0 ± 0.002 mV/V
Zero point output ± 1 %FS
Non-linearity 0.3 %FS
Hysteresis 0.3 %FS
Repeatability 0.3 %FS
Creep (30 min) 0.1 %FS
Temperature Sensitivity Drift 0.1 %FS / 10 °C
Zero point Temperature Drift 0.1 %FS / 10 °C
Impedance 350 Ω
Insulation Resistance ≥ 5000 MΩ / 100 VDC
Service voltage 5 - 15 Vdc
Operating Temperature Range -20 - 80 °C
Safe Overload 150%
Extreme Overload 200%
Cable 5 core x 3m
Cable Limit Tension 10 kg
Response Frequency 10 kHz



Dimensions
