DYLY-109 Micro S-Type Load Cell (0.5-10 kg)
Product Resources
SKU:
N/A
$200.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like

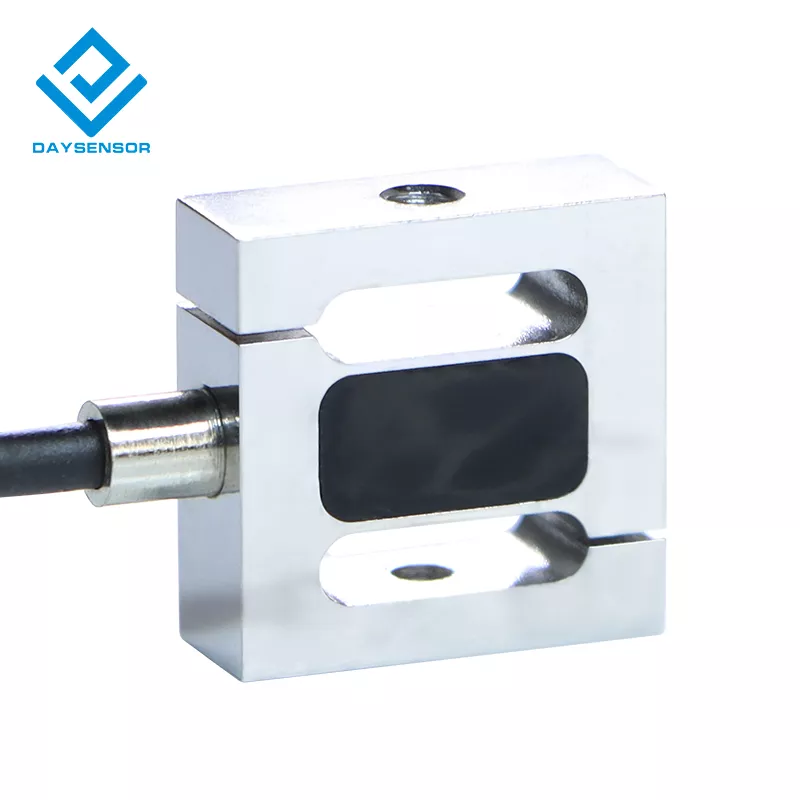

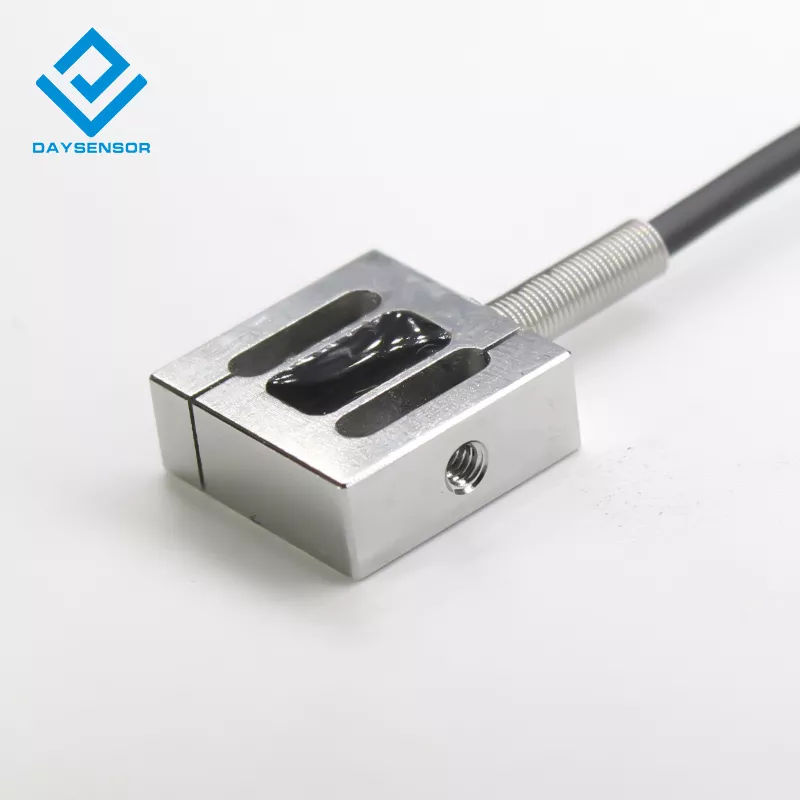

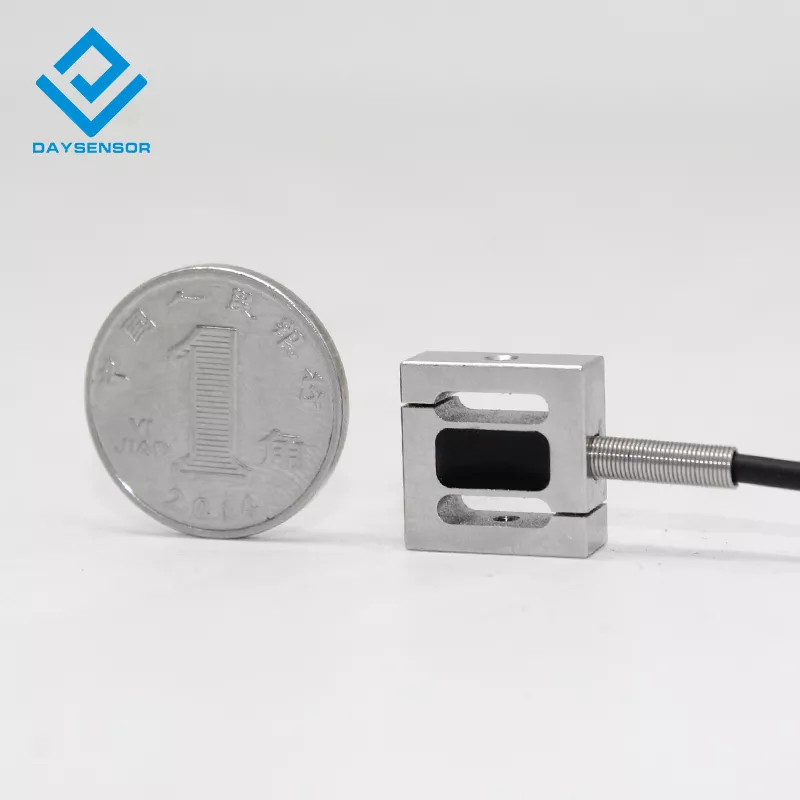

The DYLY-109 S-Type Load Cell is a micro, high-accuracy force sensor designed for tension and compression measurements in various applications, such as mobile phone testing, industrial robots, and other automation equipment requiring precise force measurement. This compact sensor is constructed from stainless steel for enhanced durability and features a lightweight design for easy integration.
Key Features:
- Measures force in tension and compression.
- Wide range of capacities available, from 0.5 to 10 kg.
- High accuracy and stability, with non-linearity of 0.1%FS.
- Operating temperature range: -20°C to +80°C.
- Simple installation with threaded ends.
Technical Specifications:
| Parameter | Value |
| Range | 0-10kg (according to selection) |
| Measurement Type | Tension and Compression |
| Mounting | S-type load cell with M2 thread |
| Material | Stainless Steel |
| Operating Temperature Range | -20~80 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Frequency Response | 10 kHz |
| Output Sensitivity | 1.0~2.0 mV/V |
| Excitation Voltage | 5~10 Vdc |
| Impedance | 350 Ω |
| Insulation Resistance | ≥5000 MΩ @100 Vdc |
| Cable | φ2 x 2m |
| Creep (30 min) | 0.05 %FS |
| Zero Point | ±2 %FS |
| Non-linearity | 0.1 %FS |
| Repeatability | 0.05 %FS |
| Zero point Temperature Drift per 10 °C | 0.05 %FS |
| Sensitivity Temperature Drift per 10 °C | 0.05 %FS |

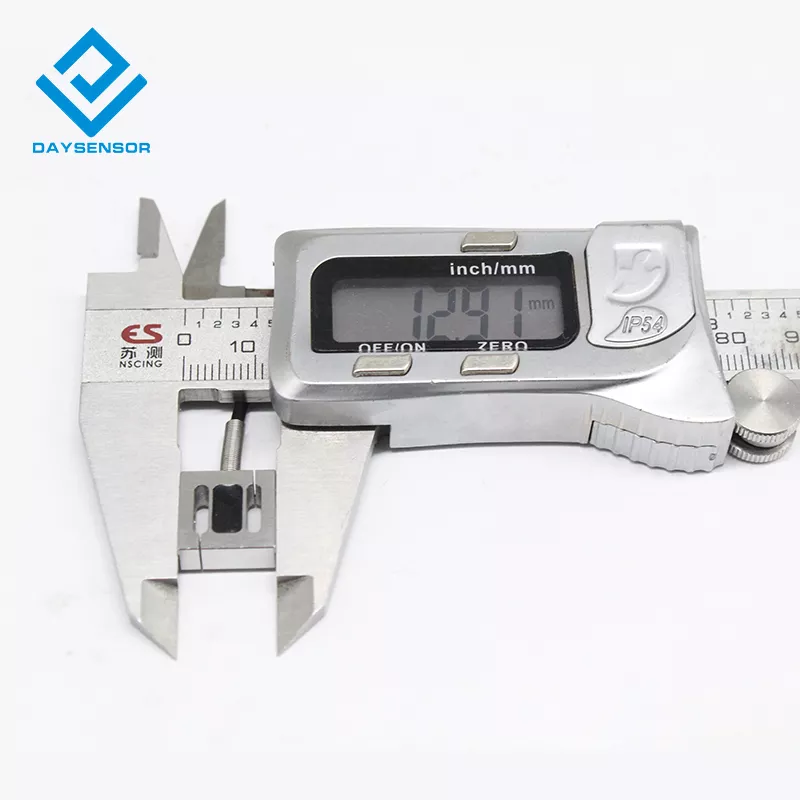

Dimensions:
