DYLY-107 Miniature S-Type Load Cell (5-200 kg)
Product Resources
SKU:
INL-S-194-1
$175.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like

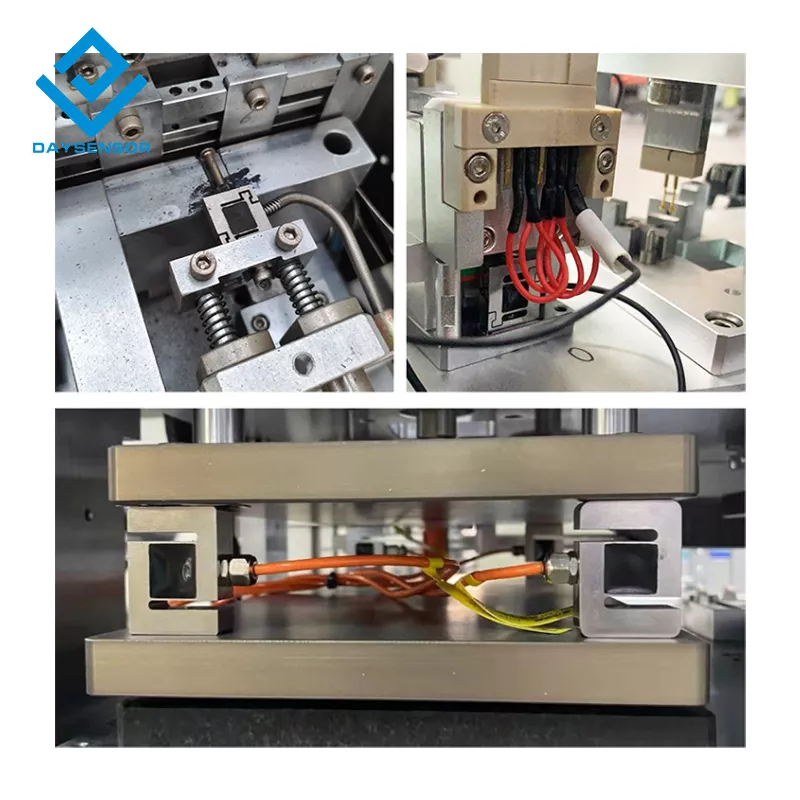

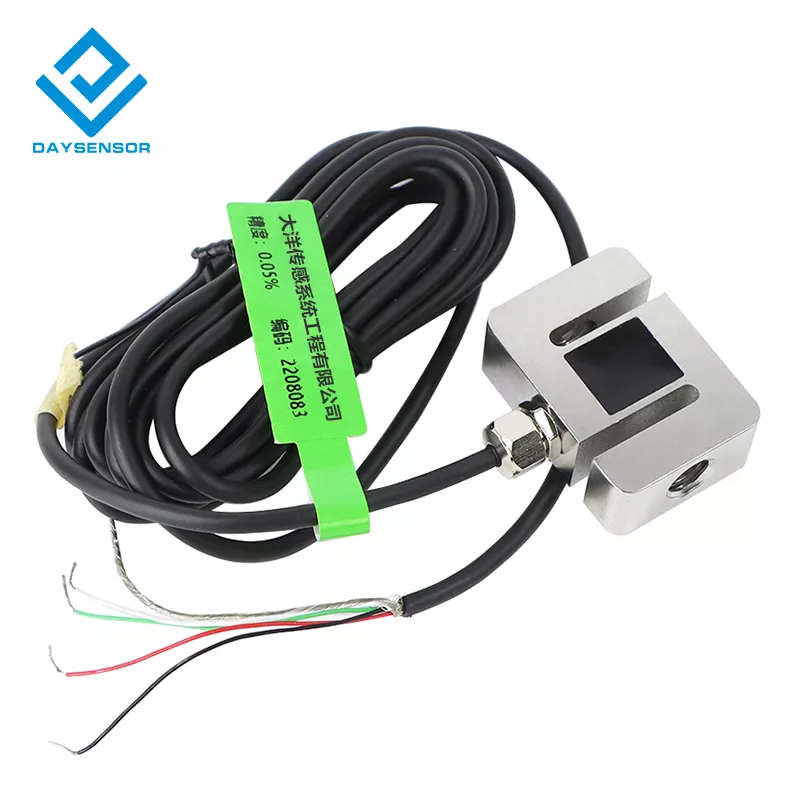

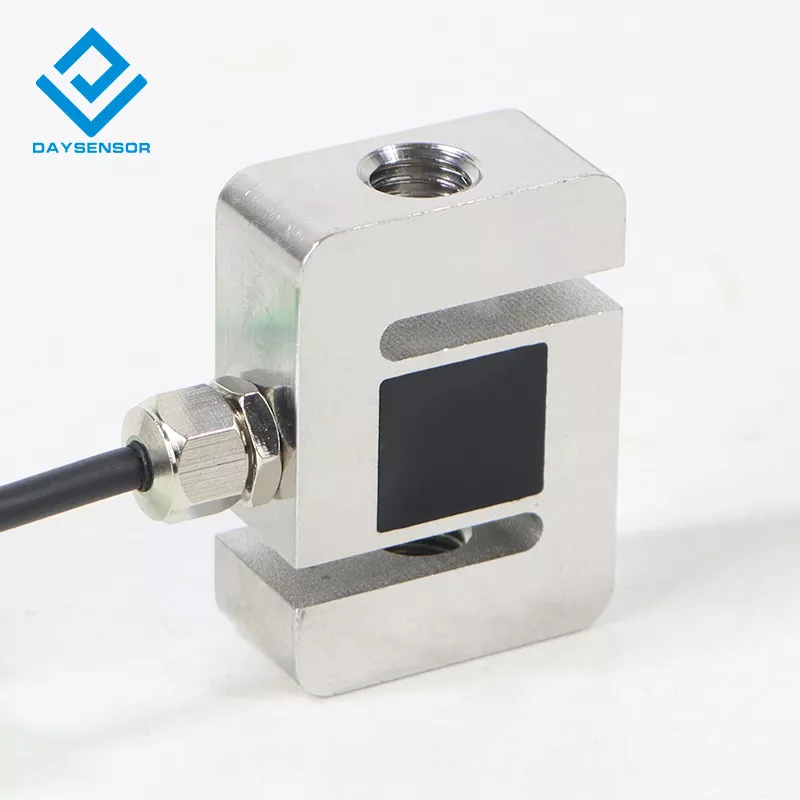

The DYLY-107 S-Type Load Cell is a miniature, high-precision force sensor designed for tension and compression measurements in a variety of applications, including material testing machines, platform scales, and other industrial weighing systems. This compact sensor is constructed from stainless steel for enhanced durability and corrosion resistance, making it suitable for demanding environments.
Key Features:
- Measures force in tension and compression.
- Wide range of capacities available, from 5 to 200 kg.
- High accuracy and stability, with non-linearity of 0.03%FS.
- Operating temperature range: -20°C to +80°C.
- Simple installation with threaded ends.
Technical Specifications:
| Parameter | Value |
| Range | 5~200 kg (according to selection) |
| Measurement Type | Tension and Compression |

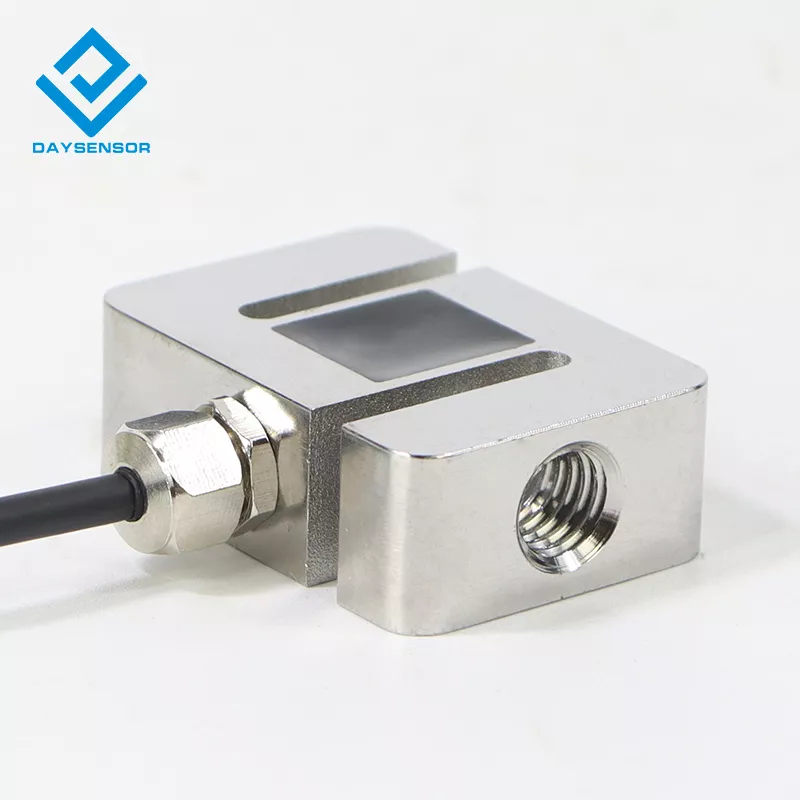

| Mounting | S-type load cell with female thread (M8) |
| Material | Stainless Steel |
| Operating Temperature Range | -20~80 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Frequency Response | 10 kHz |
| Output Sensitivity | 1.0~2.0 mV/V |
| Excitation Voltage | 5~10 Vdc |
| Impedance | 350 Ω |
| Insulation Resistance | ≥5000 MΩ @100 Vdc |
| Cable | 5 core x 2m |
| Creep (30 min) | 0.03 %FS |
| Zero Point | ±2 %FS |
Dimensions:
