DYLY-106 Miniature S-Type Load Cell (0.5-100 kg)
Product Resources
SKU:
N/A
$150.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like

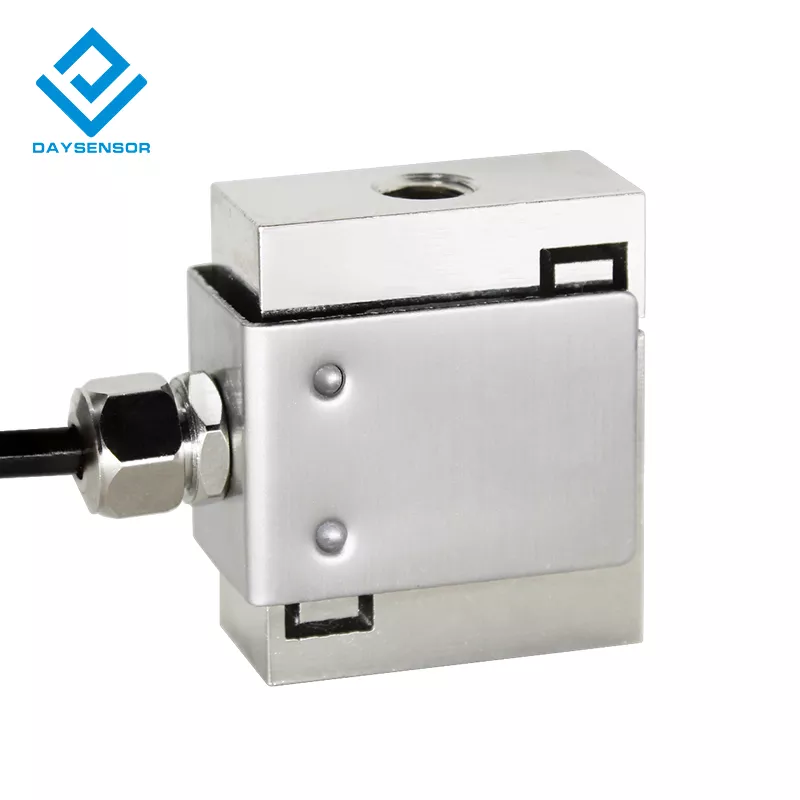

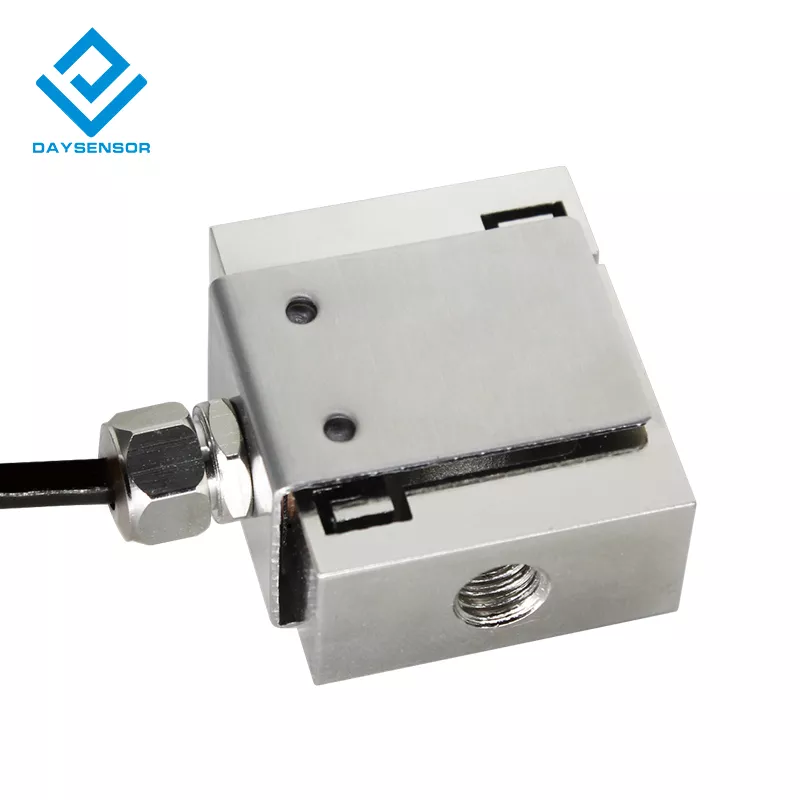

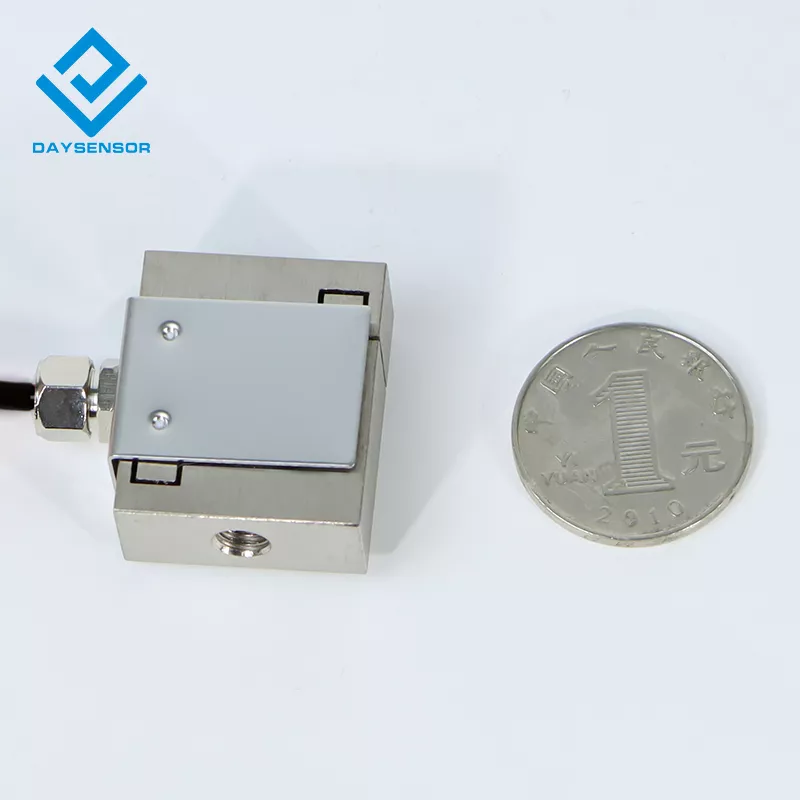

The DYLY-106 S-Type Load Cell is a high-accuracy, miniature force sensor designed for tension measurements in applications requiring compact size and precise performance, such as in 3C product testing, automated assembly, robot grip testing, and keyboard feel testing. This miniature sensor is constructed from alloy steel for durability and features a lightweight design for easy integration.
Key Features:
- Measures force in tension.
- Wide range of capacities available, from 0.5 to 100 kg.
- High accuracy and stability, with non-linearity of 0.03%FS.
- Operating temperature range: -20°C to +80°C.
- Simple installation with threaded ends.
Technical Specifications:
| Parameter | Value |
| Range | 0.5~100 kg (according to selection) |
| Measurement Type | Tension |
| Mounting | S-type load cell with female thread (M6) |
| Material | Alloy Steel |
| Operating Temperature Range | -20~80 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Frequency Response | 10 kHz |
| Output Sensitivity | 1.0~2.0 mV/V |
| Excitation Voltage | 5~15 Vdc |
| Impedance | 350 Ω |
| Insulation Resistance | ≥5000 MΩ @100 Vdc |
| Cable | 5 core x 2m |
| Creep (30 min) | 0.03 %FS |
| Zero Point | ±1 %FS |
Dimensions:
