DYLF-105 High Capacity Spoke Load Cell for Truck Scales (50 - 500 ton)
Product Resources
SKU:
INL-P-201-1
$2,075.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like

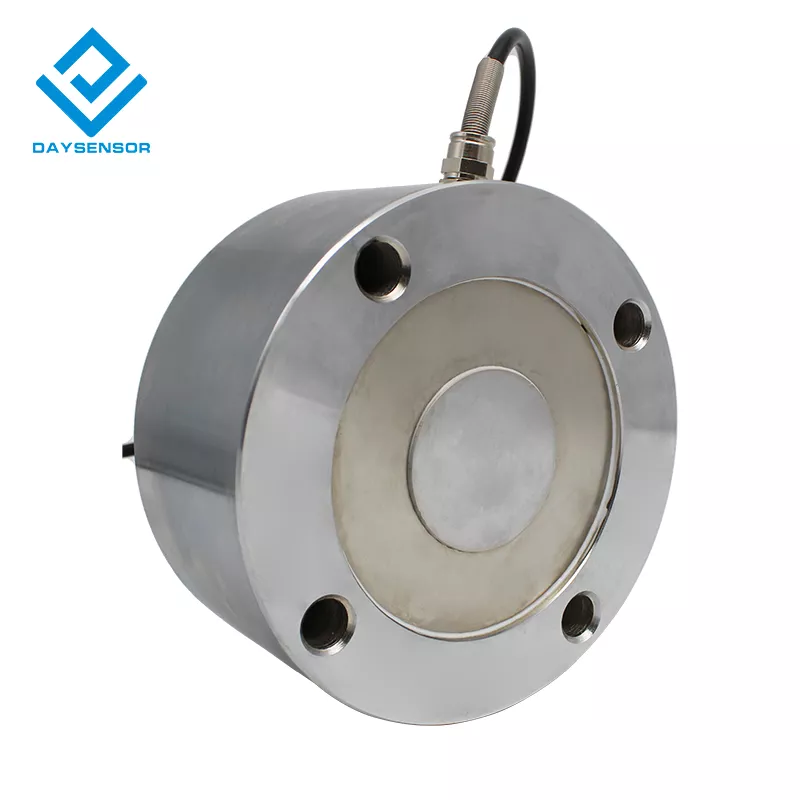

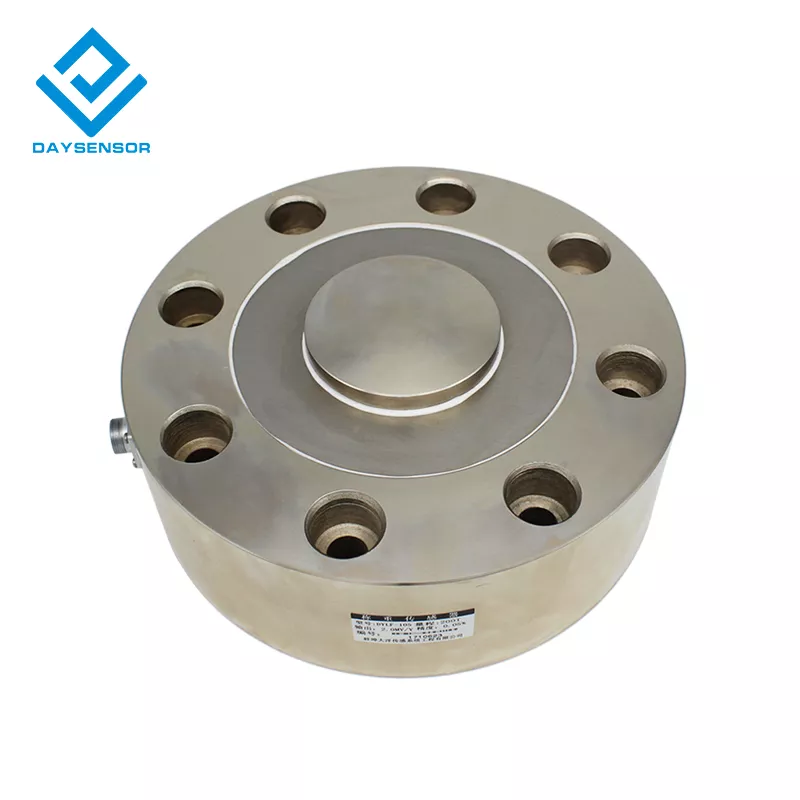

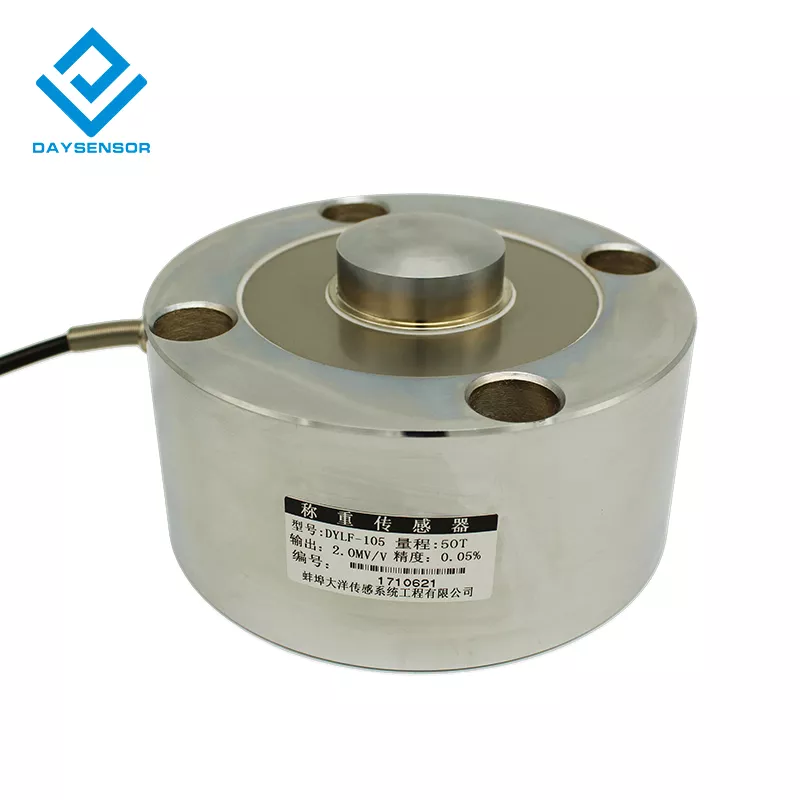

The DYLF-105 Spoke Type Load Cell is a high-precision, heavy-duty force sensor designed for accurate tension and compression measurements in various high-capacity industrial applications, such as truck scales, material testing machines, and other weighing systems. This robust sensor is constructed from alloy steel for enhanced durability and features a compact, low-profile design for easy integration into diverse systems.
Key Features:
- Measures force in tension and compression.
- Wide range of capacities available, from 50 to 500 tons.
- High accuracy and stability, with non-linearity of 0.05%FS.
- Operating temperature range: -20°C to +80°C.
- Simple installation with threaded ends.
- Strong resistance to partial load and lateral force.
Technical Specifications:
| Parameter | Value |
| Range | 50 - 500 ton (according to selection) |
| Measurement Type | Tension and Compression |
| Mounting | Spoke-type load cell with female thread |
| Material | Nickel-plated Alloy Steel |
| Operating Temperature Range | -20~80 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Frequency Response | 10 kHz |
| Output Sensitivity | 2.0 ±0.05 mV/V |
| Excitation Voltage | 5~15 Vdc |
| Impedance | 1400Ω |
| Insulation Resistance | ≥5000 MΩ @100 Vdc |
| Cable | 5 core x 5m |
| Creep (30 min) | 0.05 %FS |
| Zero Point | ±1 %FS |
| Non-linearity | 0.05 %FS |
| Hysteresis | 0.05 %FS |
| Repeatability | 0.05 %FS |
| Zero point Temperature Drift per 10 °C | 0.05 %FS |
| Sensitivity Temperature Drift per 10 °C | 0.05 %FS |
Dimensions:
