DYHX-004 Bolt Pre-tension Sensor - (0.5 - 200 kN)
Product Resources
SKU:
INL-C-244-01
$650.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like

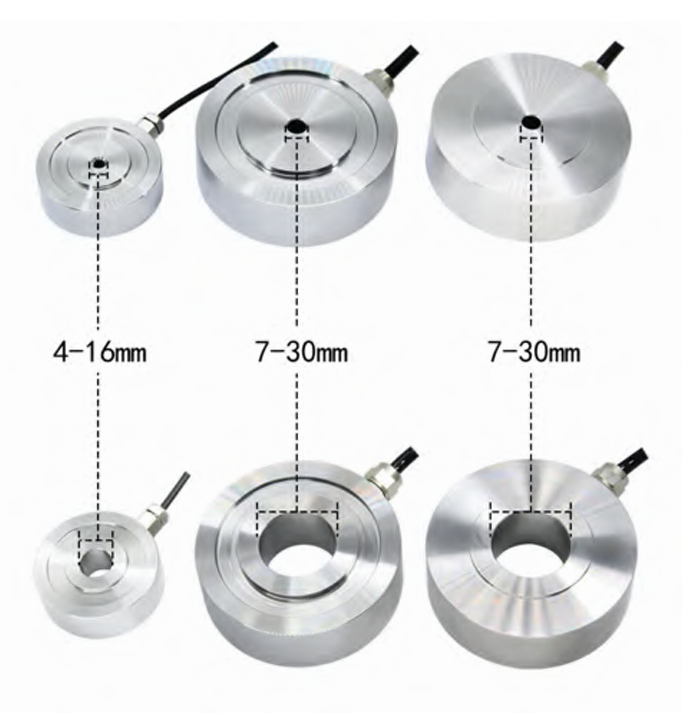

The DYHX-004 Bolt Pre-tension Sensor is a specialized sensor designed for measuring and monitoring the axial pre-tension force of bolt connections. It can be used to improve the reliability and safety of bolt connections and prevent bolt loosening or over-tightening. The inner hole size can be customized, and the elastomer is made of high-quality stainless steel material.
Key Features
- Measures axial pre-tension force of bolt connections.
- Improves the reliability and safety of bolted joints.
- Prevents bolt loosening or over-tightening.
- Compact design for limited space applications.
- High-quality stainless steel construction.

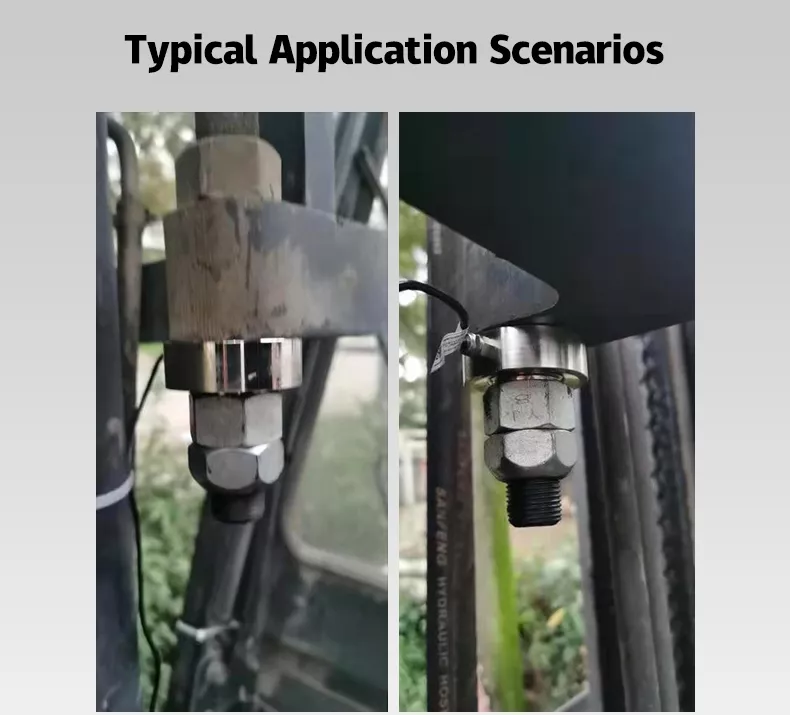

- Suitable for various industrial and testing applications.
Technical Specifications
| Parameter | Value |
| Range | 200kN |
| Material | Stainless Steel |
| Output Sensitivity | 1.0 ± 10% mV/V |
| Impedance | 700 Ω |
| Zero point output | ± 2 %FS |
| Non-linearity | 0.3%FS |
| Hysteresis | 0.1%FS |
| Repeatability | 0.1%FS |
| Creep (30 min) | 0.1%FS |
| Temperature Sensitivity Drift | 0.1%F.S./10°C |
| Zero point Temperature Drift | 0.1%F.S./10°C |
| Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
| Service voltage | 5-15V |
| Operating Temperature Range | -20-80°C |
| Safe overload | 120% |
| Extreme overload | 150% |
| Cable | 5 core x 2m |
| Cable Limit Tension | 10kg |
| Response frequency | 10kHz |
| TEDS |
Dimensions
