DYZ-011 Large Capacity Load Cell (10-1000 ton)
Product Resources
SKU:
INL-C-237-01
$475.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like

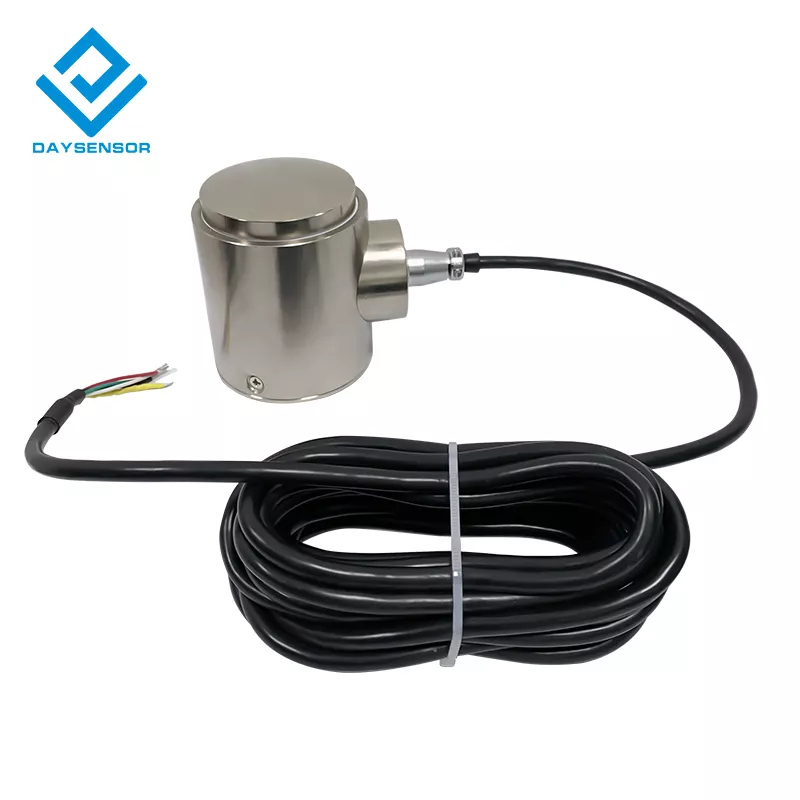

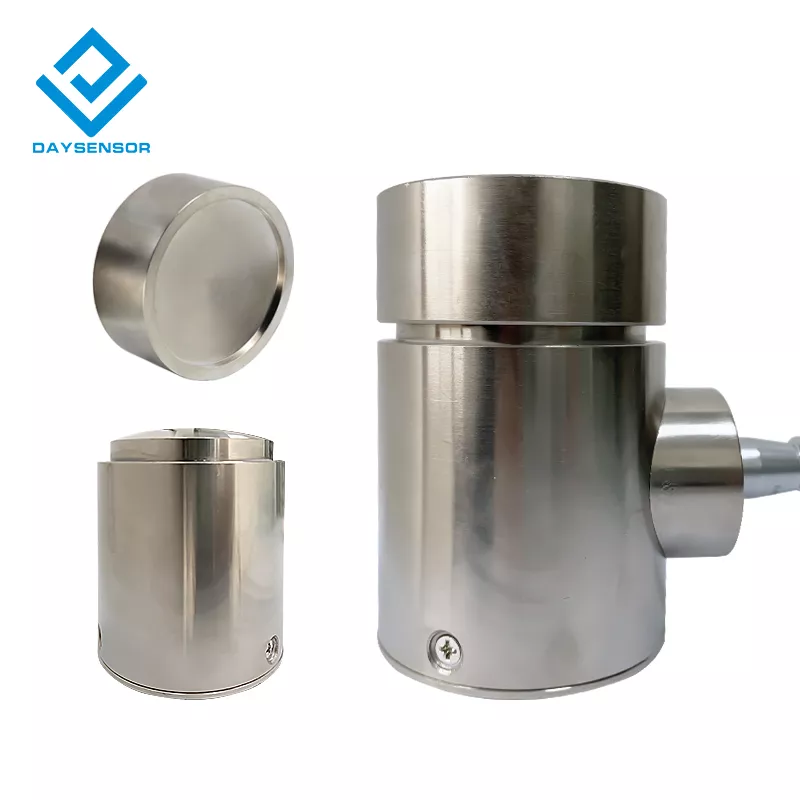

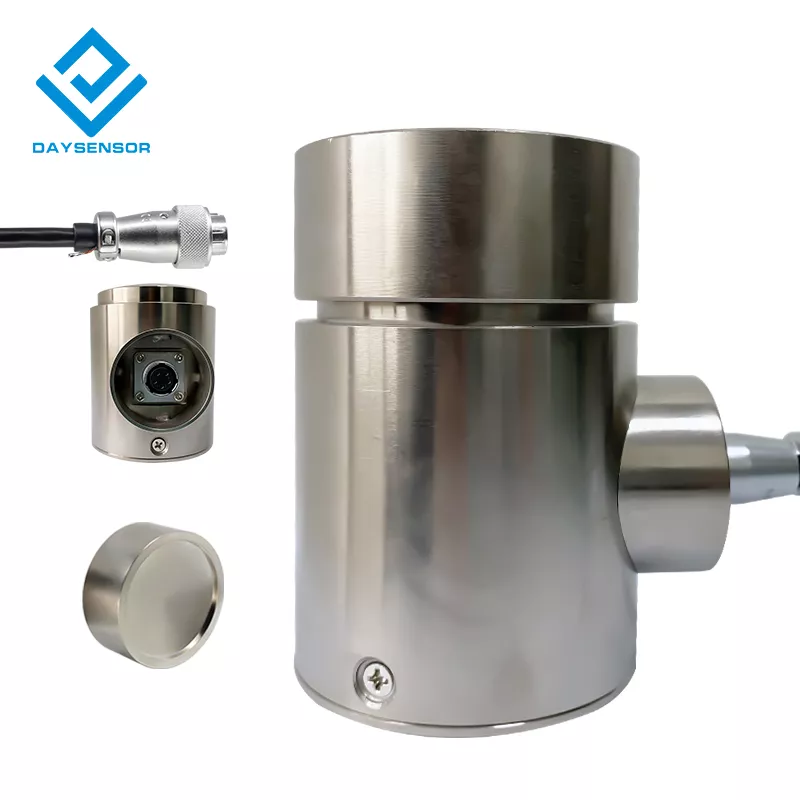

The DYZ-011 Large Capacity Load Cell is a robust and versatile force sensor designed for heavy-duty weighing applications in various industrial settings. Its low height and large contact area make it ideal for use in electronic weighing equipment and pull-pressure detection equipment with large pressure areas.
Key Features:
- High Capacity: Measures a wide range of forces, from 2 tons to 1000 tons.
- Durable Construction: Made of alloy steel for reliable performance in demanding environments.

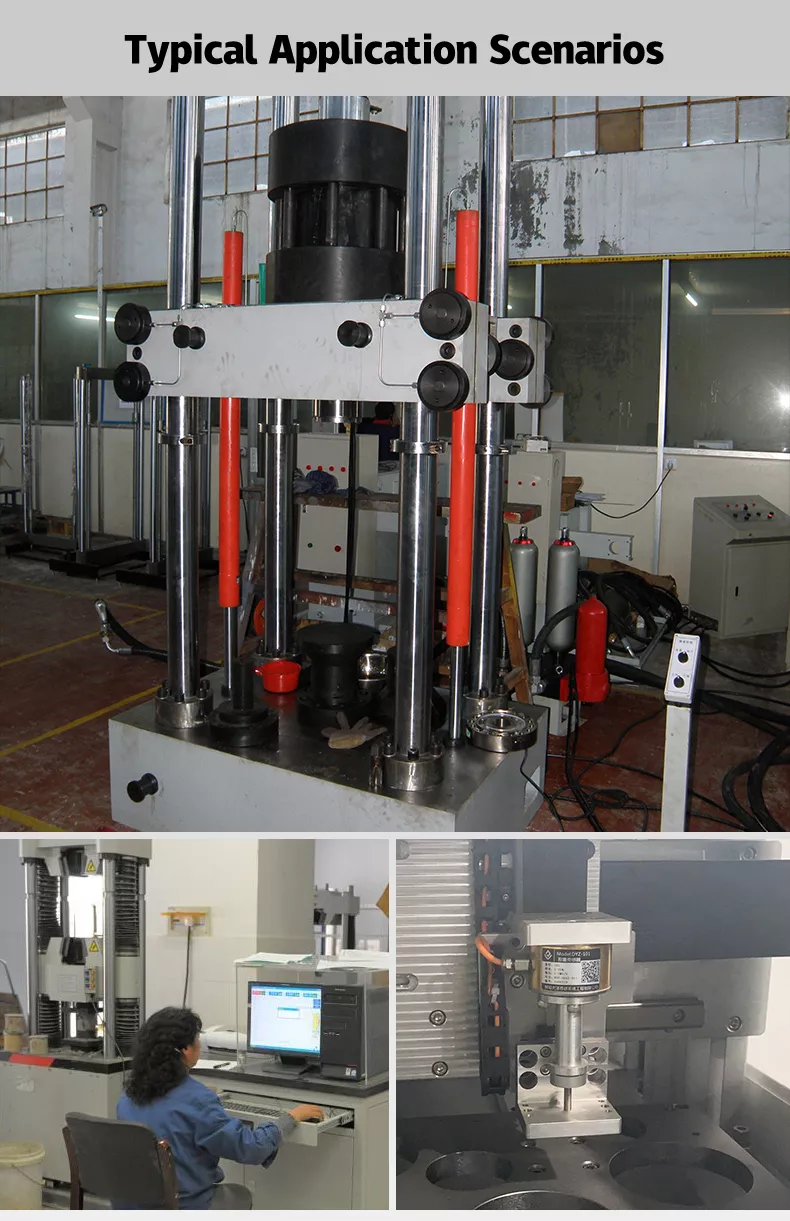

- Versatile Applications: Suitable for various industries and applications, including pressure equipment, mobile phone assembly, small pressure platforms, hydraulic presses, cold-hot presses, electronic hook scales, and hopper scales.
- Low Height and Large Contact Area: Ensures stability and accurate force distribution.
- Easy Installation: Designed for straightforward integration into various systems.
Technical Specifications:
| Parameter | Value |
| Range | 0-1000T |
| Material | Alloy Steel |
| Output Sensitivity | 2.0/3.0 ± 10% mV/V |
| Impedance | 700 Ω |
| Zero point output | + 2 %FS |
| Non-linearity | 0.3 %FS |
| Hysteresis | 0.1 %FS |
| Repeatability | 0.1 %FS |
| Creep (30 min) | 0.05 %FS |
| Temperature Sensitivity Drift | 0.05 %FS / 10 °C |
| Zero point Temperature Drift | 0.05 %FS / 10 °C |
| Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
| Service voltage | 5 - 15 Vdc |
| Operating Temperature Range | -20 - 80 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Cable | 5 core x 3m |
| Cable Limit Tension | 10 kg |
| Response Frequency | 10 kHz |
| TEDS | N/A |
Dimensions:
