Build Custom Test Leads in Seconds – No Soldering Required
Optimize your workflow with Cleqee P10067 Quick-Press Banana Connectors. The tool-free "click-connect" mechanism enables rapid, solderless assembly using a strong internal spring clamp. Built for safety, the V0-rated flame-retardant Nylon PA shell resists heat and deformation, ensuring reliability. Includes 10 connectors (5 Red, 5 Black).
Key Features & Benefits
-

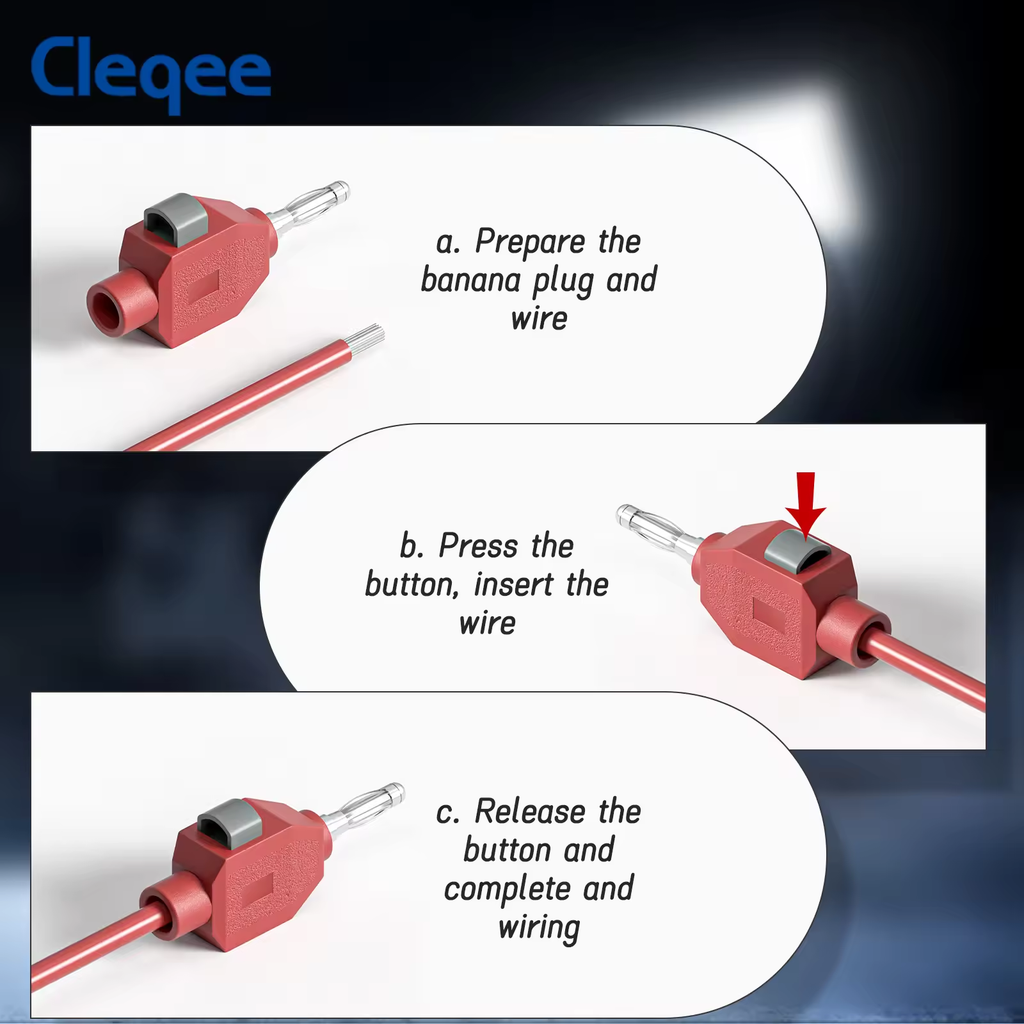

Rapid "Click-Connect" Assembly: Simply press, insert wire, and release. The spring clamp secures connections instantly without tools, drastically reducing assembly time.
-
Premium Conductivity: Nickel-Plated Pure Copper contacts provide low resistance and stable signal transmission for accurate data.
-
Safety & Durability: The V0-grade Nylon PA housing is self-extinguishing and resists deformation, ensuring longevity in demanding environments.
-
Versatile Compatibility: Supports cable sheaths up to 4.6mm and wire cores up to 4mm² for high-current applications.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
Cleqee P10067 |
|
Connector Type |
Standard 4mm Banana Plug (Stackable: No) |
|
Assembly Method |
Spring-Loaded Quick Press (Solderless) |
|
Contact Material |
Pure Copper, Nickel Plated |
|
Shell Material |
Nylon PA (Flame Retardant Grade V0) |
|

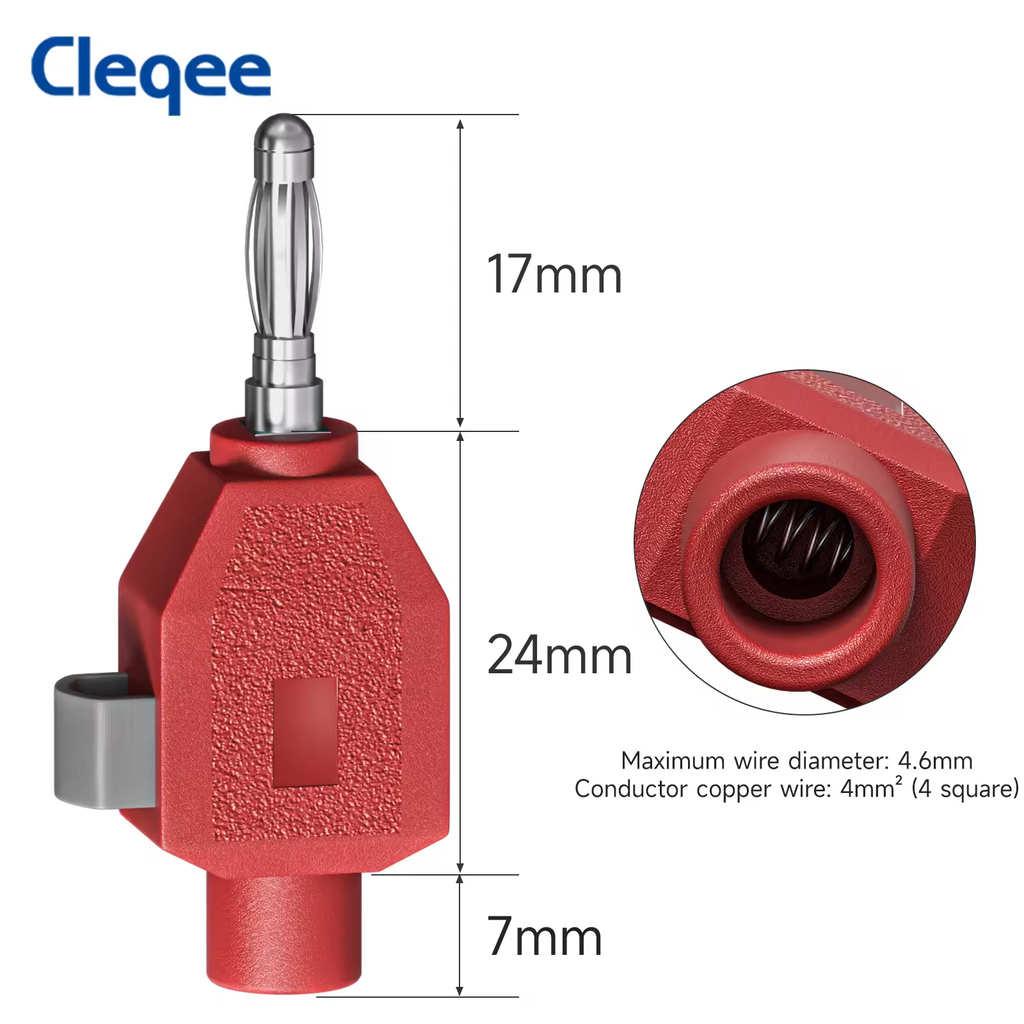

Max Wire Core Size |
4.0mm² |
|
Max Cable OD |
4.6mm |
|
Pack Quantity |

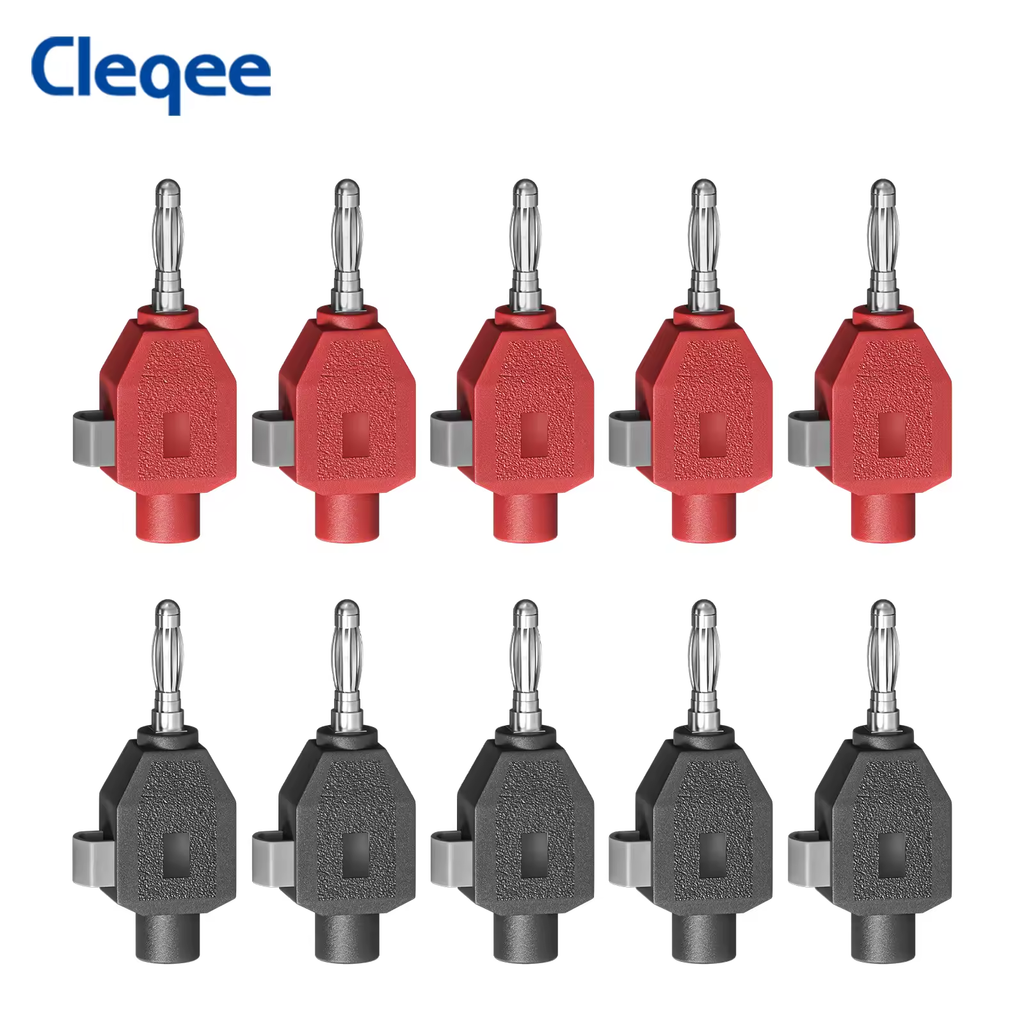

10 Pieces (5x Red, 5x Black) |
Applications
-
Custom Test Leads: Build specific-length leads for organized benchtops.
-
Field Repair: Replace broken plugs instantly without soldering.
-
Education: Ideal for frequently reconfiguring test setups.
