Bante ECscan40 Conductivity Tester
Product Resources
$350.00
Quantity: 1
| Backorders available (ETA 3-weeks)
You may also like

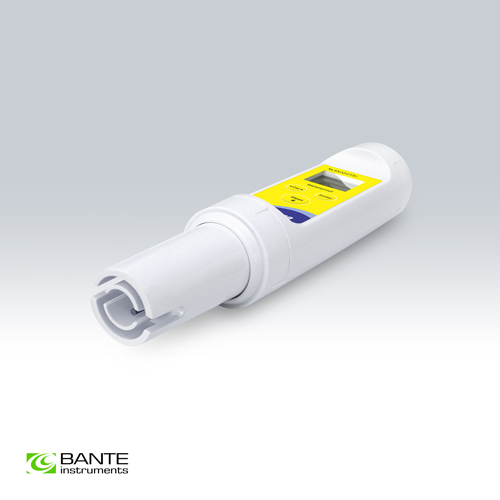

The Bante ECscan40 is a professional-grade multi-parameter pocket tester designed for accurate field analysis of Conductivity, TDS (Total Dissolved Solids), and Salinity.
Unlike basic pens that only measure one parameter, the ECscan40 is a true all-in-one solution. Equipped with a platinum-black sensor and a high-performance processing chip, it automatically switches ranges to provide precise readings from pure water (0.01 µS/cm) up to high-strength chemical solutions (20.00 mS/cm).
Key Features
Multi-Parameter Analysis
-
3-in-1 Measurement: Measures Conductivity, TDS, and Salinity in a single compact unit.
-
Auto-Ranging: Automatically selects the optimal measurement range for the detected sample, ensuring the best resolution without manual switching.
High-Accuracy Sensor
-
Platinum Sensor: Utilizes a professional platinum-black conductivity cell (K=1) that provides linear, stable readings and resists polarization errors common in cheaper graphite sensors.
-
Automatic Temperature Compensation (ATC): Built-in temperature sensor corrects measurements to 25°C, eliminating errors caused by temperature fluctuations.
User-Friendly Design
-

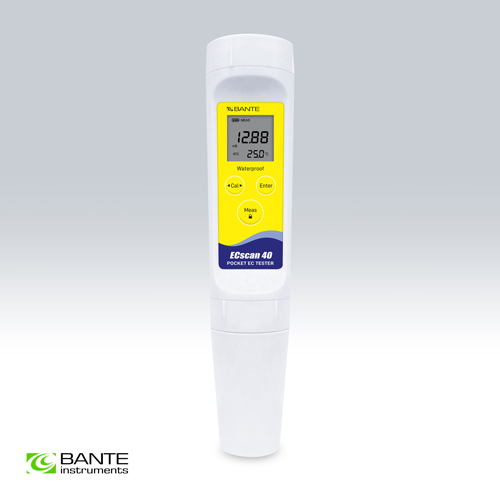

Dual-Line Display: Shows the measurement and temperature simultaneously.
-
Auto-Read Function: Automatically senses and locks the measurement endpoint when the reading stabilizes, removing the guesswork.
-
Adjustable TDS Factor: Allows you to customize the conversion factor (0.1 to 1.0) for specific pollutants or chemical types.
Ideal Applications
-
Water Treatment: RO system monitoring and boiler feed water.
-
Environmental: River, lake, and groundwater sampling.
-
Agriculture: Hydroponic nutrient solution strength (EC/TDS).
-
Aquaculture: Salinity monitoring for fish farming.
-
Education: Field trips and chemistry labs.
Technical Specifications
|
Parameter |
Specification |
|
Model |
Bante ECscan40 |
|
Conductivity Range |
0.01 µS/cm to 20.00 mS/cm (Auto-ranging) |
|
TDS Range |
0.01 ppm to 20.00 ppt (Max 20,000 ppm) |
|
Salinity Range |
0.00 to 10.00 ppt |
|
Accuracy |
±1% F.S. |
|
Calibration |
1 to 3 Points (Auto-recognition) |
|
Temp. Compensation |
0 to 60°C (Automatic) |
|
Power Supply |
2x 1.5V AAA Batteries (Replaceable) |
|
Auto-Off |
8 Minutes after non-use |
|
IP Rating |
IP54 (Splashproof) |
|
Dimensions |
185 × 40 mm |
Expert Tip: Calibration Made Easy
The ECscan40 features Automatic Calibration. Simply dip the sensor into a standard solution (84 µS, 1413 µS, or 12.88 mS), and the meter will automatically recognize the value and calibrate itself. No screwdrivers or manual adjustments required.

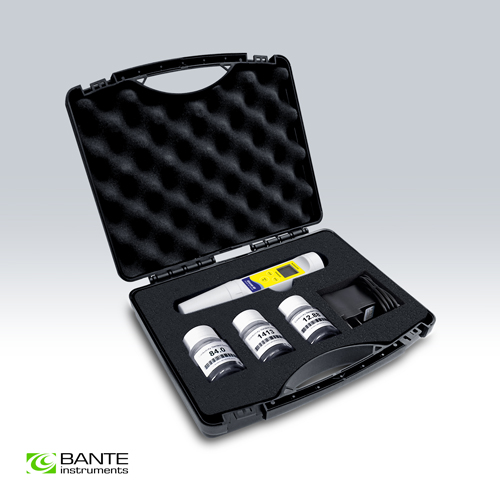

In the Box:
-
1x Bante ECscan40 Tester
-
3x Conductivity Standard Solutions (Bottles)
-
1x Hard Carrying Case
-
Batteries (2x AAA)
