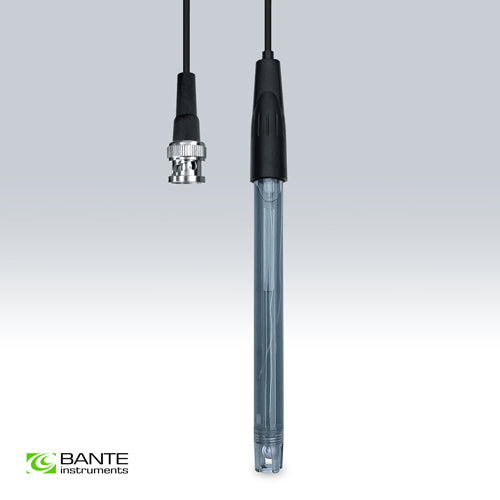

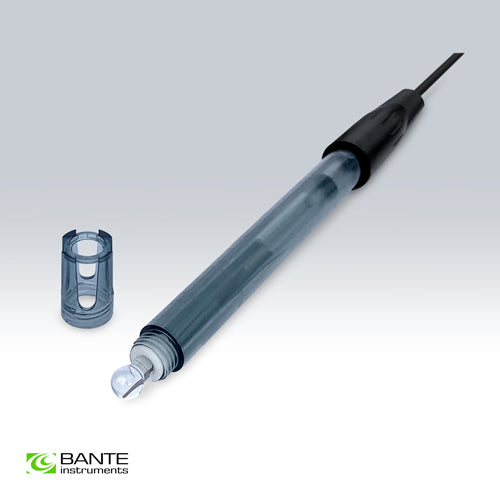

Bante E201 BNC pH Electrode for General Purpose
Product Resources
$100.00
Quantity: 2
| Backorders available (ETA 3-weeks)
You may also like
The Bante E201-BNC is the industry-standard choice for general-purpose pH measurements where durability and reliability are required. Unlike fragile glass-body electrodes, the E201 features a robust Epoxy (Plastic) housing, making it virtually unbreakable during normal use.
Designed for the rigors of field work, educational laboratories, and industrial water treatment, this sensor provides fast, stable readings without the risk of glass breakage. It is the ideal replacement probe for most portable pH meters on the market.
Key Benefits & Features
-
Impact Resistant: The tough epoxy body protects the sensing bulb, making it perfect for handheld use in the field or student use in the classroom.
-
Universal Compatibility: Equipped with a standard BNC connector, this electrode fits almost any portable or benchtop pH meter (Bante, Hanna, Hach, etc.) that uses a BNC input.
-
Low Maintenance: Features a sealed gel-filled reference system ($Ag/AgCl$), meaning there is no electrolyte to refill or maintain.
-
Reliable Junction: The fiber liquid junction provides a consistent flow rate for stable readings in aqueous solutions.
Ideal Applications
-
General Water Analysis: Drinking water, cooling towers, and wastewater.
-
Hydroponics & Agriculture: Nutrient solutions and field sampling.
-
Education: High school and university chemistry labs.
-
Aquaculture: Fish farming and aquarium monitoring.
-
Swimming Pools: Routine maintenance testing.
Technical Specifications
|
Feature |
Specification |
|---|---|
|
Model |
Bante E201-BNC |
|
Body Material |
Epoxy (Plastic) |
|
pH Range |
0.00 – 14.00 pH |
|
Temperature Range |
0 – 60°C (32 – 140°F) |
|
Liquid Junction |
Fiber |
|
Reference System |
Ag/AgCl (Single Junction) |
|
Electrolyte |
Gel (Sealed / Non-refillable) |
|
Temperature Sensor |
None (Requires separate ATC probe or Manual Compensation) |
|
Connector |
Standard BNC |
|
Cable Length |
1 Meter |
|
Dimensions |
120mm (Length) × 12mm (Diameter) |
Expert Tip: Compatibility Check
The E201-BNC connects via a BNC plug (a round, twist-lock connector).
-
Does your meter have a separate Temperature probe? If yes, this is the correct replacement pH electrode.
-
Does your meter usually use an "All-in-One" probe? If your previous probe had a built-in temperature sensor (often indicated by a second connector or a multi-pin plug), the E201 will measure pH correctly, but you will need to rely on your meter's Manual Temperature Compensation (MTC) settings.
In the Box:
-
1x Bante E201-BNC pH Electrode
-
1x Storage Soaker Bottle (Pre-filled with KCL solution)
