Aneng A3008 - Mini pen multimeter - 6000 counts
Product Resources
$60.00
Quantity: 2
You may also like

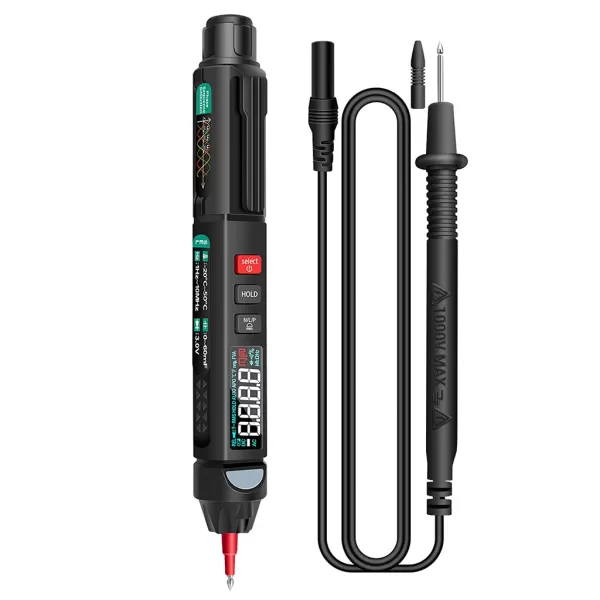

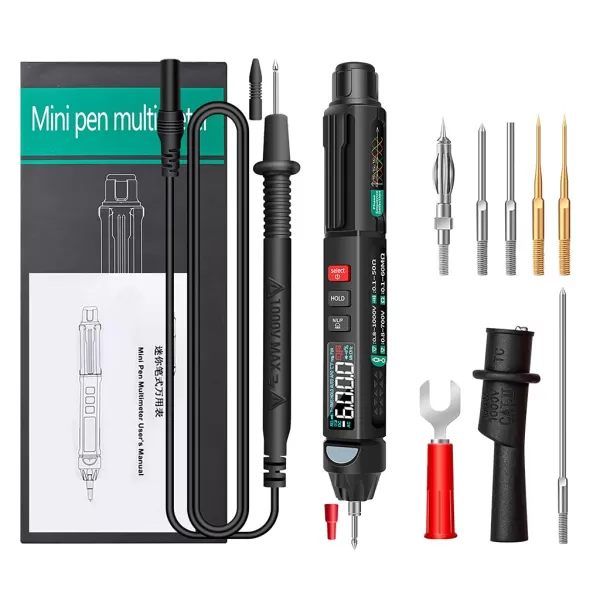

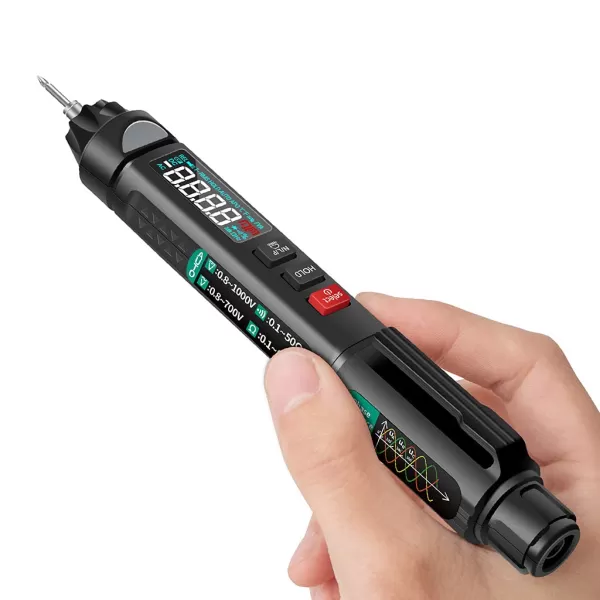

The Aneng 3008 is a 3 5/6 digit, true RMS, auto-ranging multimeter in a compact pen-style format. It features automatic function identification for DC/AC voltage and resistance, as well as manual selection for capacitance, diode testing, continuity, and non-contact voltage detection (NCV). The device is powered by a single AAA 1.5V battery and offers a large LCD display with a backlight.
Technical Specifications:
|
Measurement
|
Ranges/Details |
| DC Voltage | 600.0mV / 6.000V / 60.00V / 600.0V / 1000V |
| AC Voltage | 6.000V / 60.00V / 600.0V / 750V |
| Resistance | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ |
| Capacitance | 10nF / 100nF / 1uF / 10uF / 100uF / 1mF / 10mF / 60mF |
| Diode Test | Forward voltage drop |
| Continuity Test | Buzzer sounds for resistance < (50±20)Ω |
| NCV Detection | Yes |
| Sampling Rate | Approx. 3 times/second |
| Display | LCD |
| Power Supply | AAA 1.5V x 1 |
| Dimensions | 170mm x 24mm x 21mm |
| Weight | Approx. 50g (with battery) |
