Zoyi DQ-02 LCR Meter and Battery Analyser
Product Resources
Unlock Accurate Component & Battery Insights. The Zoyi ZT-DQ02 is a handheld, high-precision digital LCR bridge designed for professionals and enthusiasts who demand accuracy in measuring resistances, capacitances, inductances, and their characteristic parameters. It also integrates a dedicated function for precise battery voltage and internal resistance measurement, making it a truly versatile tool for your test bench or tool bag.
Key Features & Benefits:
-
Comprehensive LCR Measurement:
- Accurately measure main parameters: Inductance (L), Capacitance (C), Resistance (R), and Impedance (Z).
- Analyze sub-parameters: Reactance (X), Dissipation Factor (D), Quality Factor (Q), Phase Angle (θ), and Equivalent Series Resistance (ESR) to fully characterize components.
- Selectable test frequencies (100Hz, 120Hz, 1KHz, 10KHz, 100KHz) and levels (0.1V, 0.3V, 0.6V) for diverse testing needs.
-
Highest LCR measurement accuracy of 0.3%.
-
Dedicated Battery Health Assessment:
- Precisely measure battery voltage (up to DC 100V) and internal resistance using a dedicated aviation plug input for secure connections.
- Achieve battery internal resistance accuracy of 0.5% and voltage accuracy of 0.2%.
-
Enhanced Accuracy & Usability:
- Utilizes four-wire measurement input for significantly improved LCR measurement accuracy and reliability.
- Clear 2.8-inch TFT high-definition display (320×240) shows primary, secondary parameters, and settings simultaneously.
- Adjustable measurement speeds (slow, medium, fast).
- Features Auto, Series, and Parallel equivalent modes.
- Data Hold, Recording Mode (PC synchronization via SCPI), and Tolerance Mode for batch screening.
Technical Specifications:
|
Feature |
Specification |
|
LCR Measurement Functions |
Auto, Resistance, Capacitance, Inductance, Impedance, Electrolytic Capacitor |
|
Main LCR Parameters |
L, C, R, Z |
|
Sub-Parameters |
X, D, Q, θ (Phase Angle), ESR |
|
Equivalent Mode |
Series, Parallel, Auto |
|
Test Frequencies |
100Hz, 120Hz, 1KHz, 10KHz, 100KHz |
|
Test Levels (LCR) |
0.1V, 0.3V, 0.6V |
|
Highest LCR Accuracy |
0.3% |
|
Measurement Speed |
Adjustable (Slow, Medium, Fast - approx. 1s, 2s, 4s per reading) |
|
Output Impedance (LCR) |
100Ω |
|

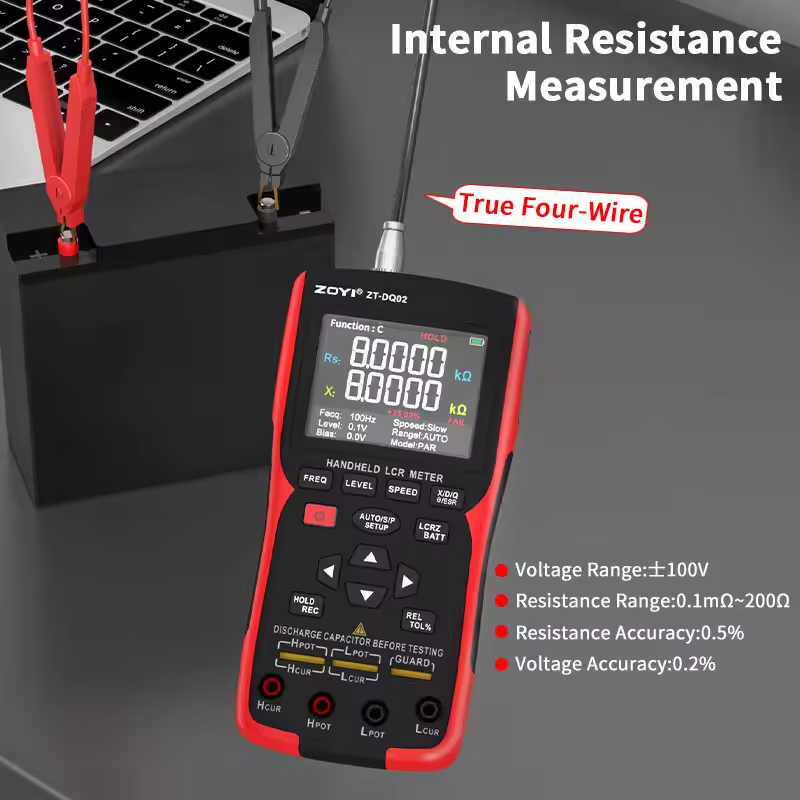

Battery Internal Resistance Measurement |
|
|
Measurement functions |
Internal Resistance, Voltage |
|
Voltage Range |
±100V DC (Max) |
|
Resistance Range |
0.1mΩ to 200Ω (Display shows up to 2000Ω in example image, but spec table says 200Ω) |
|
Resistance Accuracy |
0.5% |
|
Voltage Accuracy |
0.2% |
|
General |
|
|
Display |
2.8-inch TFT, 320×240 resolution |
|
Dimensions |
177×89×40mm |
|
Weight |
345g (without battery) |
|
Battery Type |
2000mAh lithium battery (user replaceable 18650 lithium cell) |
|
Operating Temperature |
0 to 40∘C |
|
Operating Humidity |
< 75% |
|
Other Features |
|
|
Data Hold |
Yes |
|
Auto Power Off |
Yes, adjustable |
|
Low Battery Indication |
Yes |
|
Language |
Chinese, English |
|
Firmware Upgrade |
Via USB (TYPE-C) |

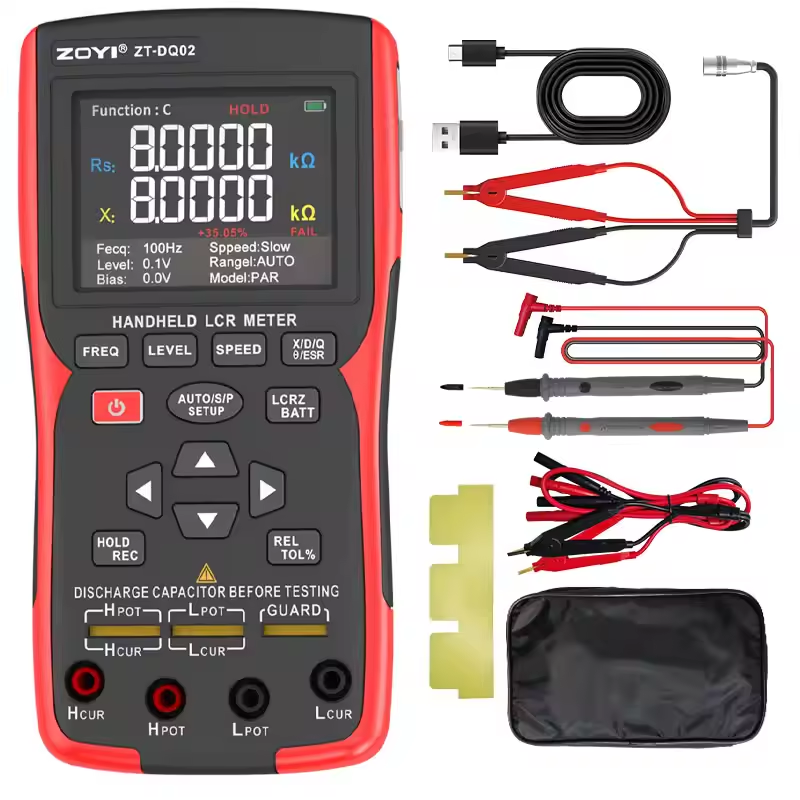

Package Includes:
- Zoyi ZT-DQ02 LCR Meter
- 4-wire Kelvin Clips (for LCR measurement)
- Aviation Plug Clips (for battery measurement)
- Multimeter Test Leads
- TYPE-C Data Cable
- User Manual
- Soft case
Important Safety & Usage Notes:
- Discharge capacitors before LCR measurement.
- Do not apply voltage to the LCR input ports.
- Ensure battery voltage does not exceed DC 100V for internal resistance tests; AC voltage is prohibited.
- Use the correct input ports for LCR and battery measurements to avoid damage.
- Pay attention to polarity and avoid short circuits when measuring batteries.
