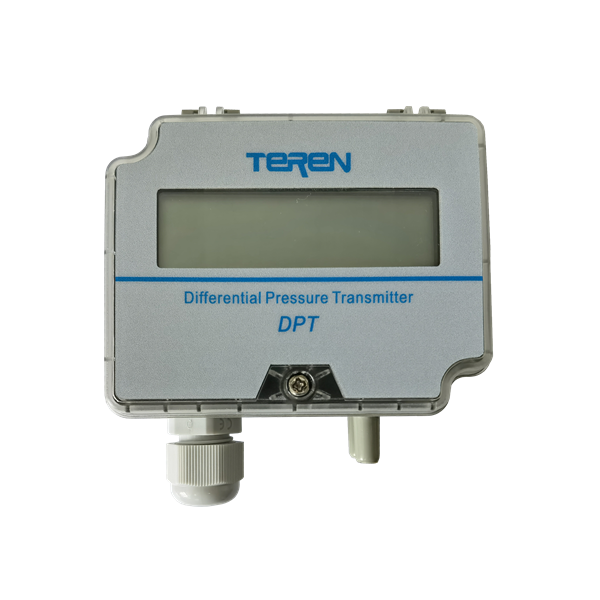

Teren DPT Series Differential Pressure Transmitters

The Teren DPT Series Differential Pressure Transmitter is engineered for versatility and precision in air and non-corrosive gas monitoring. Utilizing a high-accuracy MEMS sensor, this transmitter is the ideal solution for measuring pressure in fans, blowers, filters, and clean rooms. Its standout feature is unparalleled field flexibility, allowing technicians to adapt the unit to specific site requirements with ease.

We understand that control system requirements can change. The Teren DPT series is designed as a highly adaptable solution, providing the customizable performance needed to maintain optimal conditions in any facility, from pharmaceutical manufacturing to HVAC systems.

Key Features and Solutions:

• Field-Selectable Ranges & Units: Technicians can easily re-scale the transmitter's output to one of several pre-set ranges using internal jumpers. The engineering units (Pa, kPa, mbar, mm.w.c., in.w.c.) are also selectable, making a single device suitable for multiple applications and reducing inventory needs.

• Tamper-Resistant Configuration: All jumpers and configuration buttons are located inside the housing, preventing unauthorized changes to critical settings once the unit is installed and commissioned.

• Adjustable Signal Damping: The response time can be adjusted (0.5 to 30s) to dampen the output signal, ensuring a stable reading in environments with fluctuating pressure.

• Bi-Directional Measurement: Specialized "Z" models are available for measuring both positive and negative differential pressure (e.g., -30 to +30 Pa), perfect for monitoring room pressurization in clean rooms and isolation rooms.

• Easy Zero Point Calibration: An external "ZERO" button allows for quick and simple zero-point resets without opening the cover, ensuring sustained accuracy over the long term.

• Clear Local Display: The optional 5-digit LCD provides a clear, immediate readout of the pressure and selected unit, simplifying setup and local monitoring.

• Versatile Mounting Options: Available in standard wall-mount (DPT) and stainless steel flush-mount (DPT-F) versions, suitable for installation in control panels or directly in clean room environments.

Common Applications:

• HVAC Duct Static Pressure Monitoring

• Clean Room and Laboratory Pressure Control

• Filter Status Monitoring

• Biological Safety Cabinets and Fume Hoods

• Fan and Blower Pressure Measurement

• Furnace Draft Control

Do you need a pressure transmitter that can adapt to your unique and evolving needs? Contact our team to discuss how the DPT series can provide a flexible and reliable solution for your application.
