Supmea WSR550 80GHz Radar Liquid Level Transmitter

°The SUP-WSR550 Radar Level Transmitter is an advanced, non-contact level measuring instrument engineered for precise and reliable monitoring of liquid levels across a multitude of industrial applications. Operating on Frequency Modulated Continuous Wave (FMCW) radar technology within the 76-81GHz range, this transmitter delivers robust performance even in challenging environments. Its design is particularly optimized for liquid applications, ensuring accurate measurements for various vessel types and media.

Key Features:

• High-Accuracy Measurement: Delivers exceptional accuracy for liquid level measurement, typically ±2mm, ensuring precise monitoring and control.
• Versatile Liquid Measurement: Suitable for a wide range of liquid applications, including acids, bases, and other corrosive media.
• Advanced FMCW Technology: Utilizes 76-81GHz frequency modulated continuous wave radar for reliable and stable readings.
• Robust in Challenging Conditions: Designed to perform reliably in applications with stirring, steam, and harsh temperature environments (up to +200°C, with high-temperature versions).
• User-Friendly Interface & Display: Equipped with a 128×64 dot matrix display with backlight for easy on-site operation and programming.

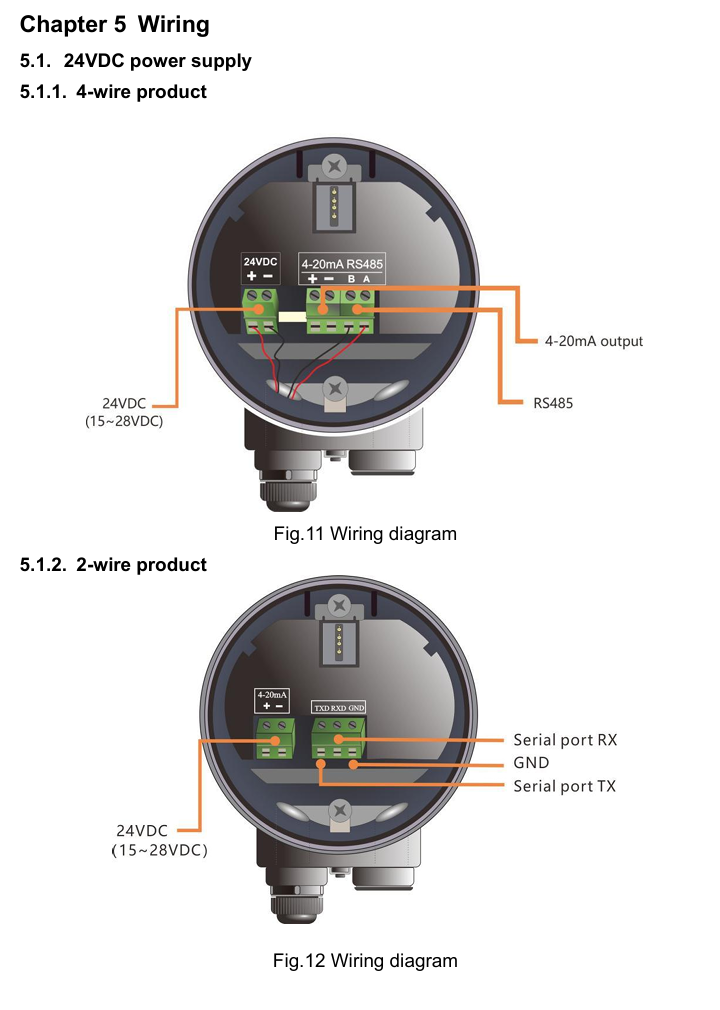

• Flexible Output Options: Provides multiple communication outputs including 4~20mA (single or dual channel), HART, MODBUS, and RS-485 to integrate seamlessly with your control systems.
• Bluetooth Connectivity: Supports Bluetooth debugging functionality for convenient setup and configuration.
• Low Dielectric Constant Media Support: Capable of measuring liquids with low dielectric constants (e.g., ≥2, with specific models supporting <1.5 via TBF tank bottom reflection).
• Durable Construction: Features IP67 ingress protection and options for aluminum alloy or stainless steel shell material, ensuring longevity in industrial environments.

Applications:

The SUP-WSR550 Radar Level Transmitter is an ideal solution for liquid level measurement in various industries, including but not limited to:

• Chemical Industry: Monitoring levels of various chemicals, including acids, bases, and other corrosive media.
• Sewage Treatment: Accurate level measurement in water and wastewater processing tanks.
• Pulp and Paper Industry: Level control in various stages of paper production.
• Boiler Engineering: Monitoring water levels in boilers.
• General Liquid Storage: Reliable level indication for tanks holding various liquids.

Technical Specifications:
