Supmea PM356 Gauge/Absolute Pressure tx (Ranges cover -1 to 600 bar)
Product Resources
SKU:
IPT-G-245-1BarA-14BSPG
$600.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like
Metrology grade accuracy. Economy pricing. No software required.

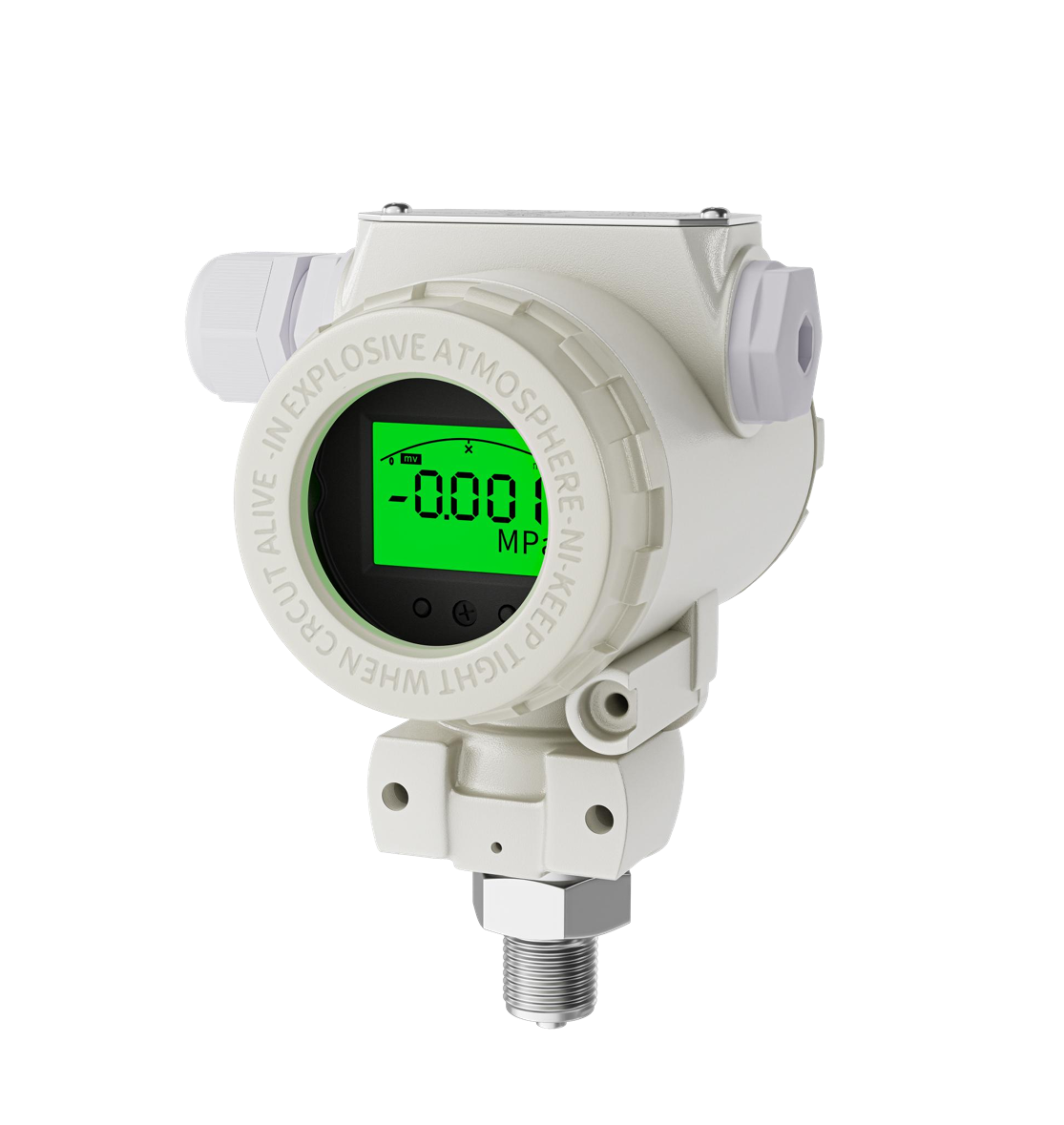

The Supmea PM356 bridges the gap between basic transducers and high-end process transmitters. In a heavy industrial environment, you need flexibility without the hassle of proprietary software or communication dongles. The PM356 features an integrated LCD display with push-button configuration, allowing you to zero, span, select the engineering units, and re-range the instrument right at the process point.
Designed for general industrial applications and hydrostatic level measurement, it delivers 0.25% Full Scale accuracy (standard on ranges ≥ 100 kPa) and a robust 316L Stainless Steel wetted structure. Whether you are monitoring pump discharge pressure or measuring liquid level in an open tank, the PM356 absorbs the complexity of setup, giving you immediate operational certainty.
Other configurations are available on request for high-temperature applications (up to 250 °C), different process threads/connections, output types etc.
Key Features & Benefits
-
Local Configuration: Freely re-range the output (Turndown) and change engineering units (kPa, MPa, bar, psi, mH2O, etc.) via the front-panel buttons.
-
High Accuracy: Standard 0.25% FS accuracy for ranges ≥ 100 kPa ensures precise control for critical loops.
-
Loop Powered: Operates on standard 2-wire 4...20 mA loop power, compatible with all PLCs and process indicators.
-
Visually Clear: Integrated backlit LCD display ensures readability in dark plant rooms or bright outdoor conditions.
-
Robust Build: Aluminum alloy housing (IP65) with 316L Stainless Steel diaphragm and process connection for broad chemical compatibility.
Technical Specifications
|
Feature |
Specification |
|---|---|
|
Output Signal |
4...20 mA (2-wire) |
|
Power Supply |
12...32 VDC |
|
Accuracy (Standard) |
± 0.25% FS (Ranges ≥ 100 kPa) |
|
Accuracy (Low Range) |
± 0.5% FS (Ranges < 100 kPa) |
|
Process Connection |
G1/4 (1/4" BSPP) Standard or 2" Tri-Clamp |
|
Wetted Materials |
316L Stainless Steel |
|
Housing Material |
Aluminum Alloy |
|
Medium Temperature |
-20...85 °C |
|
Ingress Protection |
IP65 |
Target Applications
-
Industrial Process: Pipeline pressure monitoring for water, air, oil, and steam.
-
Level Measurement: Hydrostatic tank level (configure units to 'm' or 'mm' for direct level readout).
-
Hygienic/Sanitary: Autoclaves and food/beverage lines (using Tri-clamp variants).
-
Pump Control: Constant pressure water supply and discharge protection.
Expert Tip - Turndown: We recommend no more than 3:1 turndown ratio to ensure measurement accuracy conforms with the specification. In other words, a transmitter can be ranged to 1/3 of its full scale range without significantly compromising accuracy.
