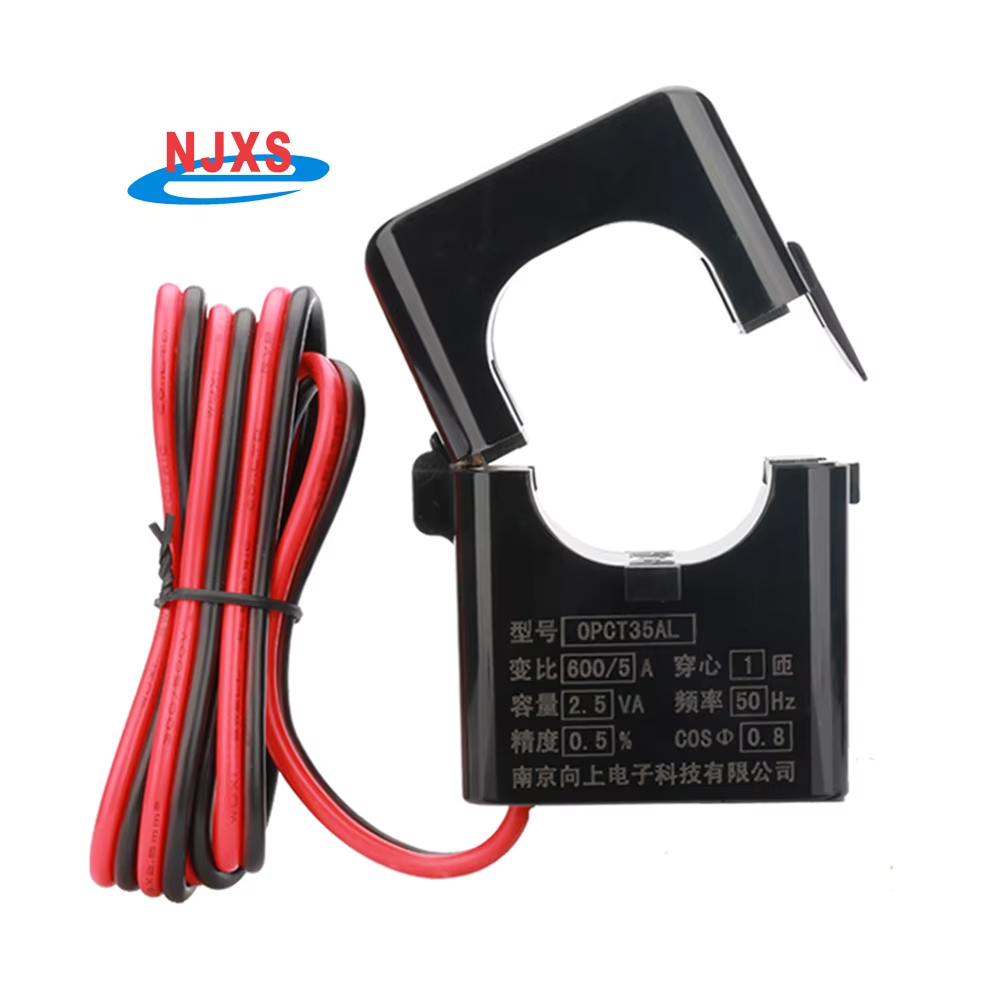

Split Core Current Transformer
Product Resources
No resources available for this product.
SKU:
N/A
$80.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like
This series of split core current transformers features a 5-amp secondary winding.
OPCT35AGL (5A) Standard Current Transformer
Technical Specifications
|
Feature
|
Specification |
| Hole diameter | 35mm |
| Insulation resistance | >500MΩ |
| Rated Voltage | 0.66/0.72kV |
| Dielectric withstand | 2kV/50Hz/1min |
| Work frequency | 50/60Hz |
| Environmental | -40°C—+85°C |
| Flame retardant properties | UL94-V0 |
Used for: Power grid project transformation, electric energy metering, load current monitoring.
