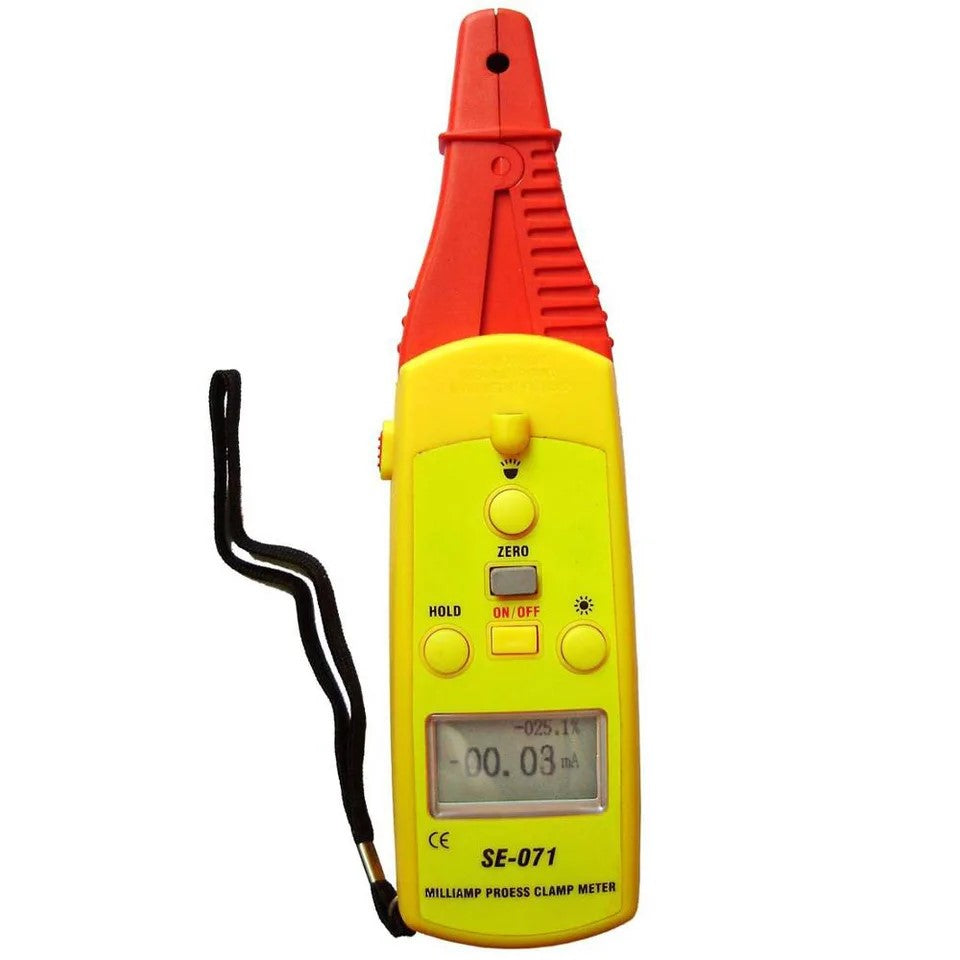

Kilter SE-071 - Current Clamp Meter for 4-20 mA Process Loops
Product Resources
No resources available for this product.
You may also like
This tool allows for easy measurement of 4-20 mA signals without disrupting the current loop. It has a user-friendly interface, high resolution of two decimals, and is well protected for use in industrial settings.
FEATURES: Immune to magnetic field interference, autozero on start-up, simultaneous display of current in mA and percentage of span (4-20 mA = 0-100%), data hold function, display backlight, and spotlight LED.
SPECIFICATIONS
|
Model No. |
SE-071 |
|
Current Ranges |
±40.00 mA |
|
Resolution |
0.01 mA |
|
Accuracy |
±0.5% of reading ±5 digits |
|
Maximum Reading |
±40.00mA |
|
Influence of Earth's Field |
< ±0.20 mA |
|
Battery |
9V Alkaline, IEC LR6 |
|
Size (H X W X L) |
59 mm x 38 mm x 212 mm |
|
Weight |
260g (Including battery) |
|
Operating Temperature |
-10 to 50 °C |
|
Storage Temperature |
-25 to 70 °C |
|
Operating Humidity |
< 90 % @ <30 °C <75 % @ 30 to 50 °C |
