Niimbot M Series 12 x 38 mm PVC Cable Flag Labels

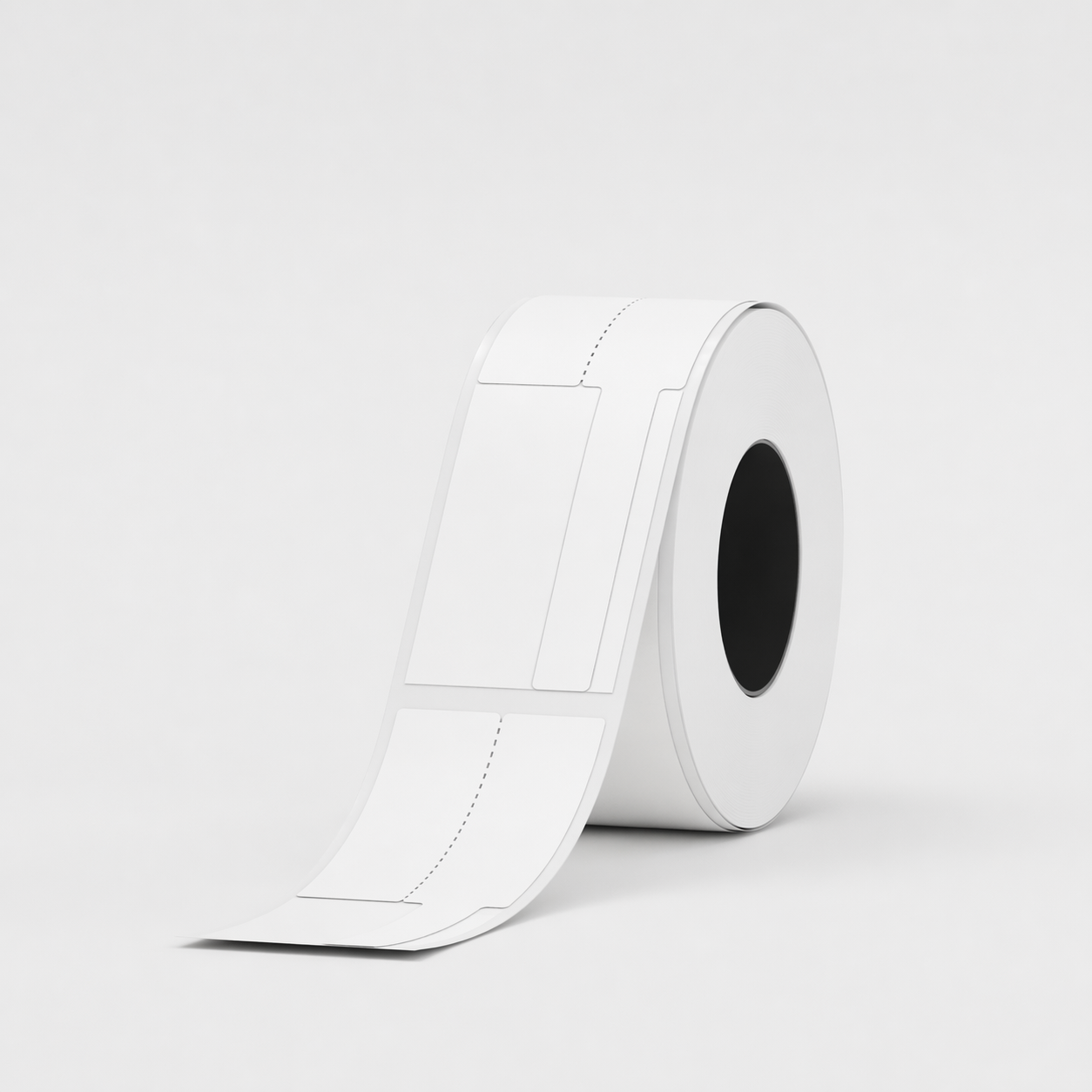

Niimbot M-Series 12 x 38 mm (+ 40 mm Tail) Compact PVC Cable Flag Labels

This compact 12 x 38 mm (finished dimension) PVC flag, paired with a flexible 40 mm tail, provides a low-profile footprint that sits flat within cable trays while preserving enough linear run for clear alphanumeric addressing and machine-readable identification.

The Consequence of Identification Failure in High-Density Panels

When tracing faults in automated industrial systems, a missing or unreadable label in a control cabinet can translate directly to catastrophic downtime. If a technician accidentally disconnects the wrong sensor loop during a hot-swap—due to a flagged label that has fallen off or snapped—it can trigger a cascade of communication failures across the industrial network.

Under the AS/NZS 3000 wiring rules and AS/NZS 61439 (low-voltage switchgear assemblies), all control and communication wiring must remain permanently identified. A label that degrades under thermal load or falls off because of physical stress violates core safety and compliance baselines, introducing critical risks during plant maintenance and audit cycles.

Technical Specifications

Performance Ratings

• High-Density Cabinet Fit: 5/5 (Low-profile design avoids blocking component faces and status LEDs)
• Vibration & Flex Fatigue Resistance: 5/5 (Extremely pliable PVC prevents tail cracking or work-hardening from high-frequency industrial vibration)
• Adhesive Backing Integrity: 5/5 (Tail-to-tail wrap configuration prevents flagging on low-energy plastic cable jackets)
• Moisture & Chemical Resilience: 4/5 (Substrate remains stable under persistent exposure to water, industrial cleaning agents, and airborne aerosols)

The Physics of the Compact Profile

Constructed from premium PVC, the material displays high conformability and minimal elastic memory. This means that once the adhesive tail is pressed together around the wire, there is no mechanical force pulling the flags apart. The adhesive bond is never subjected to peeling stress, even when used on miniature M8 or M12 patch cables.

Functional Color-Coding (The AS/NZS & ISO Protocol)

This compact flag series is available in five high-contrast finishes to satisfy the strict requirements of plant-wide colour codification schemas:

• White: Standard configuration for routine analog loops, PLC digital inputs/outputs, and general instrumentation addressing.
• Red: Reserved strictly for Emergency Stop circuits, interlocks, fire protection loops, and critical safety instrumentation systems (SIS).
• Yellow: High-visibility warning indicators for mains-voltage feedback loops or hazardous area telemetry lines under AS/NZS IEC 60079.
• Green: Explicitly designated for functional equipotential bonding leads, reference grounds, and protective earth cabling.
• Blue: Aligns with intrinsically safe (IS) circuits, low-voltage communication buses, or isolated instrumentation loops.

Operational Applications

1. PLC Marshalling Cabinets & I/O Terminal Blocks
Designed to fit cleanly inside high-density terminal blocks. The 12 mm flag width matches the standard vertical pitch of industrial din-rail terminals, preventing the flags from overlapping and obscuring adjacent wire numbers.

2. M8 & M12 Sensor Cabling
Perfect for marking the thin-diameter cables of proximity sensors, limit switches, and photoelectric cells. The 40 mm tail wraps securely around these narrow leads, leaving a clear, legible flag suspended at the termination point.

3. Pneumatic Solenoid Manifolds
Allows for clean, individual identification of valve signal wires. The PVC construction is highly resistant to the micro-mists of pneumatic lubricating oils common in compressed air systems.

Hardware Compatibility

Fully compatible with Niimbot M-Series field printers. The printers use built-in optical sensors to recognize the roll’s index marks, ensuring precise alignment of the 12 x 38 mm print boundary. Because it uses direct thermal chemistry, technicians do not have to carry or swap delicate ribbon cartridges when changing color rolls on-site.
