DYZL-107 Tension Sensor with Integrated Rollers (2-100 kg)

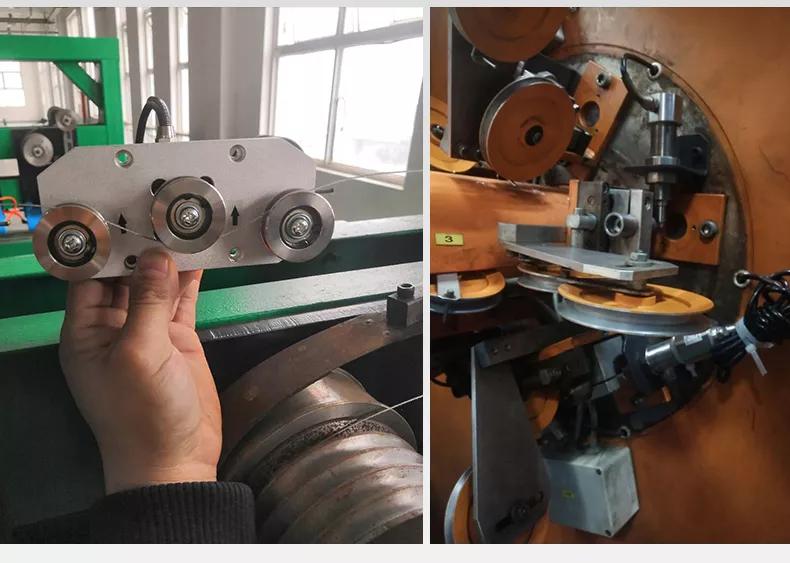

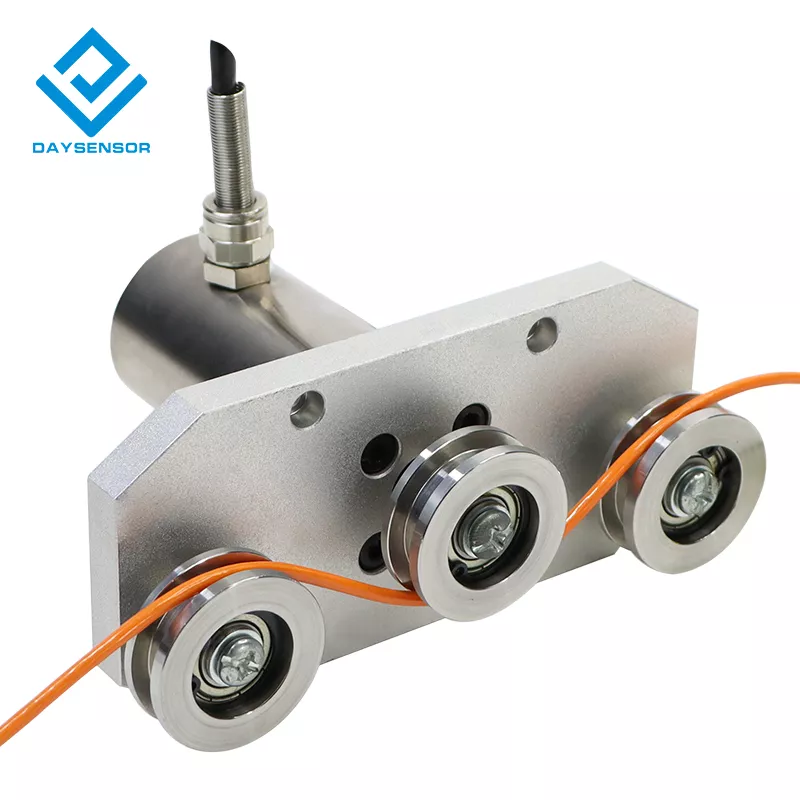

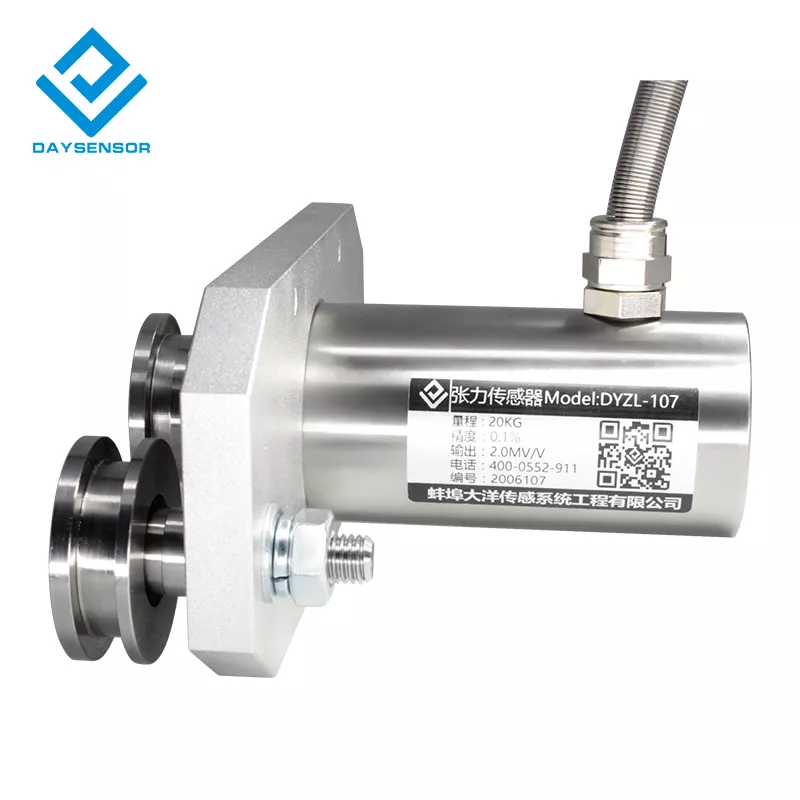

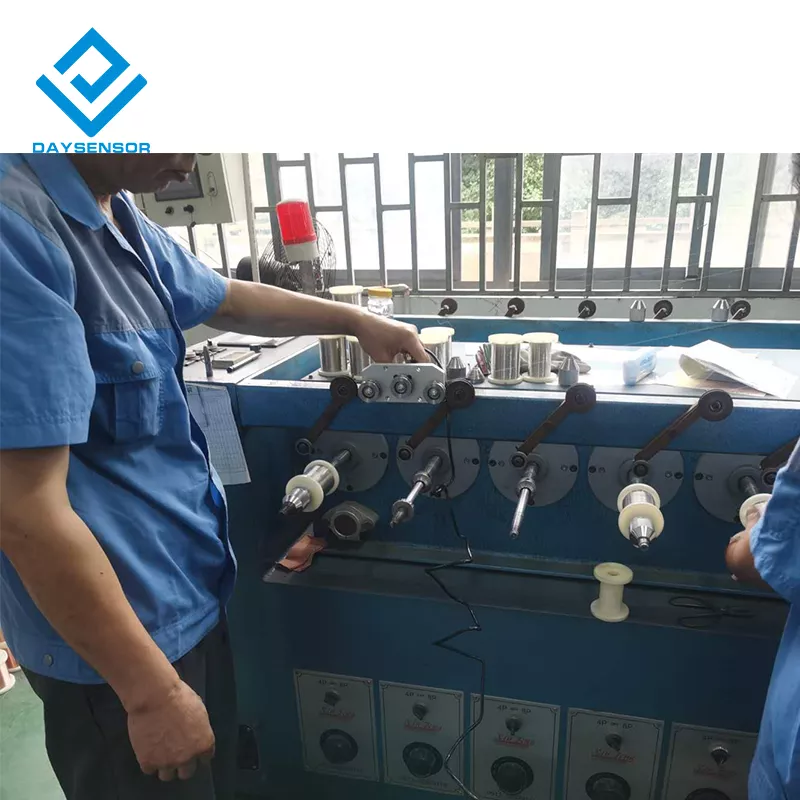

The DYZL-107 Tension Sensor is a specialized force sensor designed for accurate and dynamic measurement of tension in various applications, such as wires, cords, tapes, and other web materials. It features integrated rollers for smooth and reliable operation, ensuring consistent performance in demanding industrial environments.
Key Features:

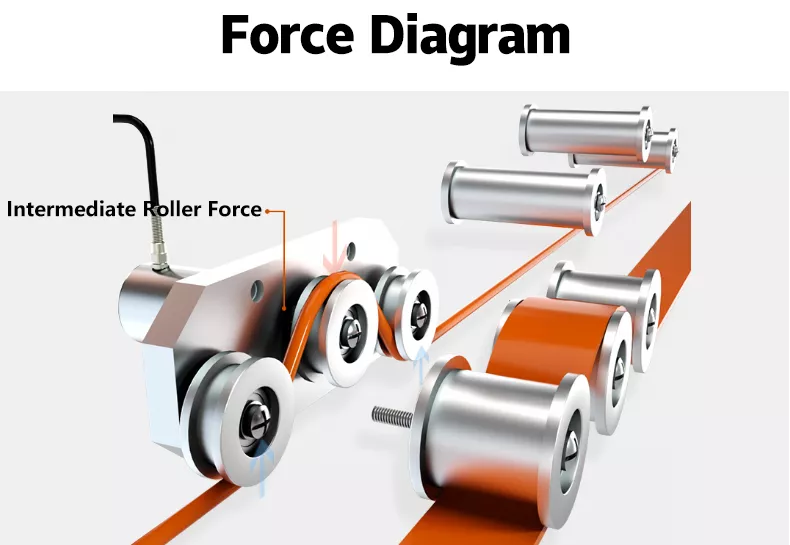

- Integrated rollers for precise and stable tension measurement.
- Versatile design accommodates various wire, cord, and tape materials.
- Wide range of capacities available, from 2 to 100 kg.
- High stability and anti-interference capabilities for reliable performance.
- Easy to assemble and install in different systems.
- Quality stainless steel construction for durability and long service life.
Technical Specifications:
| Parameter | Value |
| Range | 20-300 N |
| Material | 42CrMoA Alloy Steel |
| Output Sensitivity | 2.0 ± 0.1% mV/V |
| Zero point output | ± 1 %FS |
| Non-linearity | 0.1 %FS |
| Hysteresis | 0.1 %FS |
| Repeatability | 0.1 %FS |
| Creep (30 min) | 0.1 %FS |
| Temperature Sensitivity Drift | 0.05 %FS / 10 °C |
| Zero point Temperature Drift | 0.05 %FS / 10 °C |
| Impedance | 350 Ω |
| Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
| Service voltage | 5 - 15 Vdc |
| Operating Temperature Range | -20 - 80 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Cable | 5 core x 3m |
| Cable Limit Tension | 10 kg |
| Response Frequency | 1 kHz |
| TEDS | Selectable |
Note: High temperature sensors are available, with a maximum operating temperature of 150 °C. High impedance sensors can be provided with an output impedance of 1000 Ω.
