DYZHL Tension Sensor (10 - 500N) for Wire/Rope/Tape
Product Resources
SKU:
INS-216-1
$400.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like
The DYZHL Tension Sensor is a high-precision, versatile instrument designed for dynamic measurement of tension in various industrial applications. It is widely used in the production of fiber, yarn, cable, tape, and other wire-like materials. This sensor offers excellent stability, easy assembly, and anti-interference capabilities, making it a reliable choice for tension measurement in demanding industrial environments.
Key Features
- High Stability: Provides stable and accurate tension measurements for consistent performance.

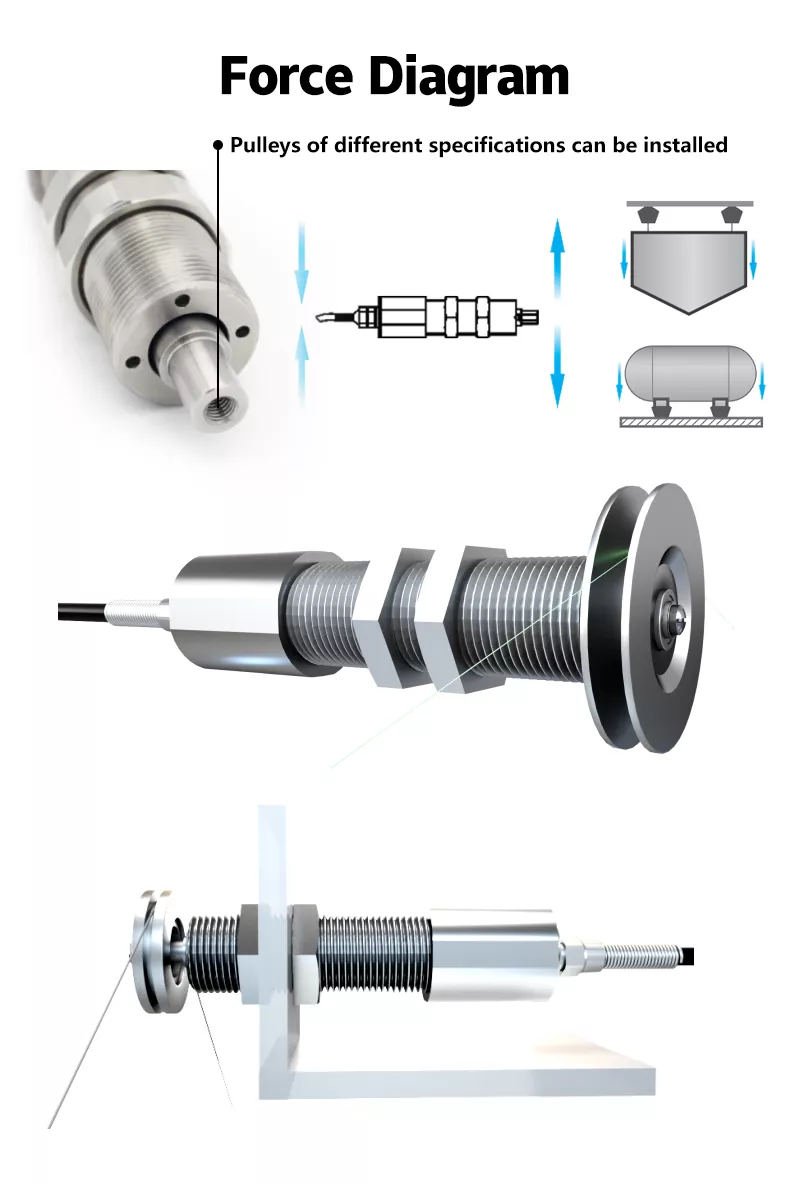

- Versatile: Accommodates different pulley specifications for various applications.
- Easy Assembly: Simple and straightforward installation for quick integration into systems.
- Anti-Interference: Delivers stable signals even in the presence of interference.
- Durable Construction: Made with quality stainless steel for enhanced longevity.
- Wide Applications: Suitable for tension measurement in fiber, yarn, cable, tape, and wire production equipment.
Technical Specifications
| Parameter | Value |
| Range | 0-500N |
| Material | Alloy Steel |
| Output Sensitivity | 2.0 ± 0.05 mV/V |
| Zero point output | ± 1 %FS |
| Non-linearity | 0.2 %FS |
| Hysteresis | 0.2 %FS |
| Repeatability | 0.2 %FS |
| Creep (30 min) | 0.3 %FS |
| Temperature Sensitivity Drift | 0.1 %FS / 10 °C |
| Zero point Temperature Drift | 0.1 %FS / 10 °C |
| Impedance | 350 Ω |
| Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
| Service voltage | 5 - 15 Vdc |
| Operating Temperature Range | -20 - 80 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Cable | 5 core x 3m |
| Cable Limit Tension | 10 kg |
| Response Frequency | 10 kHz |
Dimensions
