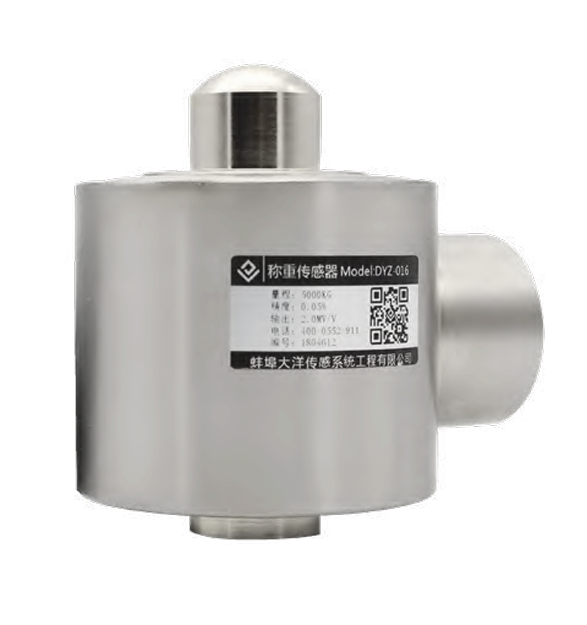

DYZ-016 Column Type Load Cell 50 ton
Product Resources
SKU:
N/A
$725.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like
The DYZ-016 Column Type Load Cell is a robust and versatile force sensor designed for heavy-duty weighing applications in various industrial settings. Its simple structure, high accuracy, and reliable performance make it an ideal choice for a wide range of applications, including rail weighbridges, bucket scales, platform scales, and other electronic weighing equipment.
Key Features
- Simple Structure: Cost-effective and easy to integrate.
- High Accuracy: Provides precise and reliable force measurements.
- Durable Construction: Made of stainless steel for reliable performance in various environments.
- Versatile Applications: Suitable for various industries and applications, including rail weighbridges, bucket scales, and platform scales.
- Improved Sealing: The sealing diaphragm design enhances sealing performance and prevents damage to the sensor shell.
Technical Specifications
| Parameter | Value |
| Range | 0-50T |
| Material | Stainless Steel |
| Output Sensitivity | 1.5-2.0mV/V |
| Impedance | 350/700Ω |
| Zero point output | +2%FS |
| Non-linearity | 0.5%FS |
| Hysteresis | 0.5%FS |
| Repeatability | 0.5%FS |
| Creep (30 min) | 0.05%FS |
| Temperature sensitivity drift | 0.05%F.S./10°C |
| Zero point Temperature drift | 0.05%F.S./10°C |
| Insulation Resistance | ≥5000MΩ/100VDC |
| Service voltage | 5-15V |
| Operating Temperature Range | -20-65°C |
| Safe overload | 150% |
| Extreme overload | 200% |
| Cable line specifications | Φ5x2m |
| Cable limit tension | 10kg |
| Response frequency | 10kHz |
Dimensions
