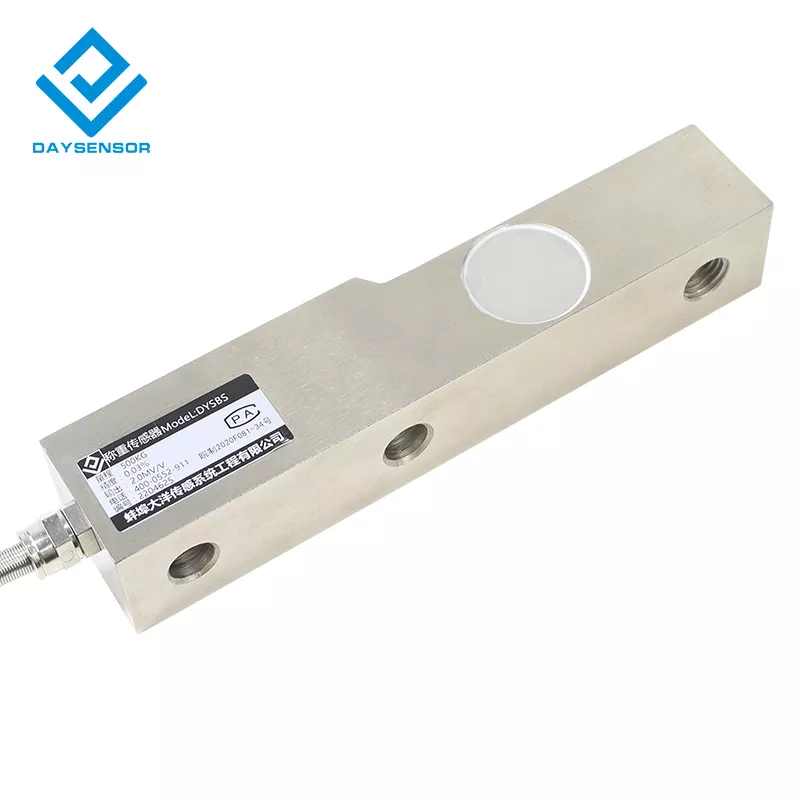

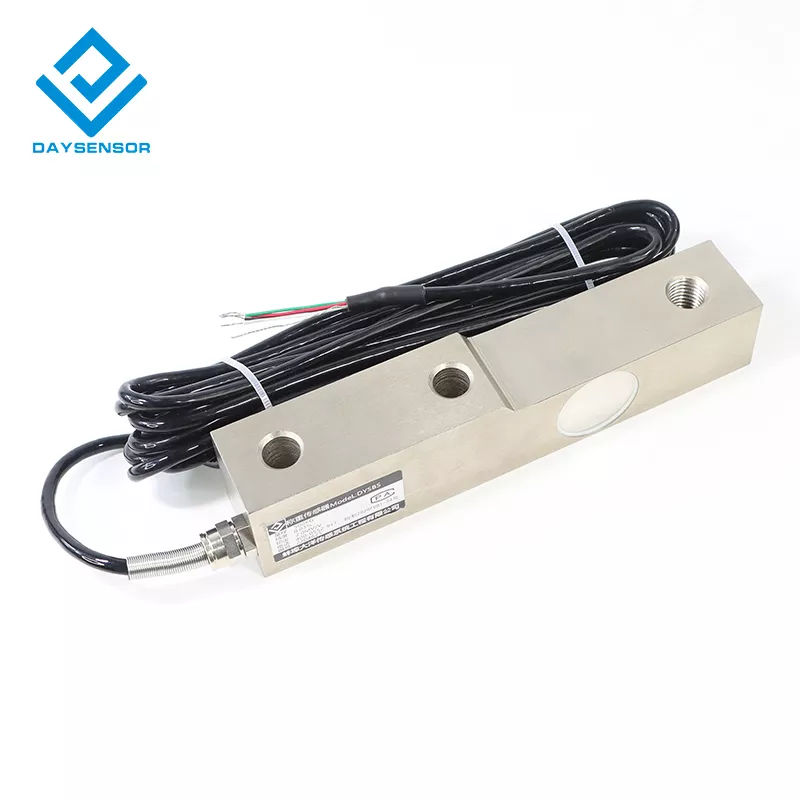

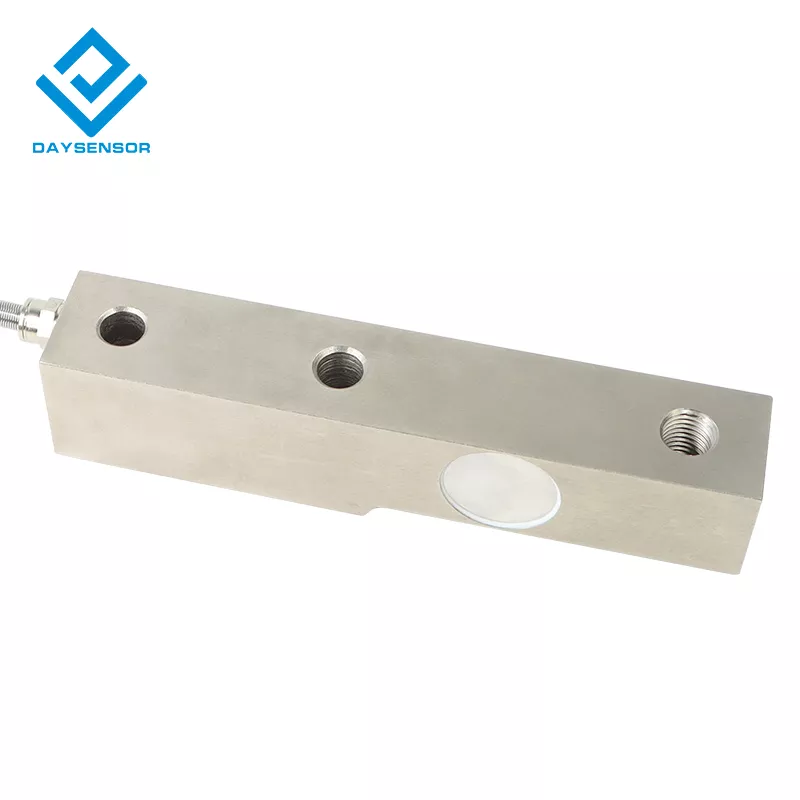

DYSBS Shear Beam Load Cell for Packaging Machines (500 kg - 3 ton)
Product Resources
SKU:
INL-H-205-1
$425.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like
The DYSBS Shear Beam Load Cell is designed for high-precision force measurement in various industrial applications. Its robust construction and shear beam design ensure accurate and reliable performance in demanding environments. This load cell is constructed from alloy steel or stainless steel, offering durability and longevity.
Key Features
- Simple structure and convenient installation
- Reliable use and long service life
- High cost-effectiveness

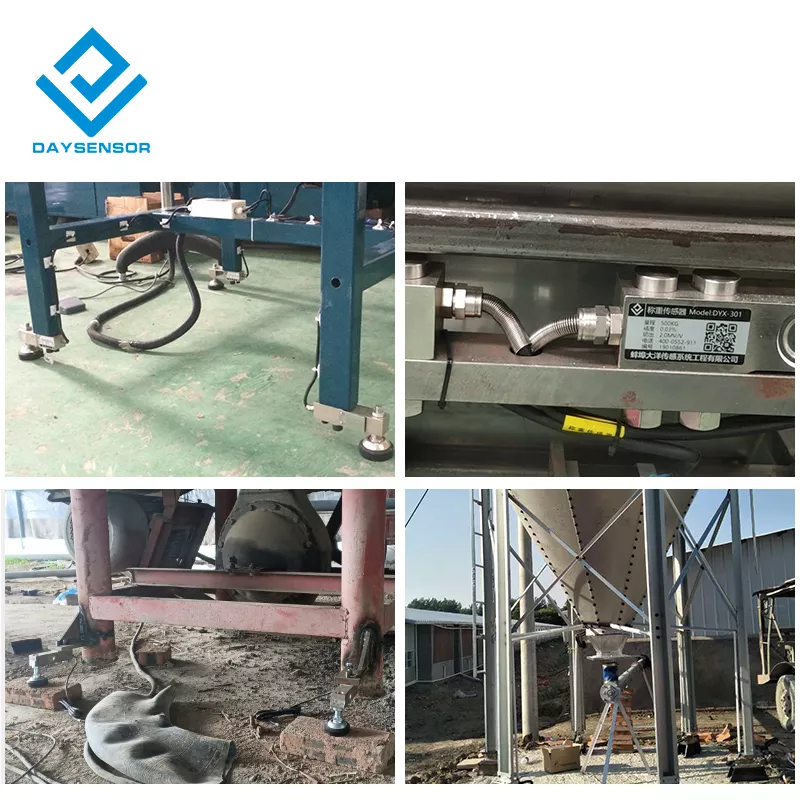

- Ideal for use in automobile scales, platform scales, and industrial scales
- Wide range of capacities available, from 0.3 to 3 tons
- High accuracy and stability, with non-linearity of 0.03%FS
- Operating temperature range: -20°C to +80°C
Technical Specifications
| Parameter | Value |
| Range | 0.3 - 3 tons |
| Measurement Type | Tension and Compression |
| Material | Alloy Steel / Stainless Steel |
| Operating Temperature Range | -20 - 80 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Output Sensitivity | 2.0 ± 0.02 mV/V |
| Excitation Voltage | 5 - 15 Vdc |
| Impedance | 350 Ω |
| Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
| Cable | 5 core x 3m |
| Creep (30 min) | 0.02 %FS |
| Zero Point | ± 1 %FS |
| Non-linearity | 0.03 %FS |
| Hysteresis | 0.03 %FS |
| Repeatability | 0.02 %FS |
| Zero point Temperature Drift | 0.03 %FS / 10 °C |
| Sensitivity Temperature Drift | 0.03 %FS / 10 °C |
| Response Frequency | 10 kHz |
Dimensions
| Parameter | Value |
| Length (L) | 203 mm |
| Width (B) | 95 mm |
| Height (H) | 36.5 mm |
| Hole Diameter (D2) | 13 mm (0.3-2 T), 15 mm (3 T) |
| Mounting Hole Distance | 98 mm |
| Thread Size | M16 |
