DYHW-113 13mm Ø Miniature Load Cell (5-100 kg)
Product Resources
SKU:
INL-M-228-1
$175.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like

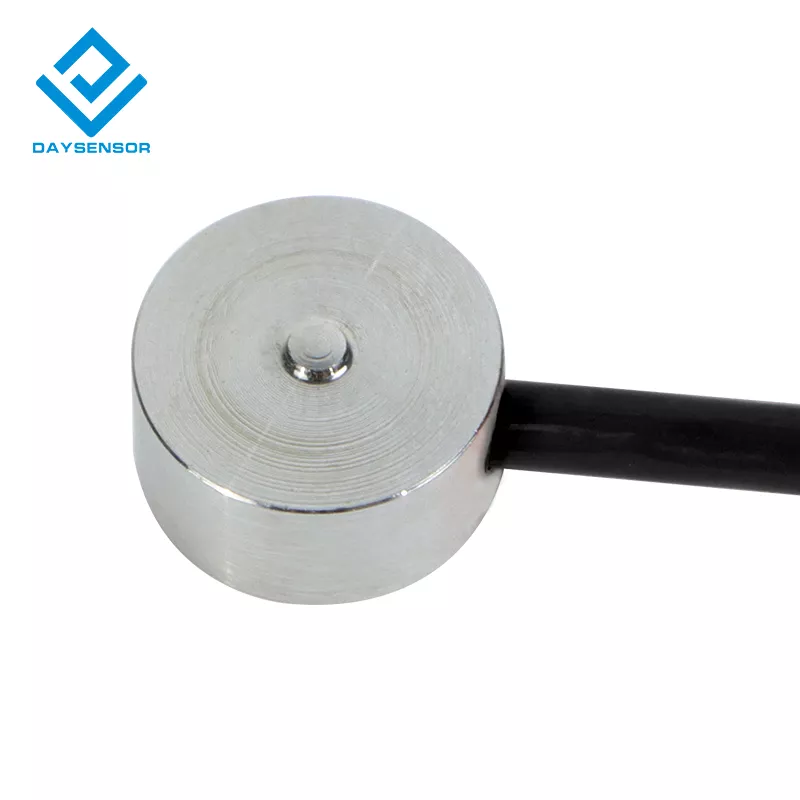

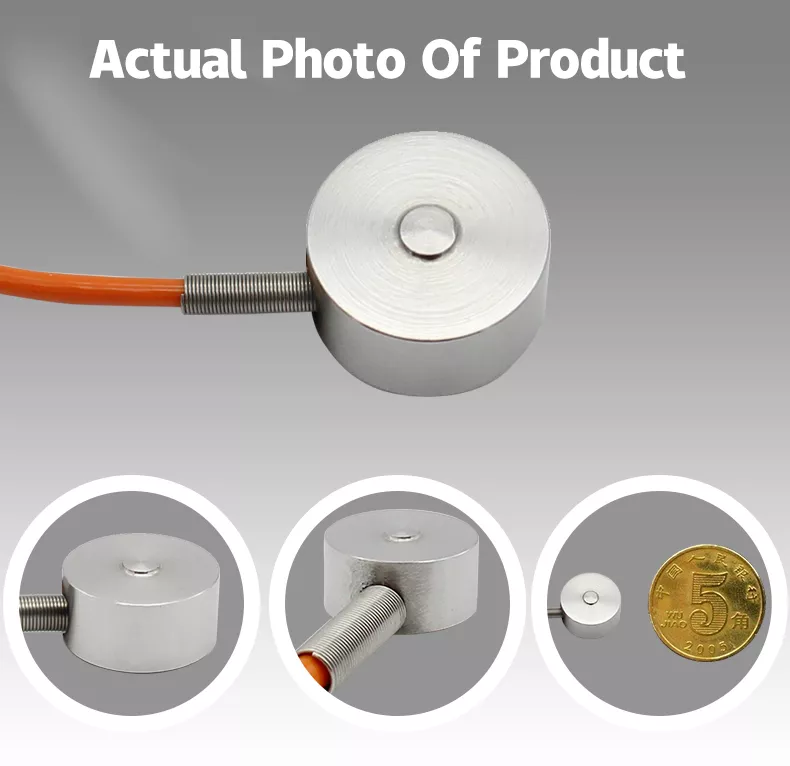

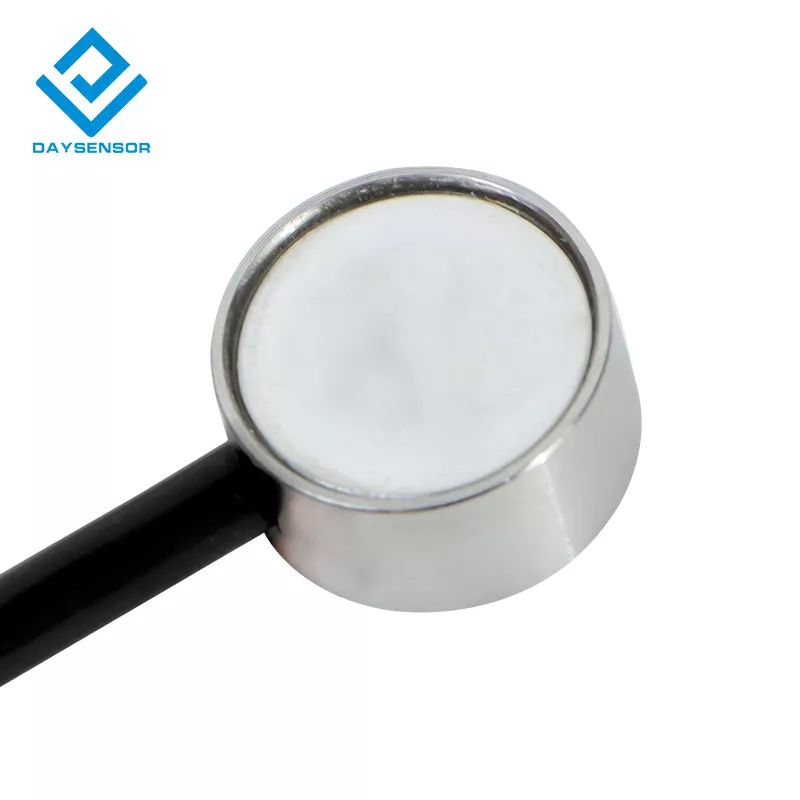

The DYHW-113 Miniature Load Cell is a compact and high-precision force sensor with a 13mm diameter, designed for various applications where space is limited and accurate measurement is essential. Its small size and robust construction make it ideal for integration into a wide range of industrial and research settings, including robotics, medical devices, and material testing.
Key Features

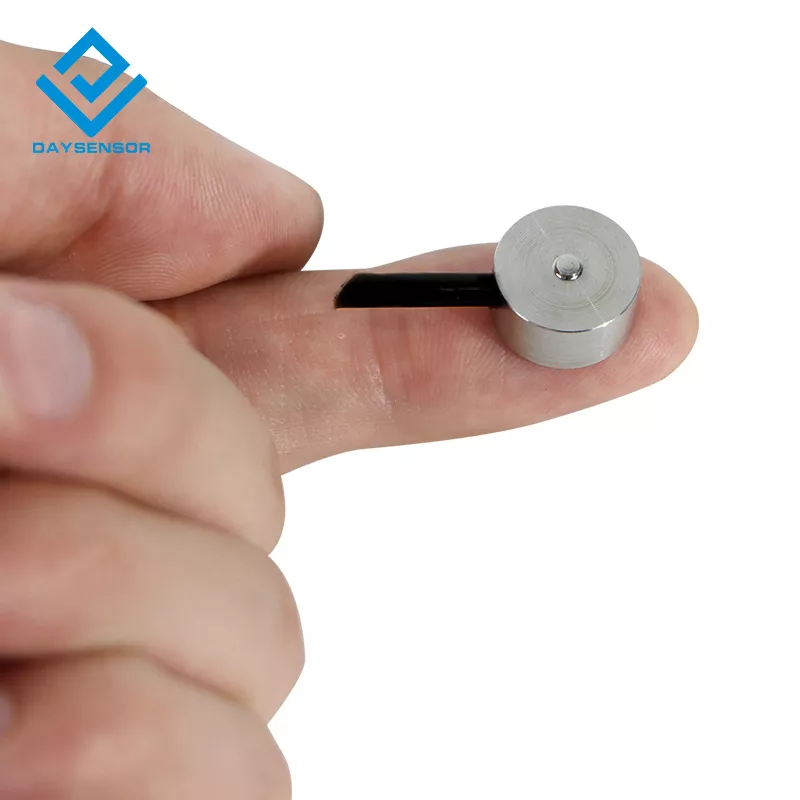

- Compact Size: 13mm diameter design for applications with limited space constraints.
- High Accuracy: Provides precise and reliable force measurements.
- Durable Construction: Made of stainless steel with IP65 protection grade for use in various environments.

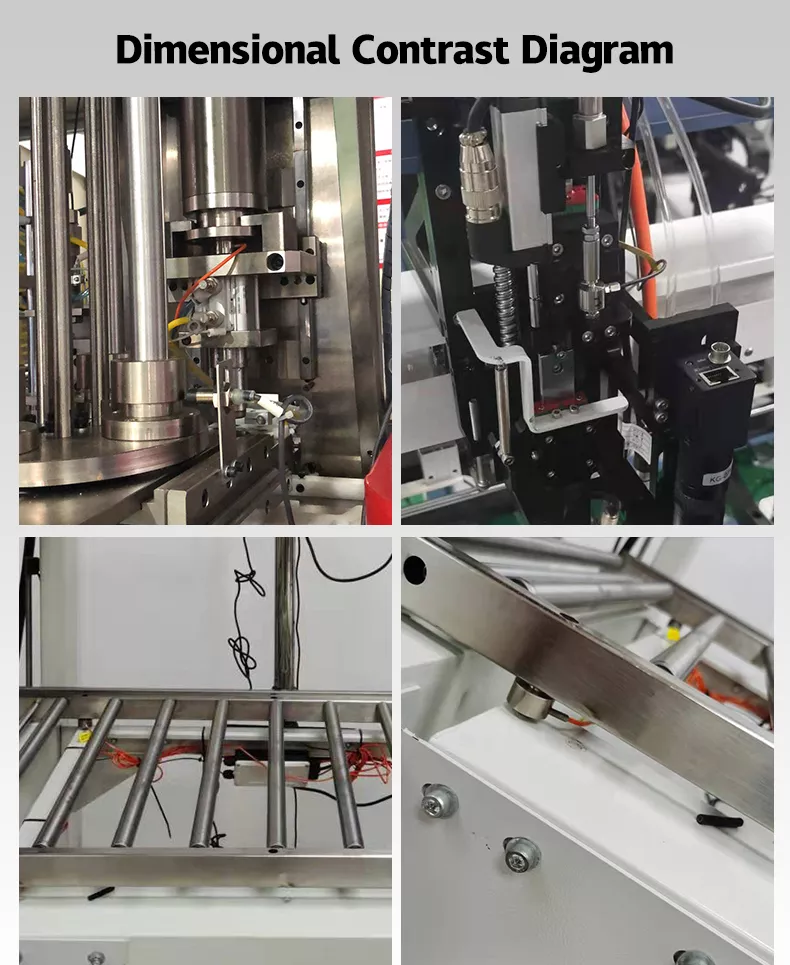

- Versatile Applications: Suitable for various industries and research fields, including measurement and control of force, automation equipment, and key force analysis.
- Fast Response Speed: Ensures quick and accurate measurements for dynamic applications.
- Long Service Life: Designed for extended use and reliable performance.
- Strong Anti-Interference Ability: Provides stable and accurate measurements even in the presence of interference.
Technical Specifications
| Parameter | Value |
| Range | 5-100 kg |
| Material | Stainless Steel |
| Output Sensitivity | 1.0-2.0mV/V |
| Impedance | 500/1000 Ω |
| Zero point output | + 2 %FS |
| Non-linearity | 0.5 %FS |
| Hysteresis | 0.5 %FS |
| Repeatability | 0.3 %FS |
| Creep (30 min) | 0.1 %FS |
| Temperature Sensitivity Drift | 0.5 %FS / 10 °C |
| Zero point Temperature Drift | 0.5 %FS / 10 °C |
| Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
| Service voltage | 5 - 10 Vdc |
| Operating Temperature Range | -20 - 80 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Cable | 5 core x 1m |
| Cable Limit Tension | 10 kg |
| Response Frequency | 10 kHz |
| TEDS | Selectable |
Dimensions
| Range (kg) | Φ |
| 5-20 | Φ-2 |
| 30-200 | Φ-3 |
