DYBW-106 Bellows Type Load Cell (10 - 500 kg)
Product Resources
SKU:
INL-H-208-11
$450.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like

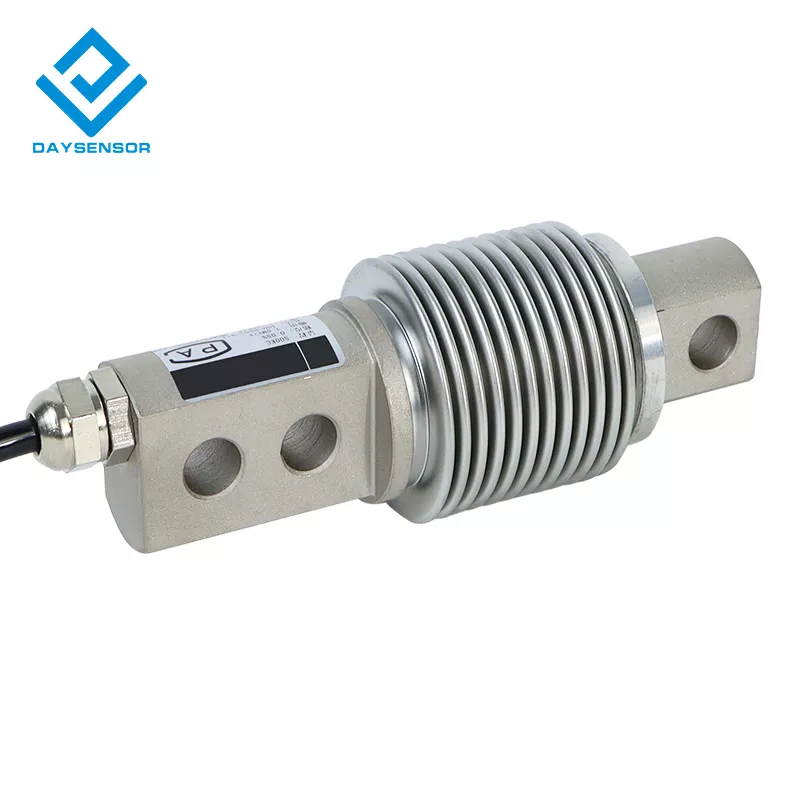

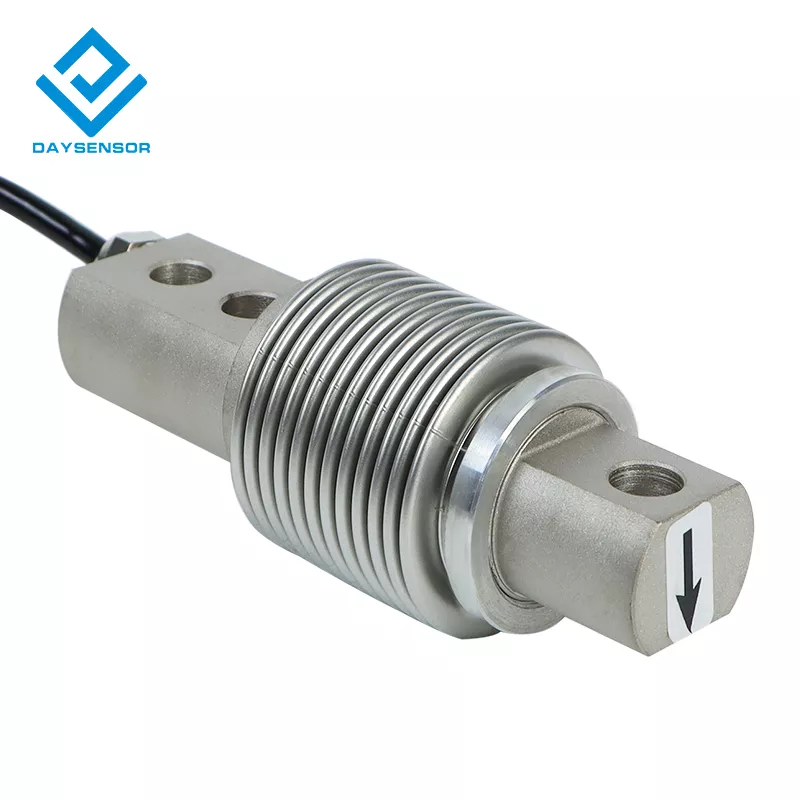

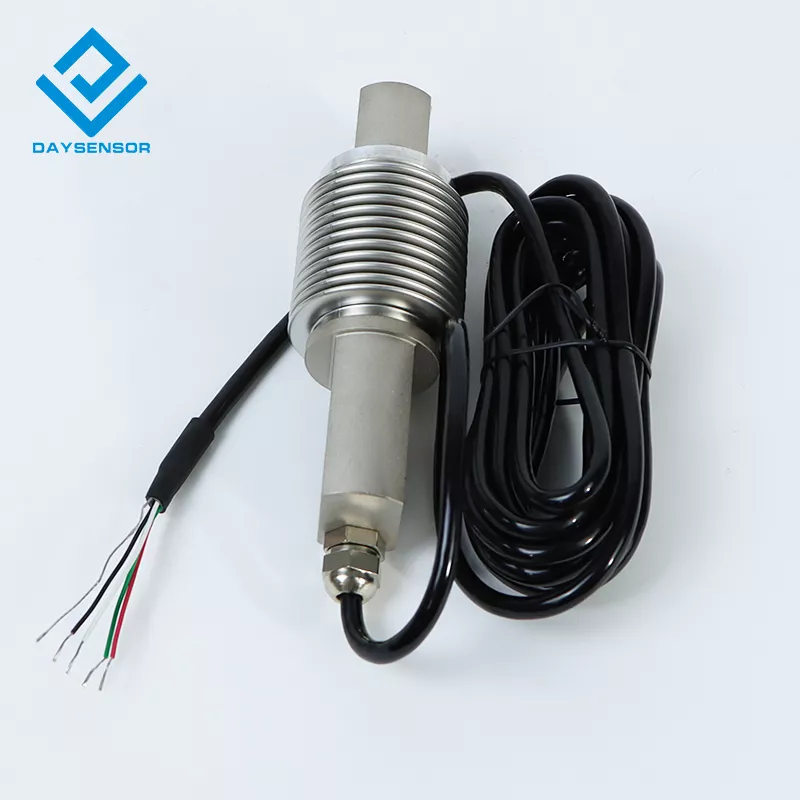

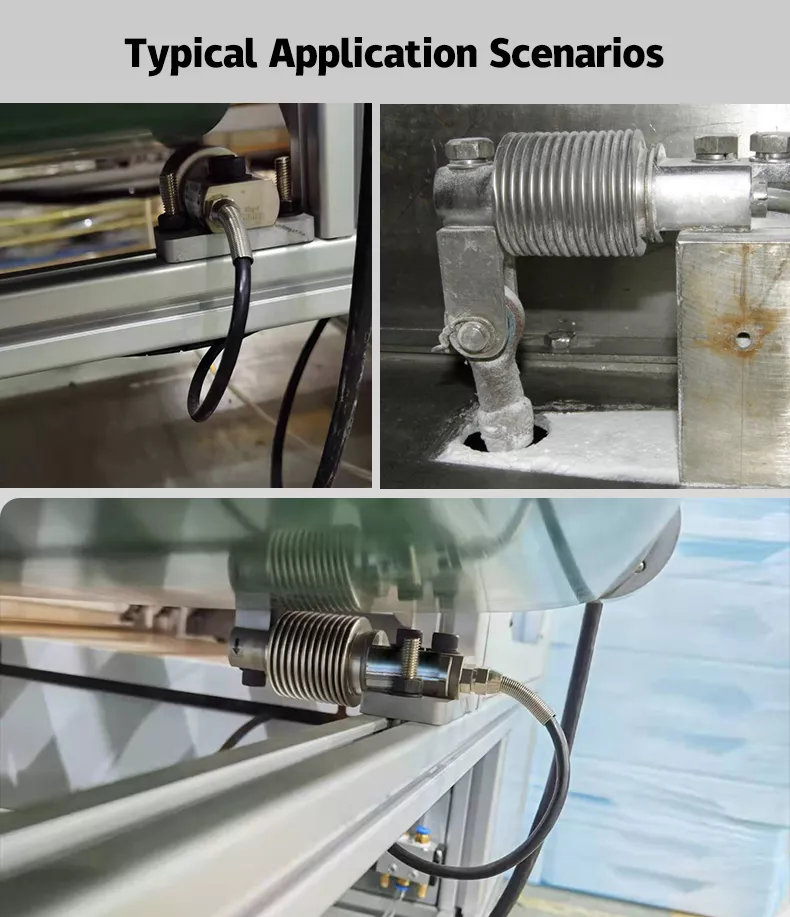

The DYBW-106 Bellows Type Load Cell is a high-precision, durable force sensor designed for both tension and compression measurements in demanding industrial environments. Its unique bellows design, constructed with either laser-welded stainless steel or nickel-plated alloy steel, offers exceptional resistance to fatigue and overload, ensuring long service life and reliable performance in various weighing and force measurement applications.
Key Features
- Robust Construction: Laser-welded stainless steel bellows for enhanced durability and fatigue resistance.
- Versatile Measurement: Measures both tension and compression forces accurately.
- Wide Capacity Range: Available in various capacities from 10 kg to 500 kg.
- High Accuracy: Provides precise and stable measurements with excellent linearity.
- Environmental Protection: Designed to withstand harsh industrial conditions.
- Easy Installation: Compact and lightweight design for convenient integration.
Technical Specifications
| Parameter | Value |
| Range | 10 kg - 500 kg |
| Measurement Type | Tension and Compression |
| Material | Stainless Steel or Nickel-Plated Alloy Steel |
| Operating Temperature Range | -20 - 60 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Output Sensitivity | 2.0 / 3.0 ± 0.05 mV/V |
| Excitation Voltage | 5 - 15 Vdc |
| Impedance | 350 Ω |
| Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
| Cable | 5 core x 3m |
| Creep (30 min) | 0.03 %FS |
| Zero Point | ± 1 %FS |
| Non-linearity | 0.03 %FS |
| Hysteresis | 0.03 %FS |
| Repeatability | 0.03 %FS |
| Zero point Temperature Drift per 10 °C | 0.05 %FS / 10 °C |
| Sensitivity Temperature Drift per 10 °C | 0.05 %FS / 10 °C |
| Response Frequency | 10 kHz |
