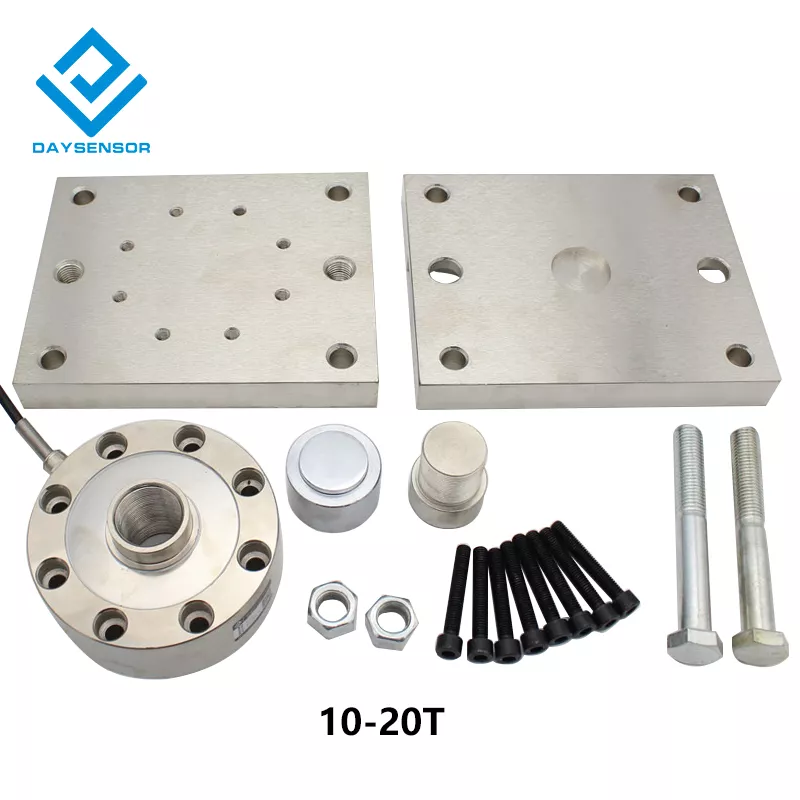

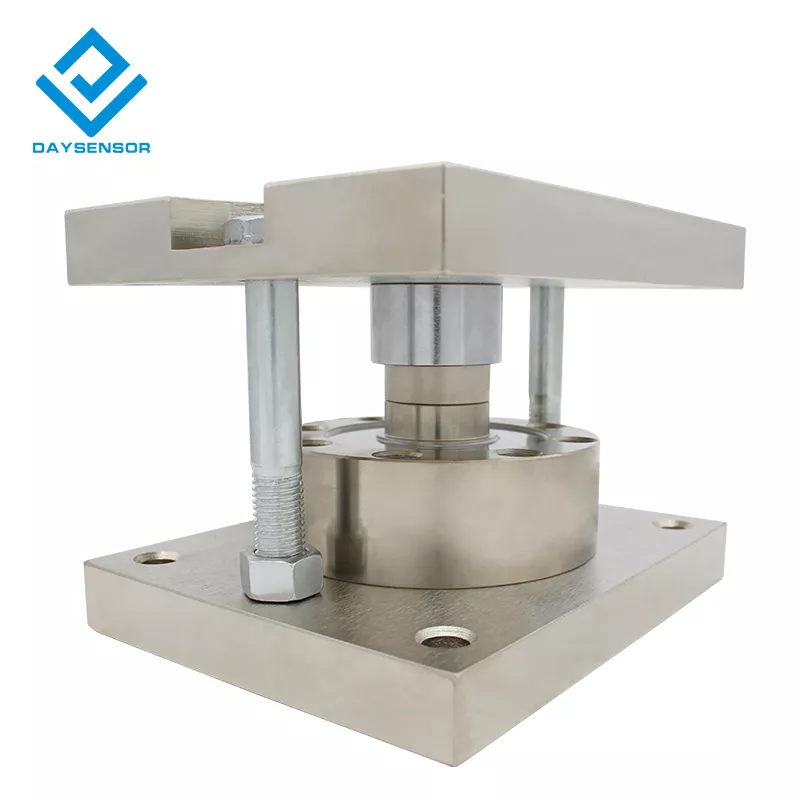

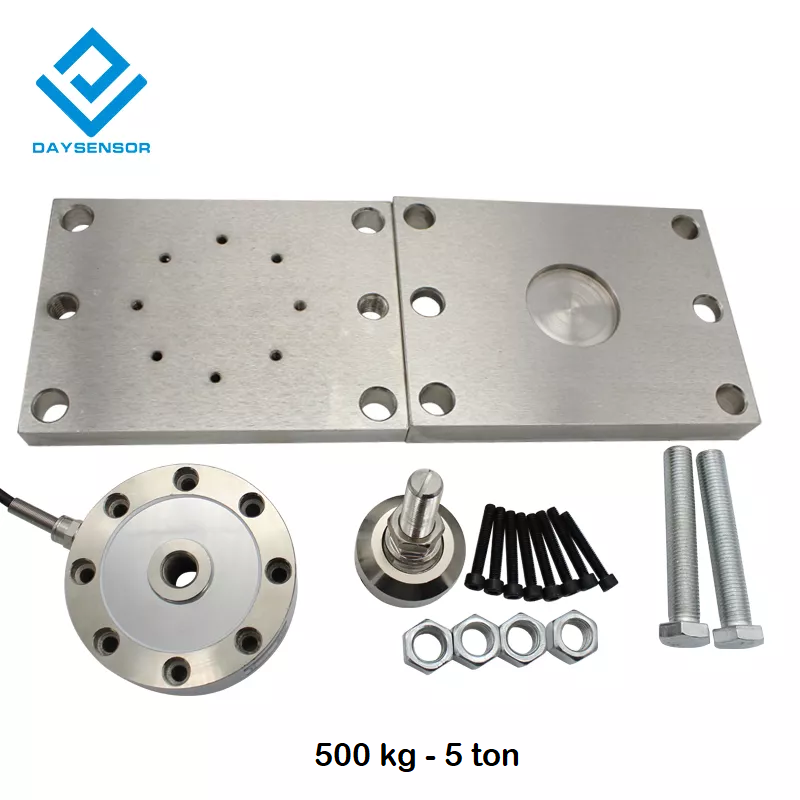

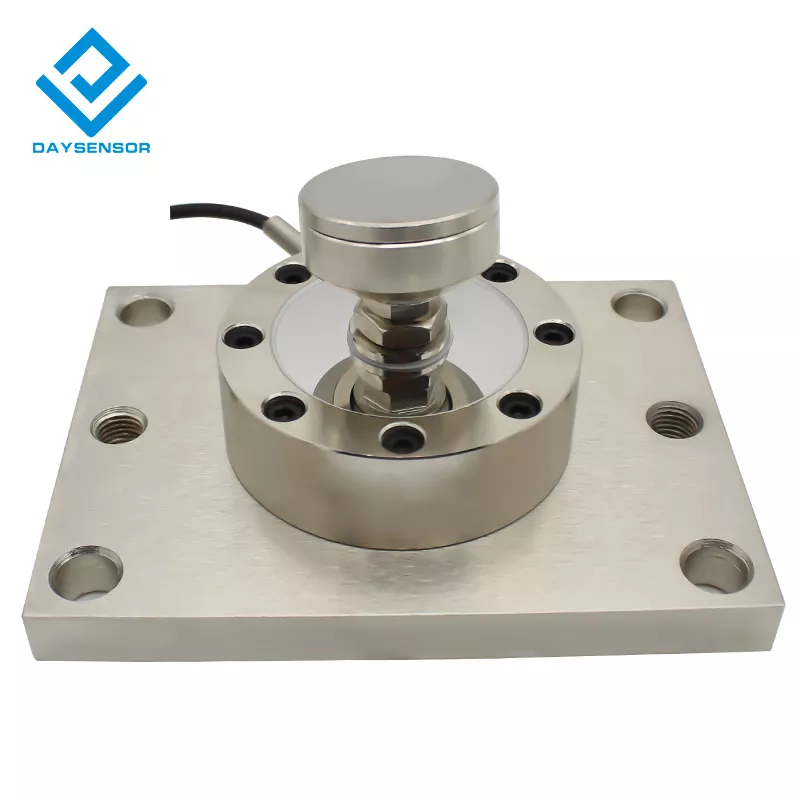

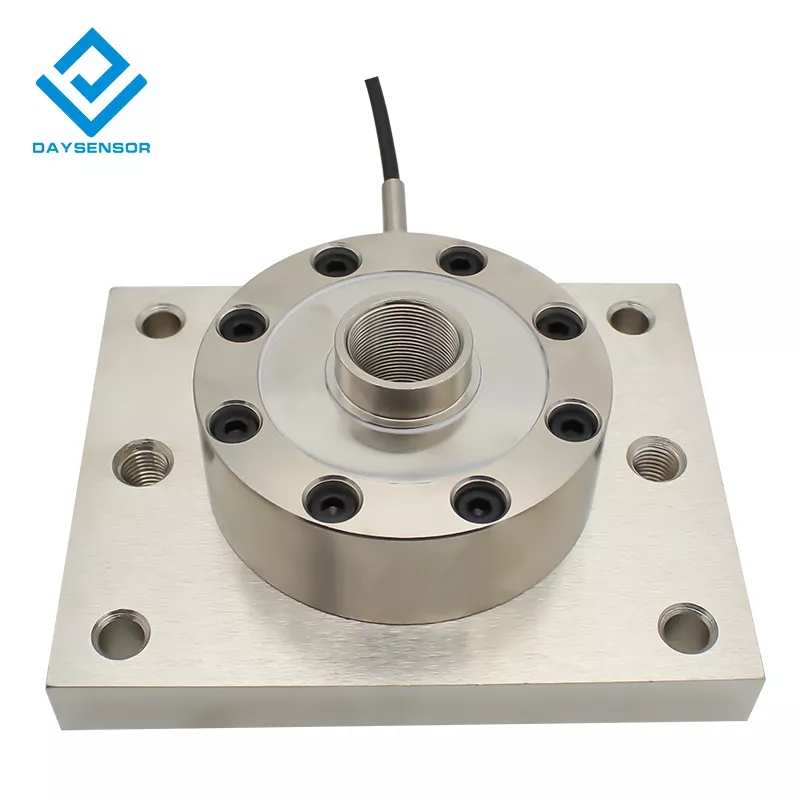

DMYK-002 Spoke Type Large Capacity Weighing Module (1 - 100 ton)
  • DMYK-002 Spoke Type Large Capacity Weighing Module (1 - 100 ton)
  • DMYK-002 Spoke Type Large Capacity Weighing Module (1 - 100 ton)
  • DMYK-002 Spoke Type Large Capacity Weighing Module (1 - 100 ton)
  • DMYK-002 Spoke Type Large Capacity Weighing Module (1 - 100 ton)
  • DMYK-002 Spoke Type Large Capacity Weighing Module (1 - 100 ton)
  • DMYK-002 Spoke Type Large Capacity Weighing Module (1 - 100 ton)
  • DMYK-002 Spoke Type Large Capacity Weighing Module (1 - 100 ton)
  • DMYK-002 Spoke Type Large Capacity Weighing Module (1 - 100 ton)
DMYK-002 Spoke Type Large Capacity Weighing Module (1 - 100 ton)

DMYK-002 Spoke Type Large Capacity Weighing Module (1 - 100 ton)

Product Resources

Datasheet Wiring Diagram
SKU: N/A
$1,150.00
Out of Stock | Backorders available (ETA 3-weeks)

You may also like

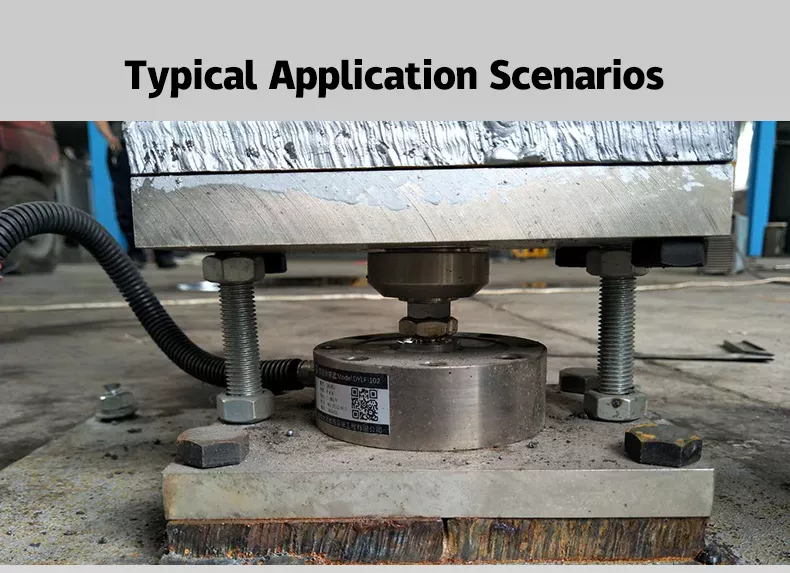

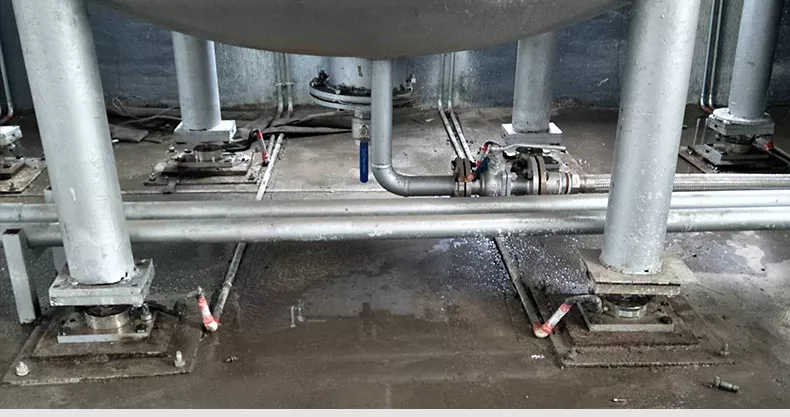

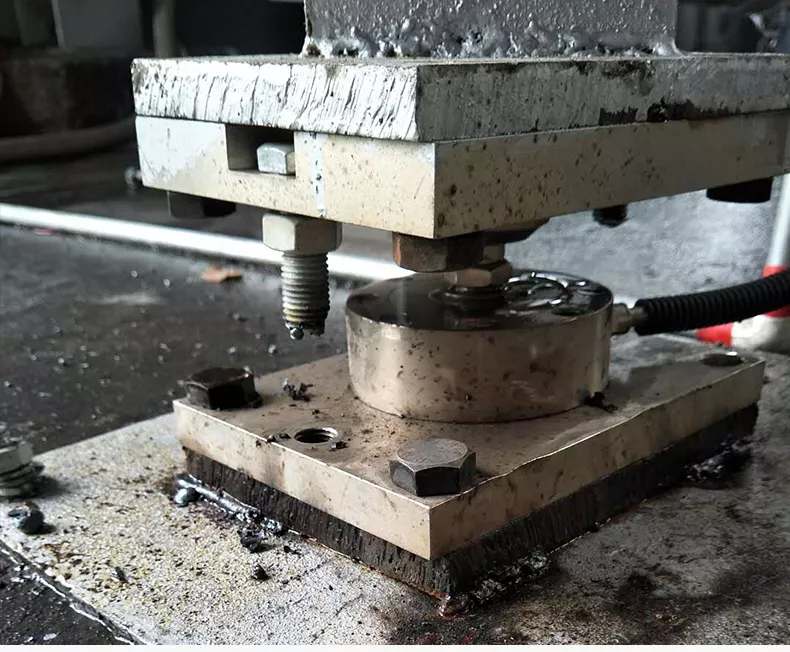

The DYMK-002 Weighing Module is a robust and reliable solution for high-capacity weighing applications in various industrial settings. It is widely used in industries such as concrete batching, chemical processing, pharmaceuticals, and food production, where accurate measurement and control of large quantities of materials is essential. This module is typically installed on reactors, ingredient tanks, hoppers, material warehouses, cement mixing stations, and other large containers to monitor their weight and manage inventory effectively.

The DMYK-002 features a spoke type load cell, offering excellent stability and resistance to lateral forces. It is constructed from stainless steel or alloy steel, ensuring durability and longevity in demanding environments. The spoke type load cell design provides low profile and good stability, making it insensitive to bending moments and offering good linearity. It also has strong resistance to lateral and eccentric loads. The integrated structure is symmetrical, and the thermal expansion in different directions coincides with each other, resulting in a small temperature coefficient.

Key Features:

  • High Capacity: Measures a wide range of weights, from 1 ton to 100 tons.
  • Robust Construction: Stainless steel or alloy steel material provides excellent durability and stability.
  • Accurate and Reliable: Spoke type load cell design ensures precise and consistent measurements.
  • Easy Installation: Designed for straightforward integration into various weighing systems.
  • Versatile Applications: Suitable for weighing reactors, tanks, hoppers, and other large containers in various industries.

Technical Specifications:

Parameter Value
Range 0~(1~100T) according to selection
Material Stainless Steel / Alloy Steel
Output Sensitivity 2.0 ± 0.002 mV/V
Zero point output ± 2 %FS
Non-linearity 0.05 %FS
Hysteresis 0.03 %FS
Repeatability 0.03 %FS
Creep (30 min) 0.03 %FS
Temperature Sensitivity Drift 0.03 %FS / 10 °C
Zero point Temperature Drift 0.05 %FS / 10 °C
Impedance 700 / 1400 Ω
Insulation Resistance ≥ 5000 MΩ / 100 VDC
Service voltage 5 - 15 Vdc
Operating Temperature Range -20 - 80 °C
Safe Overload 150%
Extreme Overload 200%
Cable 5 core x 5m
Cable Limit Tension 10 kg
Response Frequency 10 kHz



Dimensions:

Range (T) A B C D E F H
1-5 200 170 150 120 24 19 110
10-20 200 160 160 125 25 25 145
30 240 200 180 135 30 30 175
40-60 240 200 180 135 30 30 175
80 330 270 240 170 35 35 235
100 330 270 240 170 35 35 210
