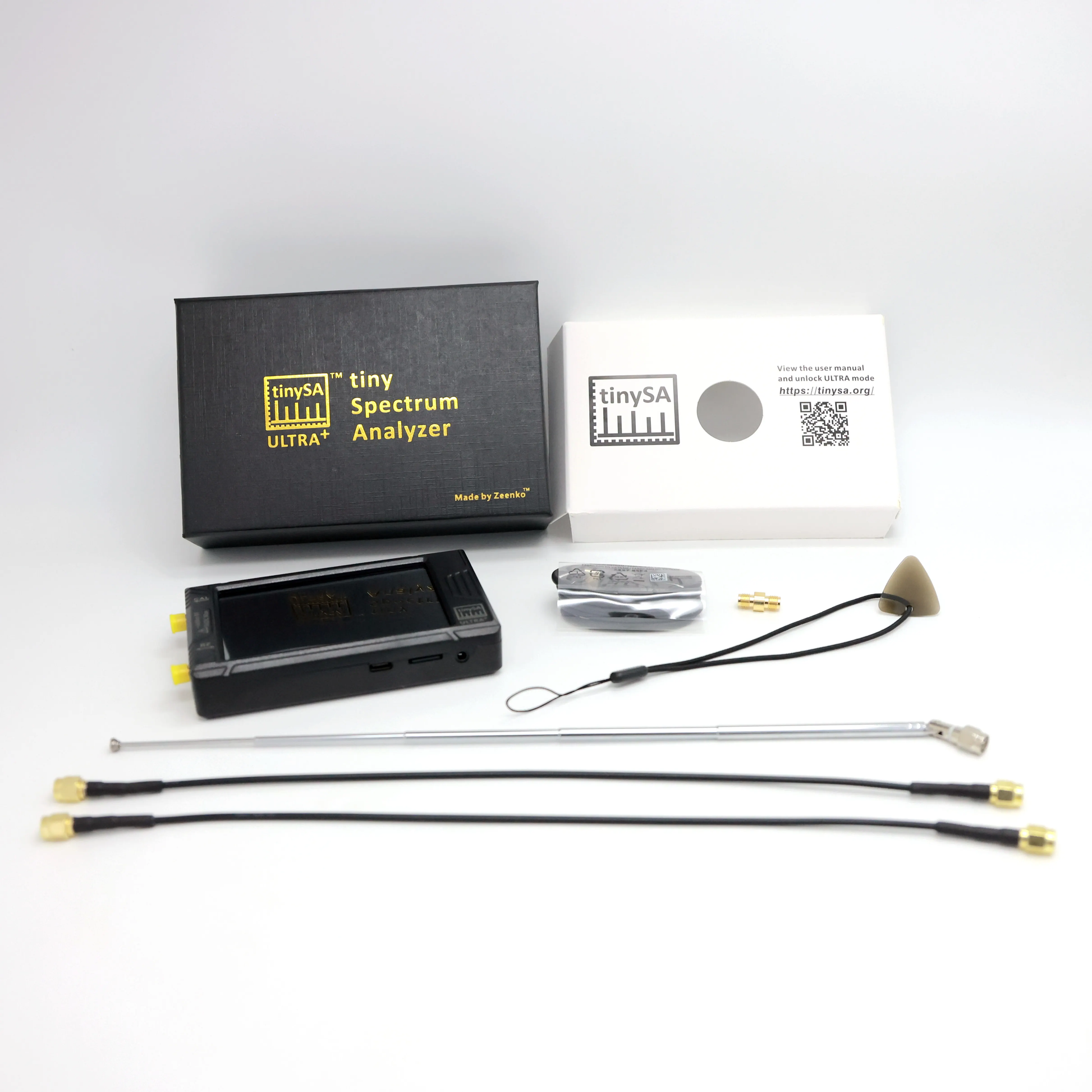

TinySA ZS-406 Spectrum Analyser by Zeenko

Unlock the RF Spectrum Anywhere! The TinySA Zeenko ZS-406 is a powerful and incredibly compact handheld tool, perfect for technicians, engineers, radio amateurs, and electronics enthusiasts. This versatile device functions as both a spectrum analyzer and a signal generator, offering a wealth of features in a tiny footprint, making advanced RF analysis more accessible than ever.

Use in EMI Investigations: The portable TinySA Zeenko ZS-406 spectrum analyzer serves as a highly practical tool for on-site EMI investigations in industrial settings, enabling technicians to efficiently identify and troubleshoot both conducted and radiated electromagnetic disturbances. For conducted emissions, typically assessed in the 150 kHz to 30 MHz range, the TinySA ZS-406 can be utilized with standard accessories like Line Impedance Stabilization Networks (LISNs) and RF current probes to measure noise on power lines and cables. Its adjustable Resolution Bandwidth (RBW) settings, which for the ZS-406 typically range from around 200Hz to 850kHz, allow for diagnostic work aligning with common requirements (such as 9 kHz RBW for conducted emissions scans), and its peak detectors are useful for quickly identifying problem frequencies. When investigating radiated emissions, often examined in the 30 MHz to 1 GHz range and beyond (the ZS-406's Ultra mode extends its capability to several GHz), this handheld analyzer can be paired with appropriate antennas to assess fields emanating from equipment. While not a substitute for full compliance testing in certified anechoic chambers, the TinySA ZS-406's portability makes it exceptionally effective for diagnostic "sniffing" using near-field E-field and H-field probes. This allows for the direct pinpointing of EMI leakage from components, PCB traces, cable penetrations, or enclosure seams directly on the factory floor or in situ, providing crucial relative insights for effective troubleshooting.

Key Features & Benefits:

• Dual Functionality: Seamlessly switch between a spectrum analyzer and a signal generator.
• Wide Frequency Coverage:
• Spectrum Analyzer:
• Normal Mode: 100kHz - 900MHz.
• Ultra Mode: Extends up to 5.3GHz (level calibrated to 6GHz, can observe signals up to 12GHz).
• Signal Generator:
• Sine Wave Output: 100kHz - 900MHz.
• Square Wave Output: Up to 4.4GHz.

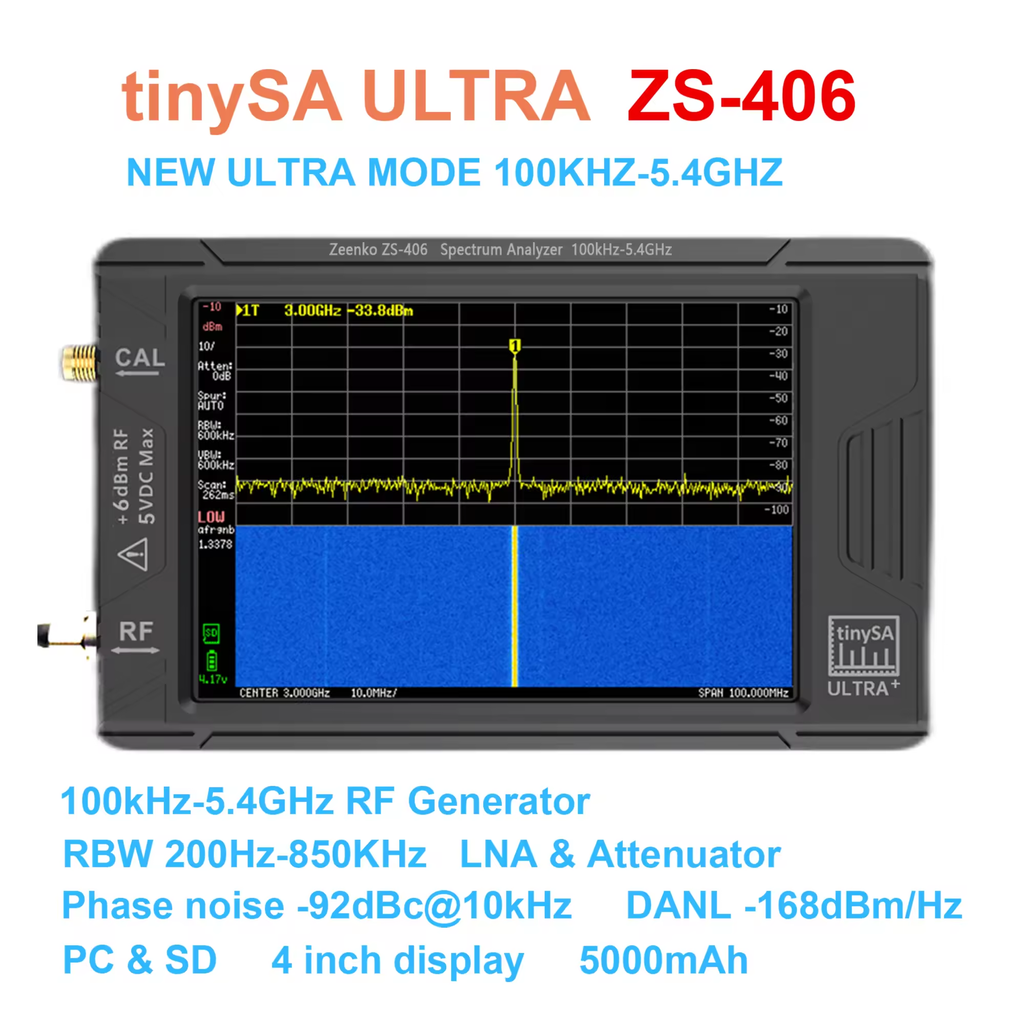

• Clear & Responsive Display: Features a 4.0-inch resistive touchscreen (480x320 pixels) displaying up to 450 scan points.
• Comprehensive Spectrum Analysis:
• Selectable Resolution Bandwidths (RBW): From 200Hz to 850kHz (manual or automatic).
• Multiple Markers: Up to 4 markers with functions like tracking, delta, and noise measurement.
• Advanced Display Modes: Waterfall display, Max/Min Hold, Averaging, Normalize, Store/Subtract Trace.
• Built-in Measurement Functions: Harmonic analysis, OIP3, phase noise, SNR, -6dB bandwidth, and AM/FM modulation monitoring.
• Versatile Signal Generation:
• Modulation: AM, narrow FM, and wide FM capabilities.
• Output Level Control: Adjustable output levels, with different ranges and precision for low and high bands.
• Sweep Functions: Programmable frequency and amplitude sweeps.
• Portable & User-Friendly:
• Compact Design: Handheld for easy portability.
• Battery Powered: Equipped with a rechargeable 5000mAh battery for up to 3 hours of portable use.

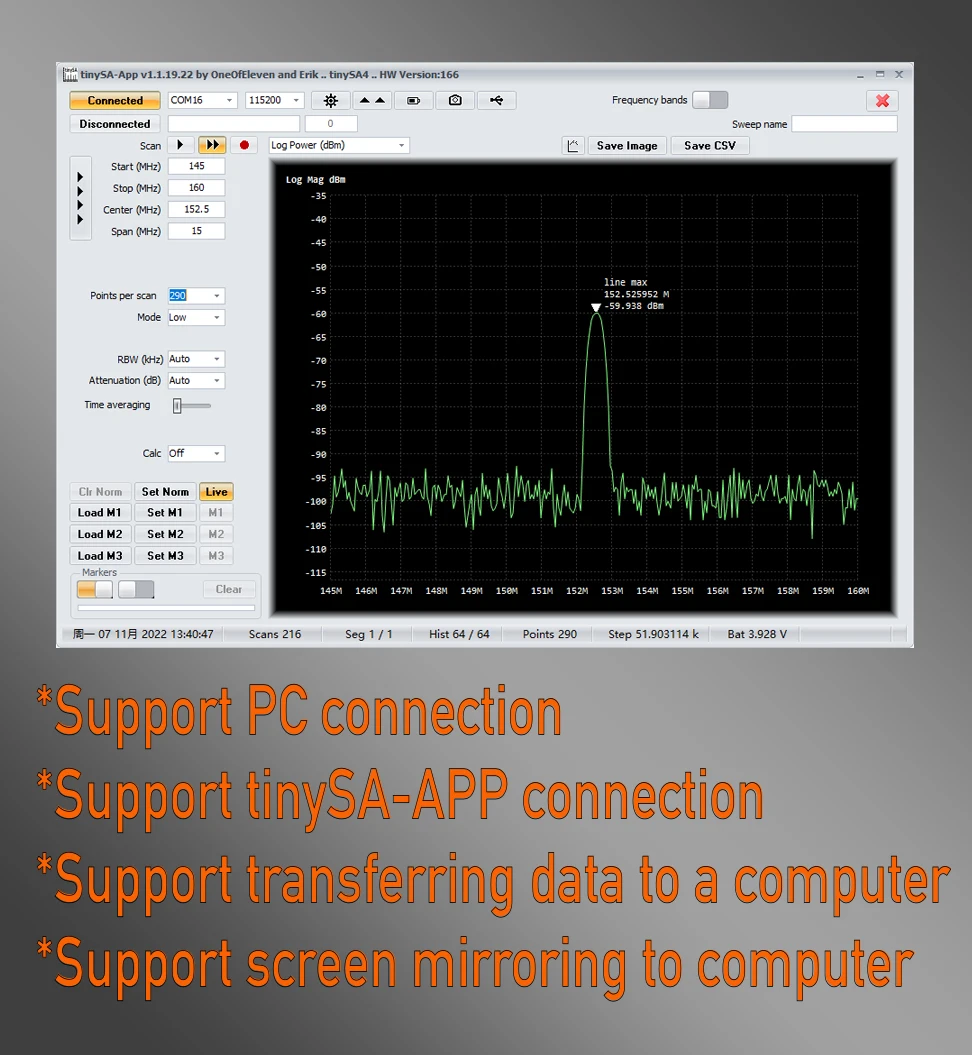

• PC Connectivity: Connect to a PC via USB-C for control, data transfer (screenshots, settings), and firmware updates. PC software available.
• Data Storage: Includes a built-in 32GB MicroSD card for storing measurements, settings, and screen captures.
• Built-in Self Test & Calibration: Features an internal calibration signal generator for automatic self-test and input calibration.

Your Go-To Tool for RF Exploration

The TinySA Zeenko ZS-406 is engineered to provide essential RF measurement capabilities for a wide range of applications, from checking transmitter harmonics and antenna tuning to identifying interference and testing filter responses. Its affordability and extensive feature set, often found in much larger and more expensive equipment, make it an invaluable addition to any workbench or toolbag.

Key Technical Specifications (Zeenko ZS-406 / TinySA Ultra+):

For the most detailed specifications, advanced features, firmware updates, and PC software, please refer to the official TinySA Wiki at www.tinysa.org.
