Mr Signal MR9270S - Industrial Multifunction Signal Generator

SUPPORT
User Manual

Stock

MES-MP-111-1

Quantity: 3

Order Product

$450.00 NZD
$450.00 NZD
Sale Sold out

MR9270S+ Multifunctional Signal Generator: Generate, Measure & Analyze

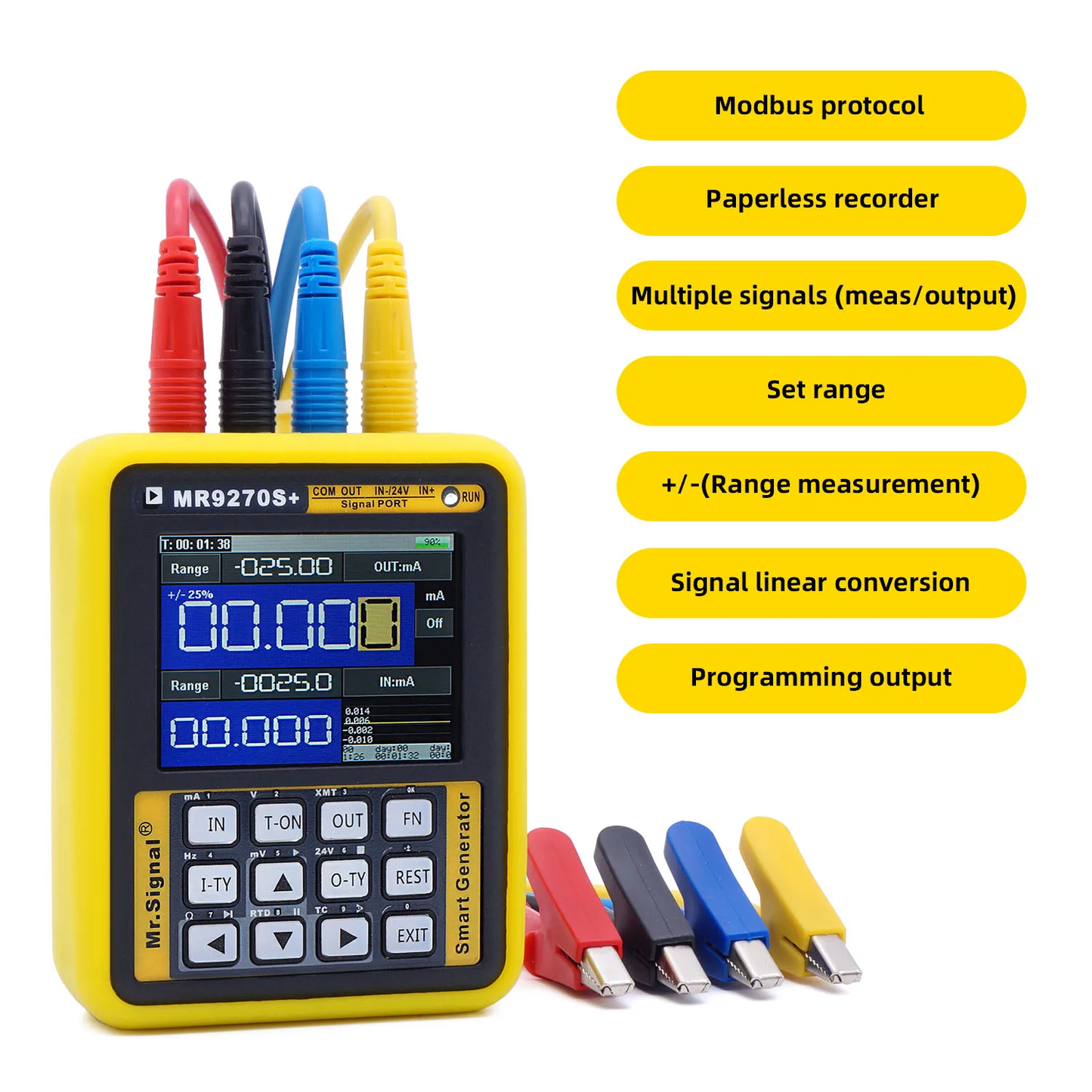

The MR9270S+ is a handheld tool for generating, measuring, and analyzing industrial signals. It features a high-speed processor for reliable operation and a user-friendly interface with a backlit display.

This is a mature product which as been on the market since 2015.

Key Features:

  • Measures and outputs various signals: current, voltage, mV, frequency, resistance, thermocouple, thermal resistance, PT100
  • Simultaneous measurement and output
  • IO terminals are compatible even with shrouded multimeter leads
  • Programmable ramp/step output (e.g. continuously cycle through 4/8/16/20 mA)
  • Quick access menu layout
  • Input/output signal conversion (e.g., frequency input to current output)
  • Real-time curve display
  • Modbus RTU master/slave functionality
  • Built-in paperless recorder with PC software
  • USB to RS485 conversion
  • USB to HART modem functionality with the HART model.

Technical Details:

  • Battery: Up to 20h standby, 8-10h continuous output (20mA)

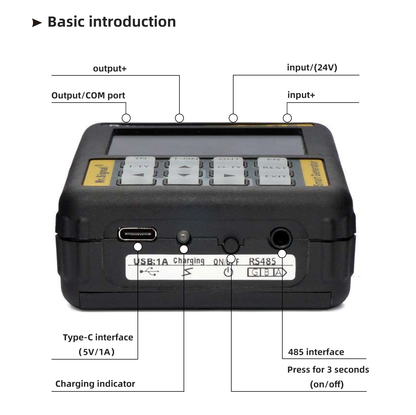

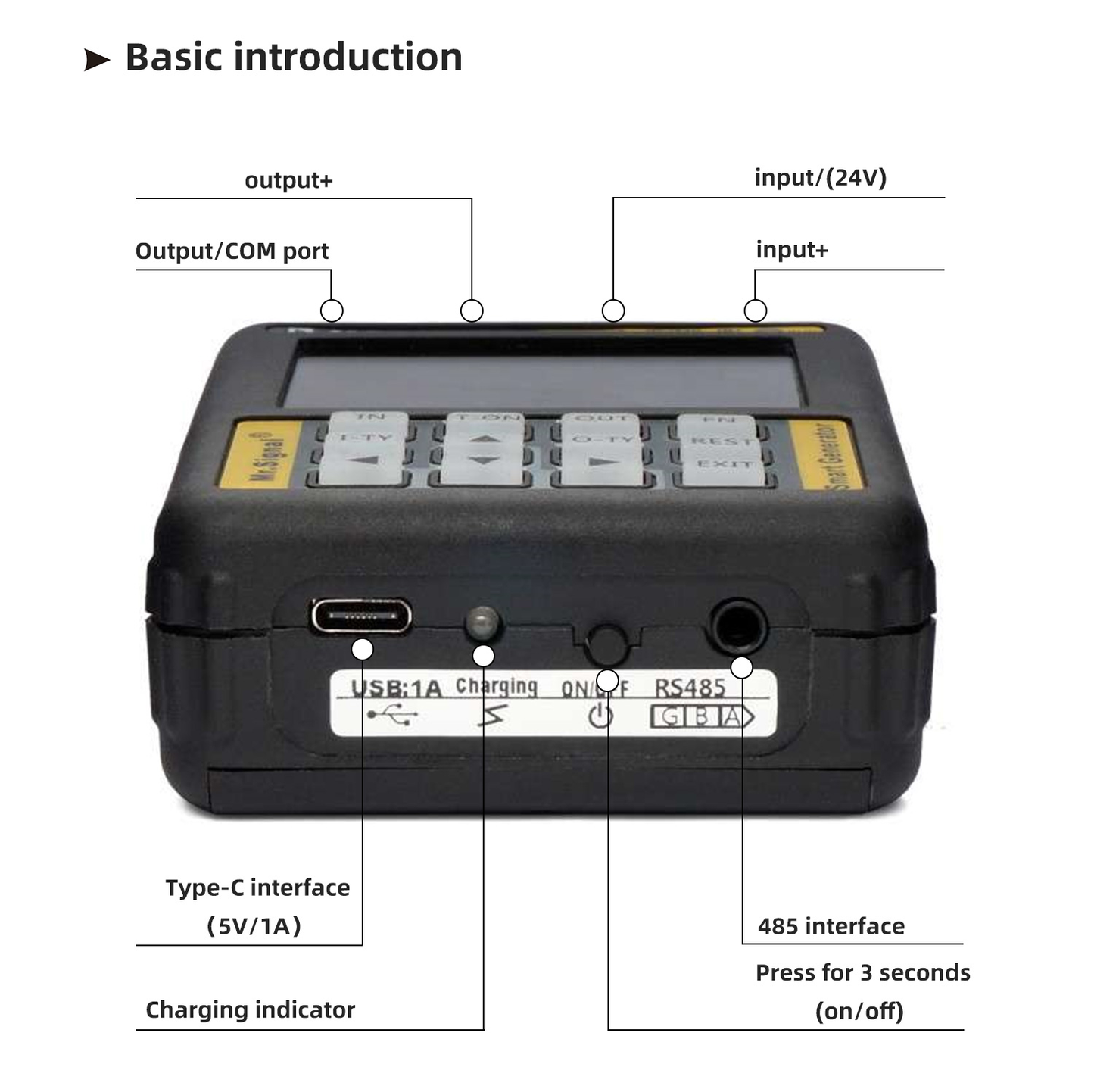

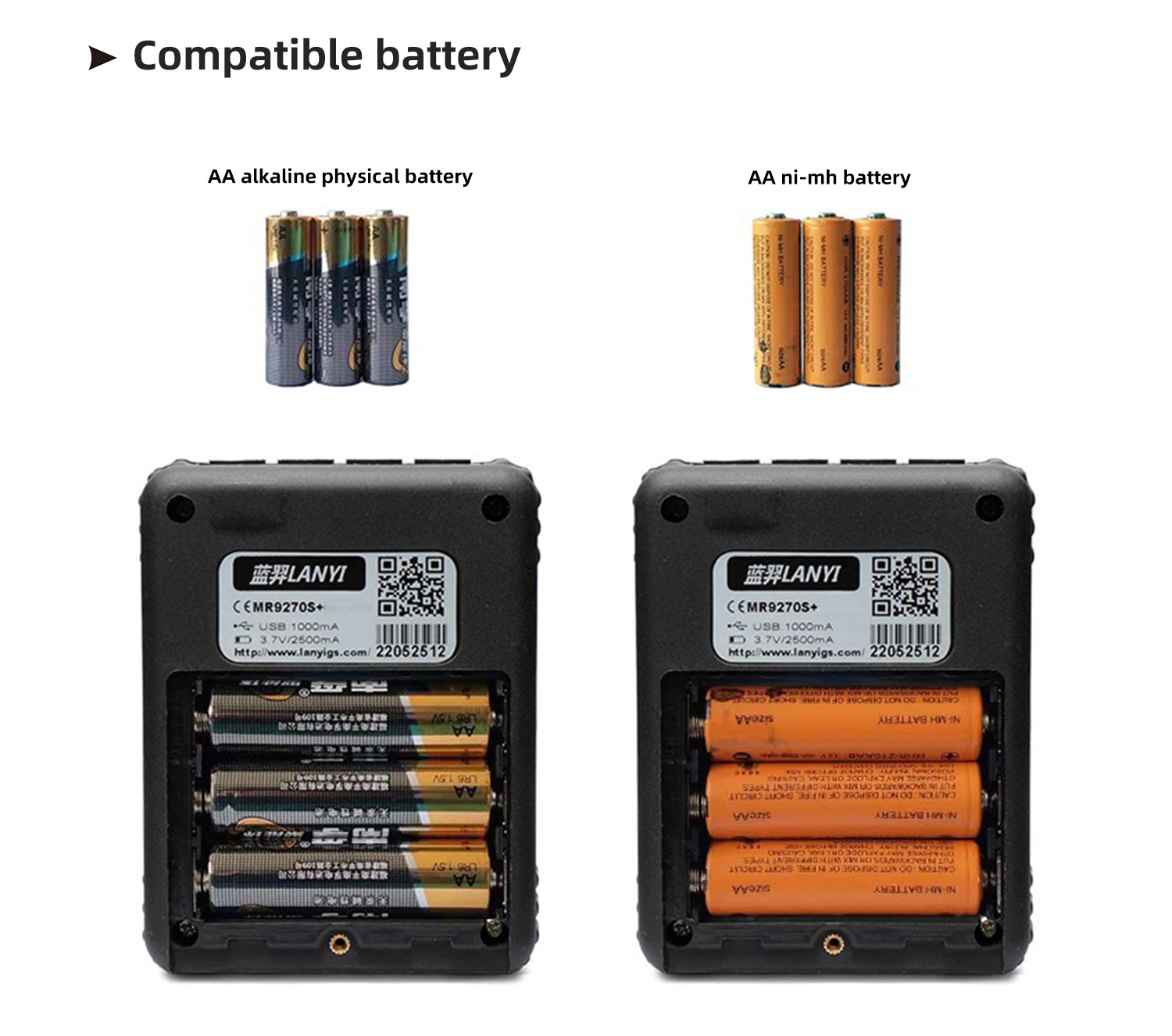

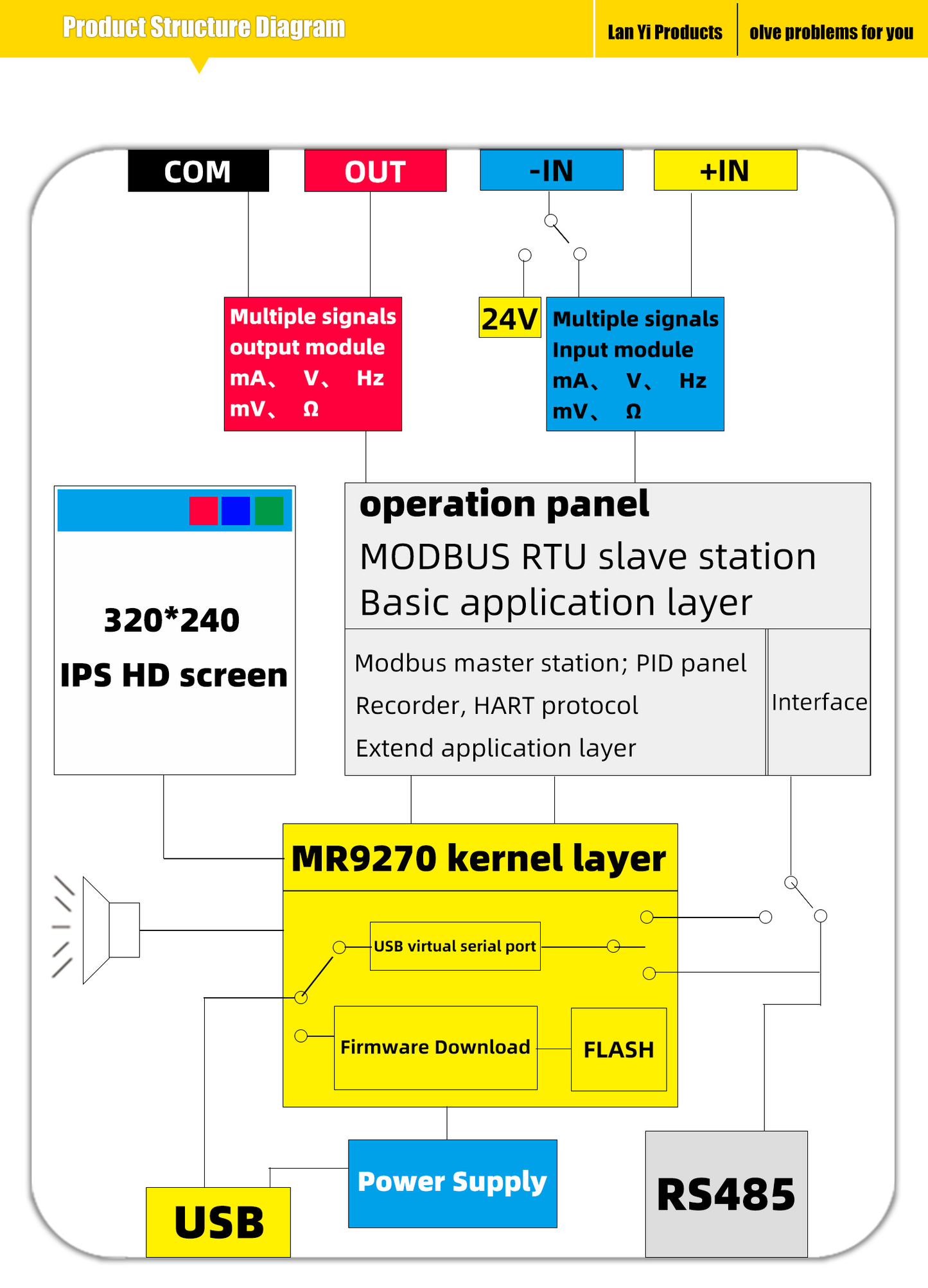

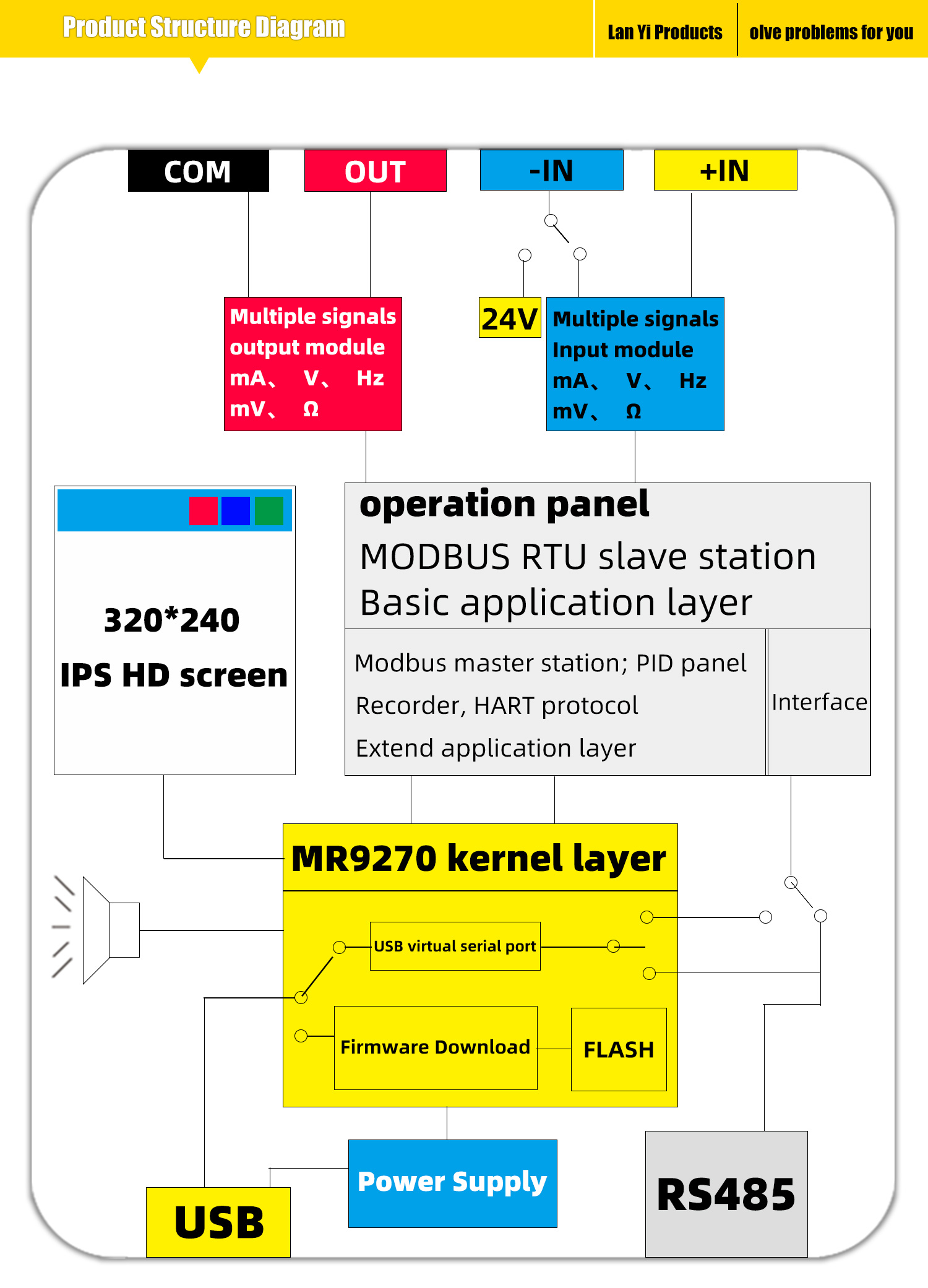

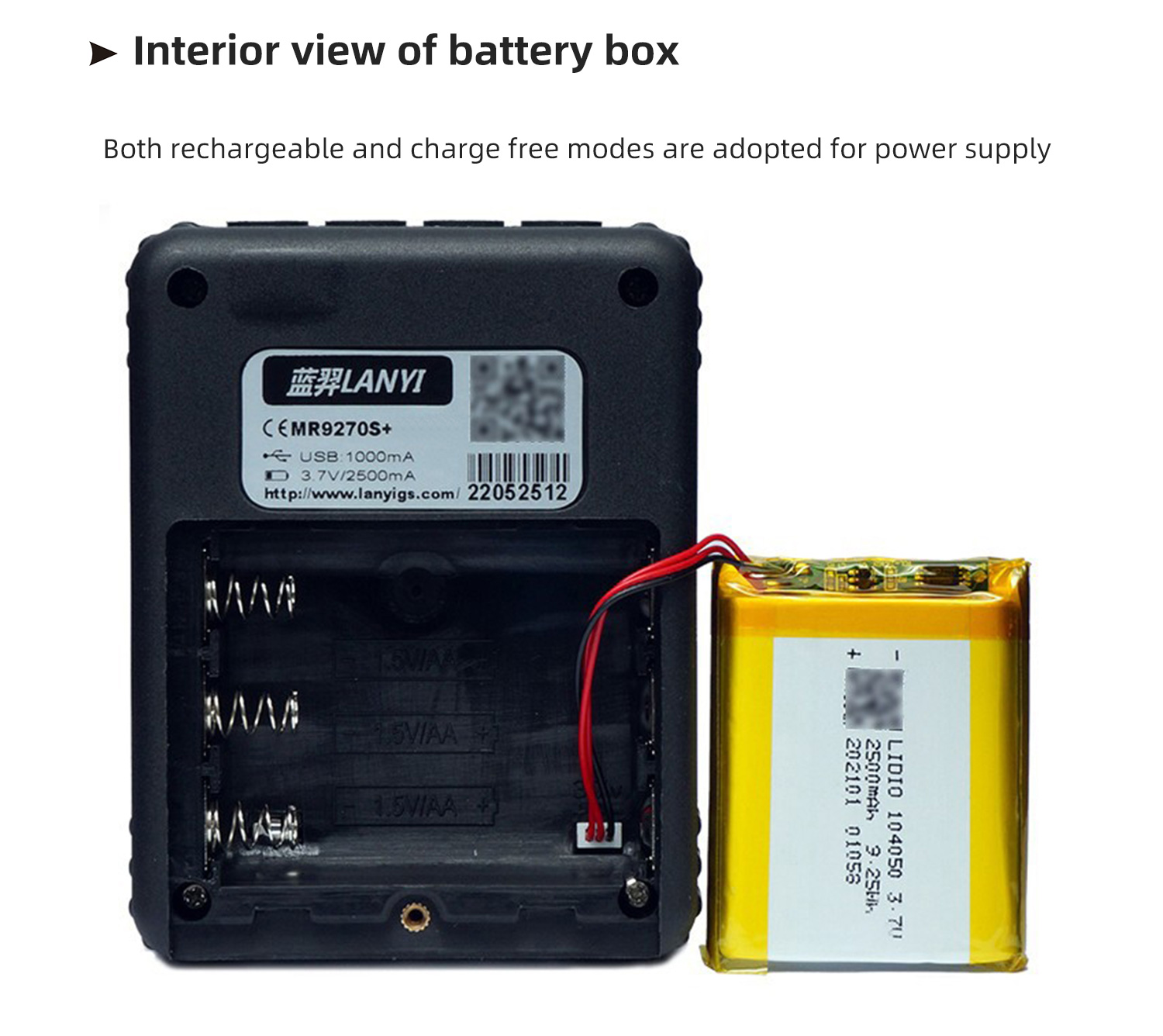

  • Supplied with a rechargeable lithium battery, can also operate on 3x AA's.
  • Operating Temp: 0°C to 50°C
  • Internal reverse/overcurrent protection
  • Size: 97mm x 76mm x 33mm
  • Weight: 189g

Includes:

  • MR9270S+ signal generator
  • Certificate
  • Carrying case
  • Manual
  • RS485 adapter
  • USB cable
  • Test leads (4 colors)

Notes:

  • The input and output are not electrically isolated from each other.
  • We recommend against using this device while charging to avoid the possibility of creating a parallel path from plant 24 V to earth.
  • This is a signal generator, not a multimeter, do not use this for testing mains power.

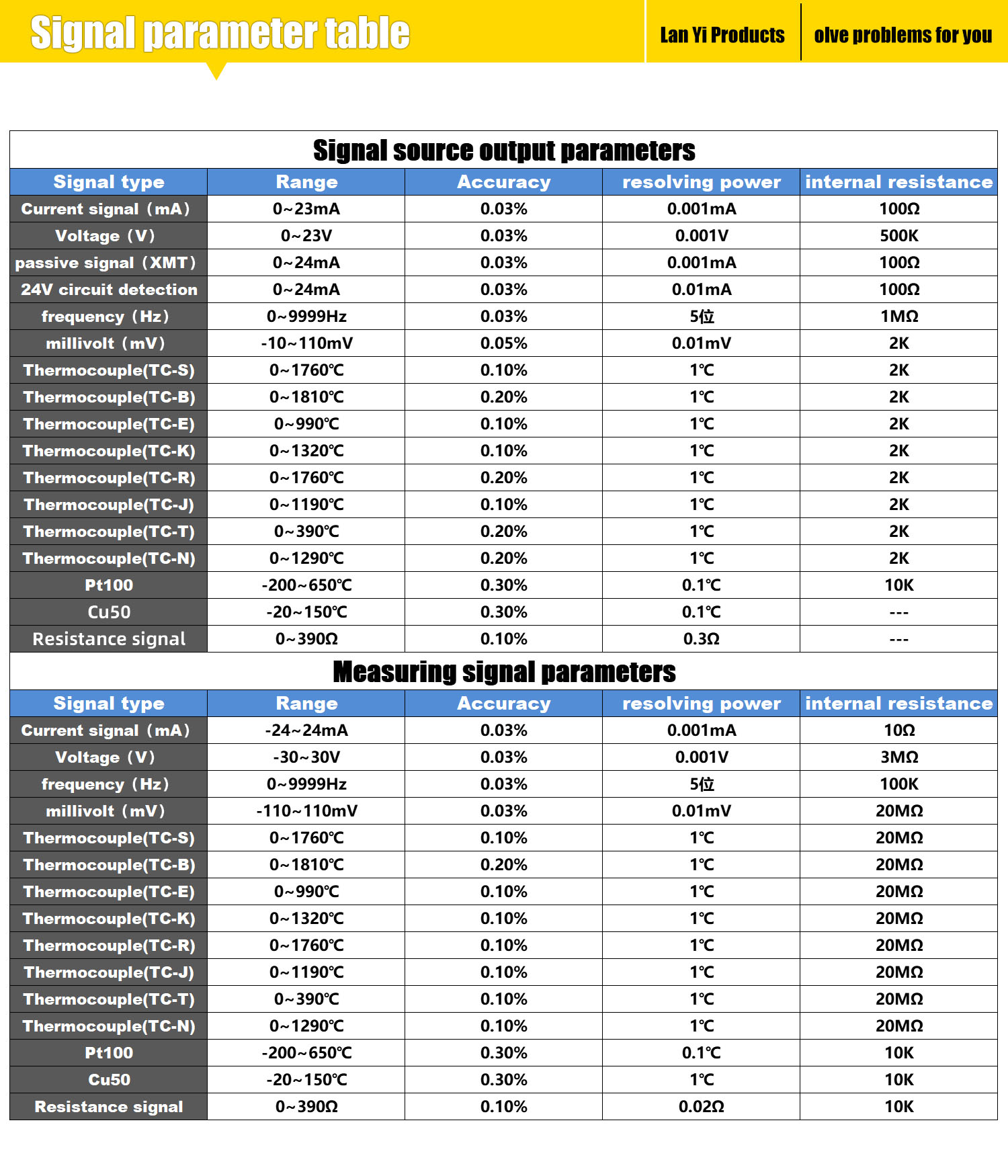

Output Specifications

Type Range Precision Resolution Internal Impedance
Current (mA) 0 ~ 24mA 0.0005 0.001mA 100 Ω
Voltage (V) 0 ~ 12V 0.0005 0.001V 500k
Passive current (XMT) 0 ~ 24mA 0.001 0.001mA 100 Ω
24V Loop 0 ~ 24mA 0.001 0.01mA 100Ω
Frequency (Hz) 0 ~ 9999Hz 0.0003 5bit 1Mk
Millivolt (mV) -10 ~ 110mV 0.0005 0.01mV 2K
TC-S 0 - 1760°C 0.002 1°C 2K
TC-B 0 - 1810°C 0.005 1°C 2K
TC-E 0 - 990°C 0.002 1°C 2K
TC-K 0 - 1320°C 0.002 1°C 2K
TC-R 0 - 1760°C 0.003 1°C 2K
TC-J 0 - 1190°C 0.003 1°C 2K
TC-T 0 - 390°C 0.002 1°C 2K
TC-N 0 - 1290°C 0.002 1°C 2K
Pt100 -200 ~ 650°C 0.005 1°C ---
Cu50 -20 ~ 150°C 0.005 1°C



Input Specifications

Type Range Precision Resolution Internal Impedance
Current(mA) 0 ~ 24mA 0.001 0.001mA 100 Ω
Voltage (V) 0 ~ 12V 0.001 0.001V 500k
Frequency (Hz) 0 ~ 9999Hz 0.001 5bit 1Mk
Millivolt (mV) -10 ~ 110mV 0.001 0.01mV 2Mk
TC-S 0 - 1760°C 0.002 1°C 2Mk
TC-B 0 - 1810°C 0.005 1°C 2Mk
TC-E 0 - 990°C 0.002 1°C 2Mk
TC-K 0 - 1320°C 0.002 1°C 2Mk
TC-R 0 - 1760°C 0.002 1°C 2Mk
TC-J 0 - 1190°C 0.002 1°C 2Mk
TC-T 0 - 390°C 0.002 1°C 2Mk
TC-N 0 - 1290°C 0.002 1°C 2Mk
Pt100 -200 ~ 650°C 0.001 0.1°C 2.5k
Cu50 -20 ~ 150°C 0.001 0.1°C 2.5k
Resistor 0 - 400 Ω 0.001 0.01 Ω 2.5k
