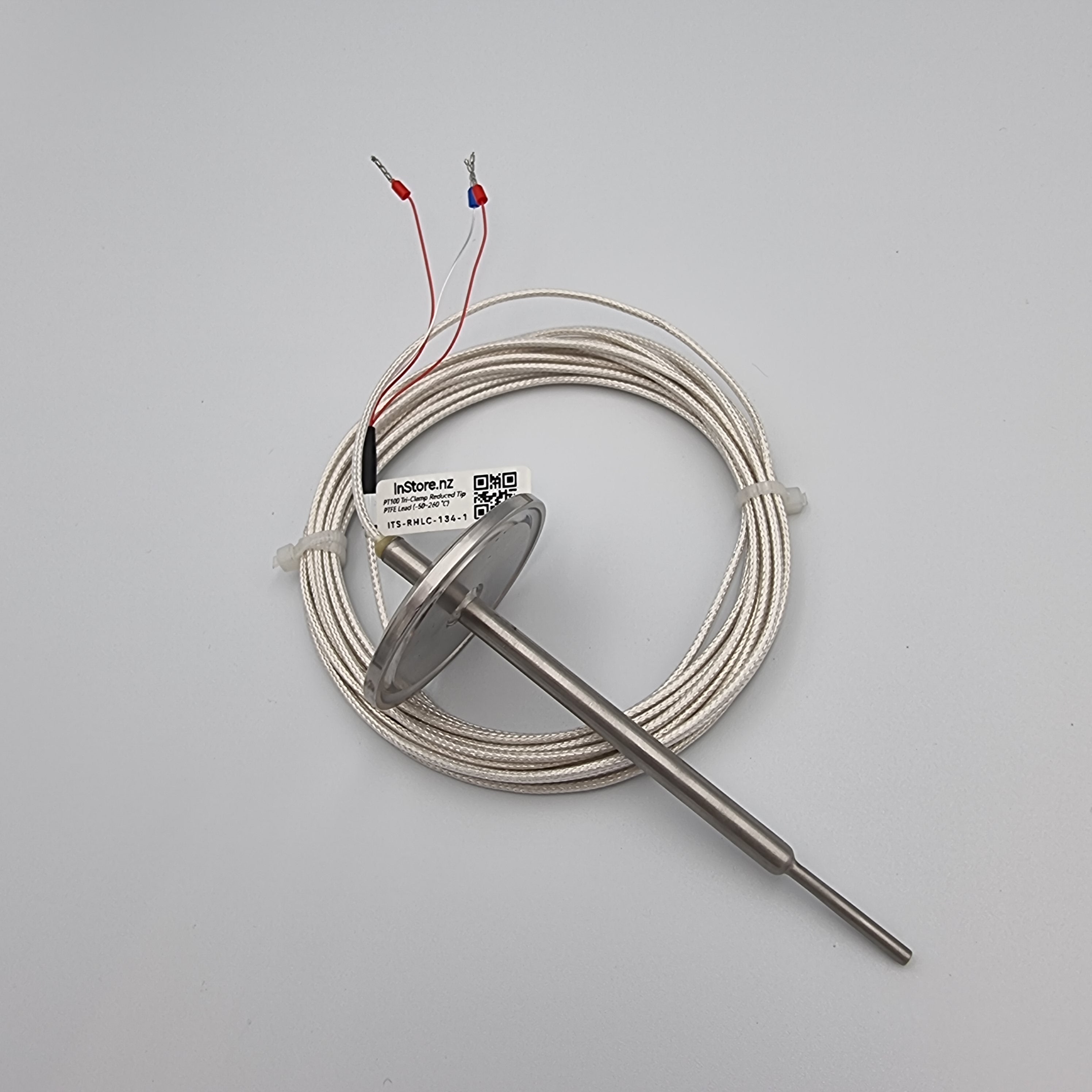

PT100 Tri-Clamp Reduced Tip with PTFE Lead [-50...260°C]

Stock

ITS-RHLC-134-1

Quantity: 1

Order Product

$279.00 NZD
$279.00 NZD
Sale Sold out

This series of tri-clamp PT100 temperature probes is designed for food industry hygienic use.

It features a high accuracy class A PT100 sensing element. The probe is made from corrosion resistant 316 stainless steel and features a reduced tip diameter to enhance speed of response. The process connection is a triclamp design per ISO 2852. The sensor is connected via a 5m PTFE lead with ferrule ends.

The reduced tip probe design improves the speed of response to temperature fluctuations - a critical consideration for pasteurization applications.

The construction is waterproof, chemical resistant, wear resistant, and fabricated from standard food-industry materials. The probe and connecting wire will withstand frying temperatures.

Custom probe designs made to order.

SPECIFICATIONS

Type(s)

Pt100 3-wire temperature sensor
Class Class A accuracy (± 0.15 °C at 0 °C)
Temperature range Sensor and wire -50 to 260 °C
Process connection Triclamp sanitary fitting per ISO 2852
Wetted materials 316 Stainless Steel
Cable 5 metres PTFE lead with ferrule ends
