DYLY-104 S-Type Load Cell (300kg - 10 ton)
Product Resources
SKU:
INL-S-191-01
$225.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like

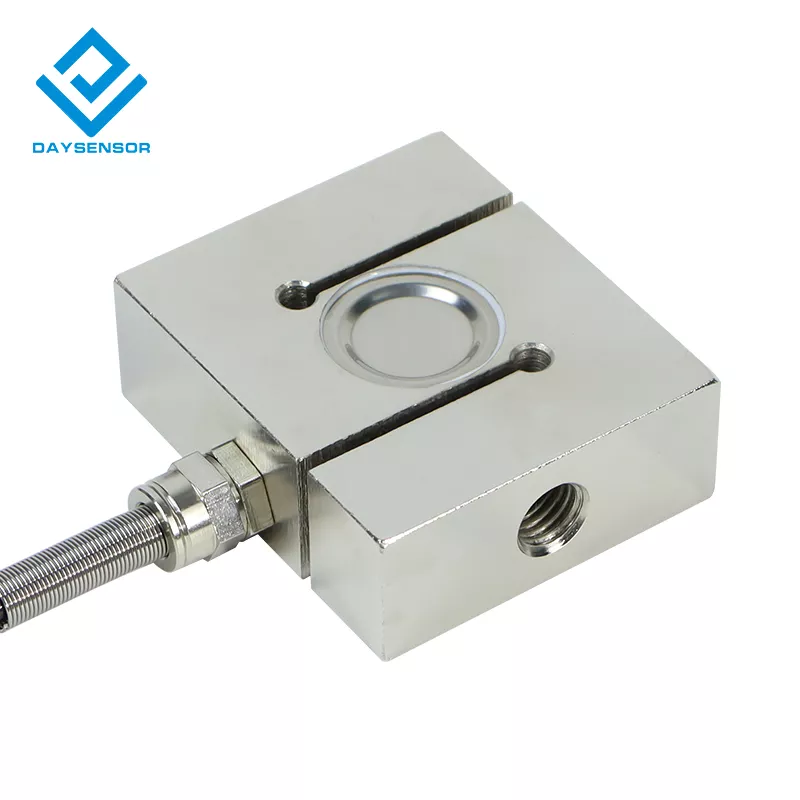

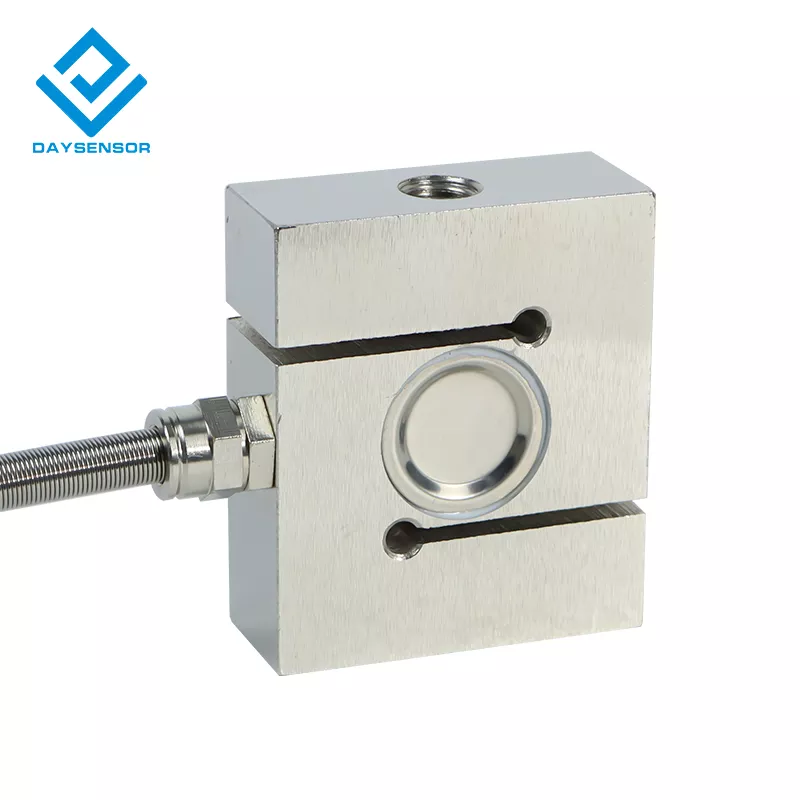

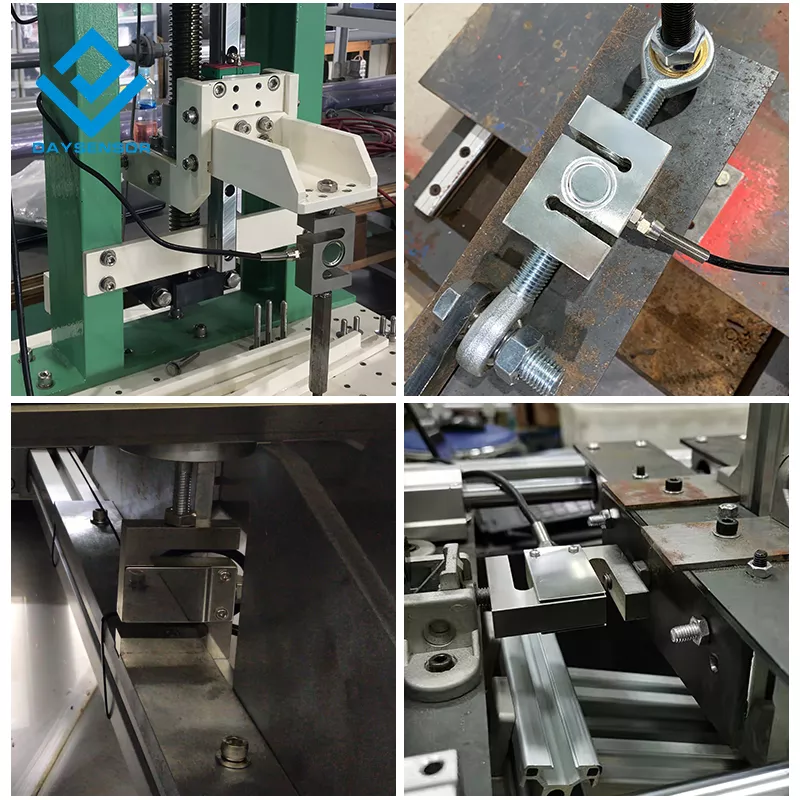

The DYLY-104 S-Type Load Cell is a high-accuracy, heavy-duty force sensor designed for tension and compression measurements in demanding industrial applications, such as weighing systems, material testing machines, and process control systems. This robust sensor is constructed from alloy steel for exceptional durability and stability.
Key Features:
- Measures force in tension and compression.

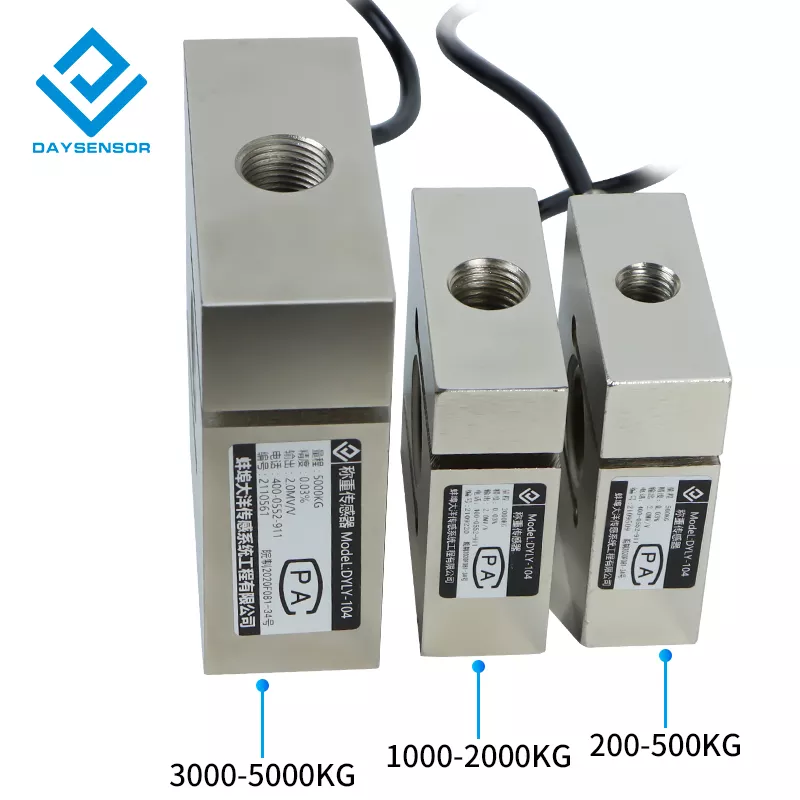

- Wide range of capacities available, from 0.3 to 10 tons.
- High accuracy and stability, with non-linearity of 0.05%FS.
- Operating temperature range: -20°C to +80°C.
- Simple installation with female threaded ends.
Technical Specifications:
| Parameter | Value |
| Range | 0.3~10 ton (according to selection) |
| Measurement Type | Tension or compression |
| Mounting | S-type load cell with female thread (M12~M30) |
| Material | Alloy Steel |
| Operating Temperature Range | -20~80 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Frequency Response | 10 kHz |
| Output Sensitivity | 2.0 mV/V |
| Excitation Voltage | 5~15 Vdc |
| Impedance | 350 Ω |
| Insulation Resistance | ≥5000 MΩ @100 Vdc |
| Cable | 5 core. 0-2T/2m, 2-10T/5m |
| Creep (30 min) | 0.05 %FS |
| Zero Point | ±1 %FS |
| Non-linearity | 0.05 %FS |
| Repeatability | 0.03 %FS |
| Zero point Temperature Drift per 10 °C | 0.05 %FS |
| Sensitivity Temperature Drift per 10 °C | 0.05 %FS |
Dimensions:
|
Range |
M |
H |
L2 |
L1 |
|
200~500kg |
M12x1.75 |
70 |
25 |
60 |
|
700kg~1T |
M16x2 |
70 |
25 |
60 |
|
2T |
M16x2 |
70 |
25 |
64 |
|
3~5T |
M18x1.5 |
94 |
35 |
86 |
|
10T |
M30x2 |
137 |
60 |
110 |
