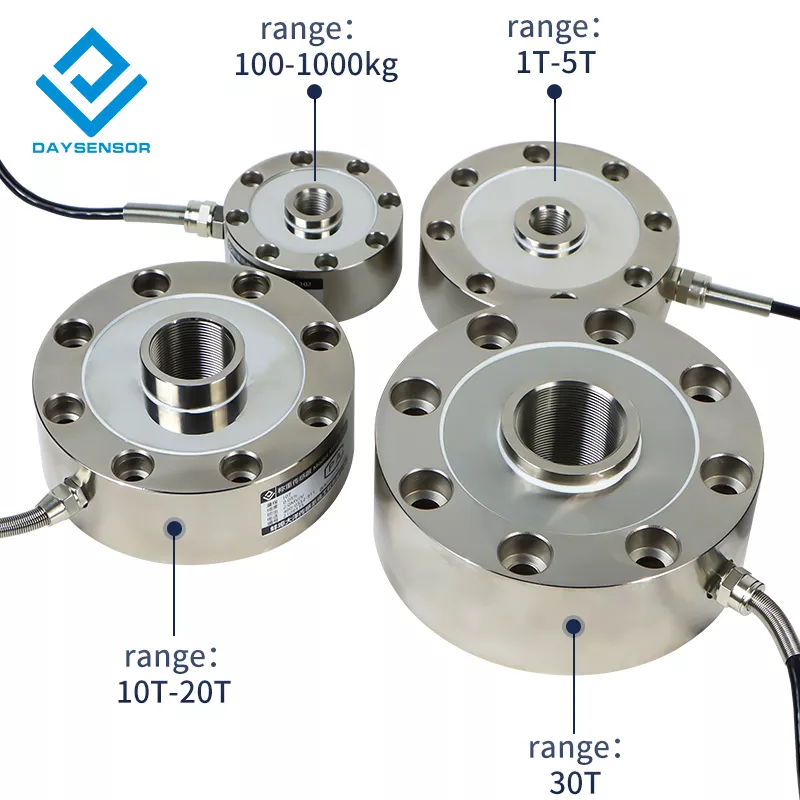

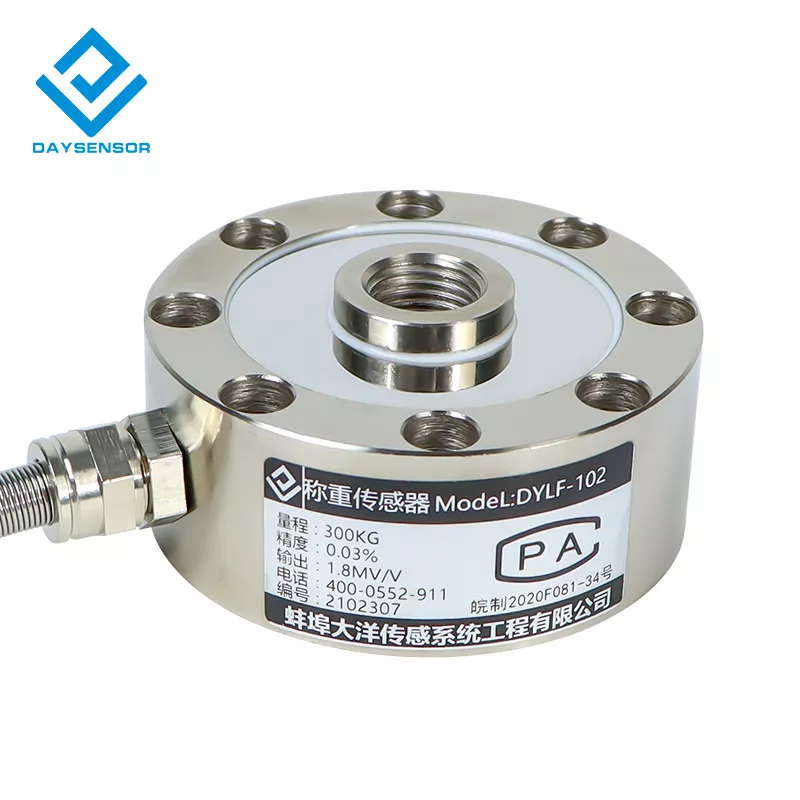

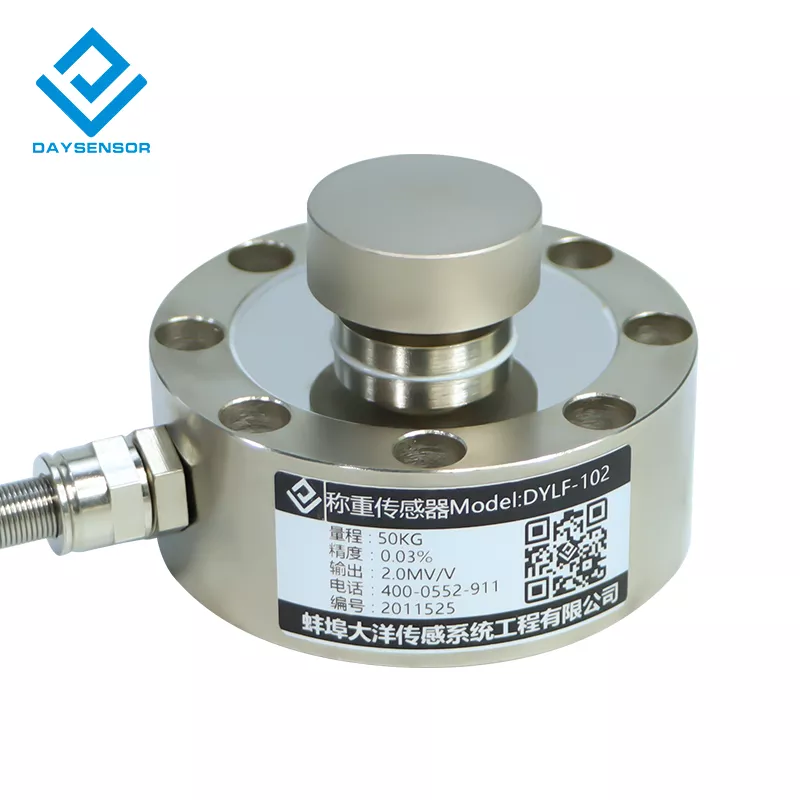

DYLF-102 Spoke Load Cell for High-Capacity Applications (50 kg - 500 ton)
Product Resources
SKU:
N/A
$450.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like
The DYLF-102 Spoke Load Cell is a high-precision, heavy-duty force sensor designed for accurate compression measurements in various industrial applications, particularly suited for high-capacity weighing systems, heavy machinery, material testing machines, and process control and monitoring in heavy industries. This robust sensor is constructed from alloy steel for enhanced durability and features a compact, low-profile design for easy integration into diverse systems.
Key Features:
- Measures force in compression.
- Wide range of capacities available, from 50 kg to 1000 tons.
- High accuracy and stability, with non-linearity of 0.05%FS.
- Operating temperature range: -20°C to +80°C.
- Simple installation with threaded ends.
- Strong resistance to partial load and lateral force.
Technical Specifications:
| Parameter | Value |
| Range | 50 kg - 500 ton (according to selection) |
| Measurement Type | Compression |

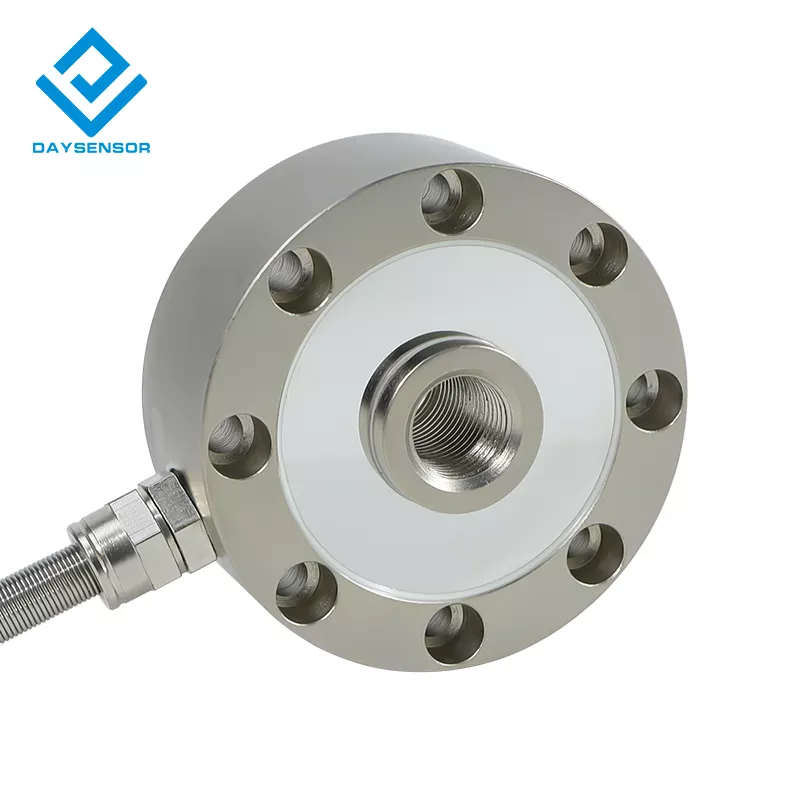

| Mounting | Round load cell with female thread |
| Material | Alloy Steel |
| Operating Temperature Range | -20~80 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Frequency Response | 10 kHz |
| Output Sensitivity | 2.0 ±10% mV/V |
| Excitation Voltage | 5~15 Vdc |
| Impedance |
20-1000kg: 700/1400Ω; 1-30T: 700Ω; 50-500T: 1400Ω |
| Insulation Resistance | ≥5000 MΩ @100 Vdc |

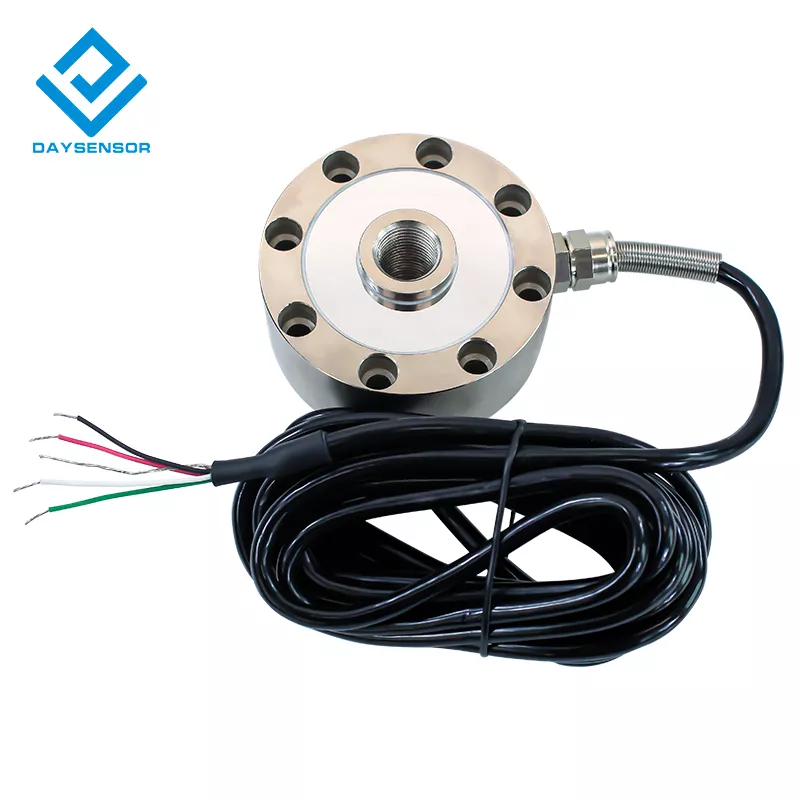

| Cable | 5 core x 3m |
| Creep (30 min) | 0.03 %FS |
| Zero Point | ±1 %FS |
| Non-linearity | 0.05 %FS |
| Hysteresis | 0.05 %FS |
| Repeatability | 0.03 %FS |
| Zero point Temperature Drift per 10 °C | 0.03 %FS |
| Sensitivity Temperature Drift per 10 °C | 0.03 %FS |
Dimensions:
