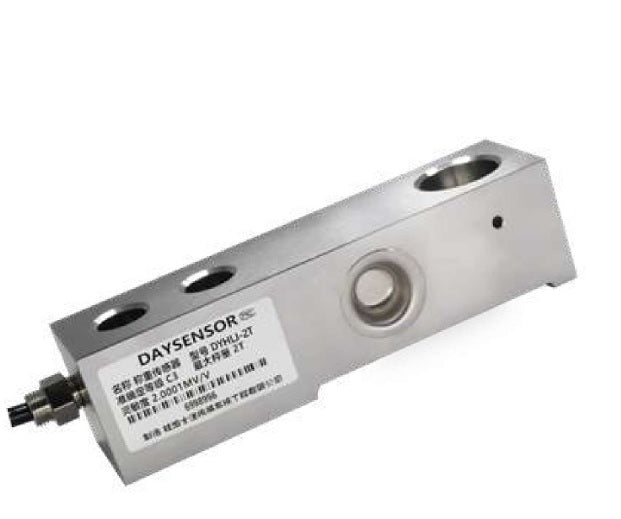

DYHLJ Shear Beam Load Cell (200 kg - 5 ton)
Product Resources
SKU:
INL-H-212-11
$425.00
Out of Stock | Backorders available (ETA 3-weeks)
You may also like
The DYHLJ Shear Beam Load Cell is a robust and versatile force sensor designed for a variety of industrial weighing and measurement applications. Its shear beam design and durable construction ensure accurate and reliable performance in demanding environments. This load cell is ideal for applications such as truck scales, platform scales, and material testing machines.
Key Features
- Measures force in tension and compression.
- Wide range of capacities available, from 0.25 to 5 tons.
- High accuracy and stability.
- Alloy steel or stainless steel construction for durability.
- Operating temperature range: -20°C to +80°C.
- Simple installation with threaded ends.
Technical Specifications
| Parameter | Value |
| Range | 250 kg - 5 ton |
| Measurement Type | Tension and Compression |
| Material | Alloy Steel / Stainless Steel |
| Operating Temperature Range | -20 - 80 °C |
| Safe Overload | 150% |
| Extreme Overload | 200% |
| Output Sensitivity | 2.0 ± 0.05 mV/V |
| Excitation Voltage | 5 - 15 Vdc |
| Impedance | 350 Ω |
| Insulation Resistance | ≥ 5000 MΩ / 100 VDC |
| Cable | 5 core x 3m |
| Creep (30 min) | 0.03 %FS |
| Zero Point | ± 1 %FS |
| Non-linearity | 0.03 %FS |
| Hysteresis | 0.03 %FS |
| Repeatability | 0.02 %FS |
| Zero point Temperature Drift per 10 °C | 0.05 %FS / 10 °C |
| Sensitivity Temperature Drift per 10 °C | 0.03 %FS / 10 °C |
| Response Frequency | 10 kHz |
| TEDS | Selectable |
Dimensions
| Range (ton) | 0.25/0.5/1 | 2 | 3 | 5 |
| D | 12.7 | 12.7 | 15 | 19 |
| D1 | 22 | 22 | 22 | 35 |
| D2 | 15.9 | 15.9 | 15.9 | 22 |
| D3 | 3.1 | 3.1 | - | 3.1 |
| H | 30 | 36.6 | 36.6 | 43 |
| H1 | 1.9 | 2.8 | 1.2 | 2 |
| H2 | 17 | 23 | 23 | 29 |
| H3 | 15.9 | 19.6 | 19.6 | 23 |
| H4 | 4.7 | 9.5 | 9.5 | 11 |
| H5 | 7.7 | 1 1.7 | 1 1.7 | 1 1.7 |
| H6 | 0.38 | 0.82 | - | - |
| L | 133 | 137 | 140 | 171 .5 |
| L1 | 57.6 | 57.9 | 57.9 | 74 |
| L2 | 102 | 102 | 105 | 133 |
| L3 | 25.4 | 25.4 | 25.4 | 38 |
| L4 | 15.4 | 18. 4 | 18.4 | 22 |
| L5 | 6.4 | 6.4 | - | - |
| W | 30.7 | 36.8 | 39 | 43 |
| W1 | 5.2 | 6 | 6 | 6 |
